Create national “chip” with the efforts of Zhiyuan Electronics

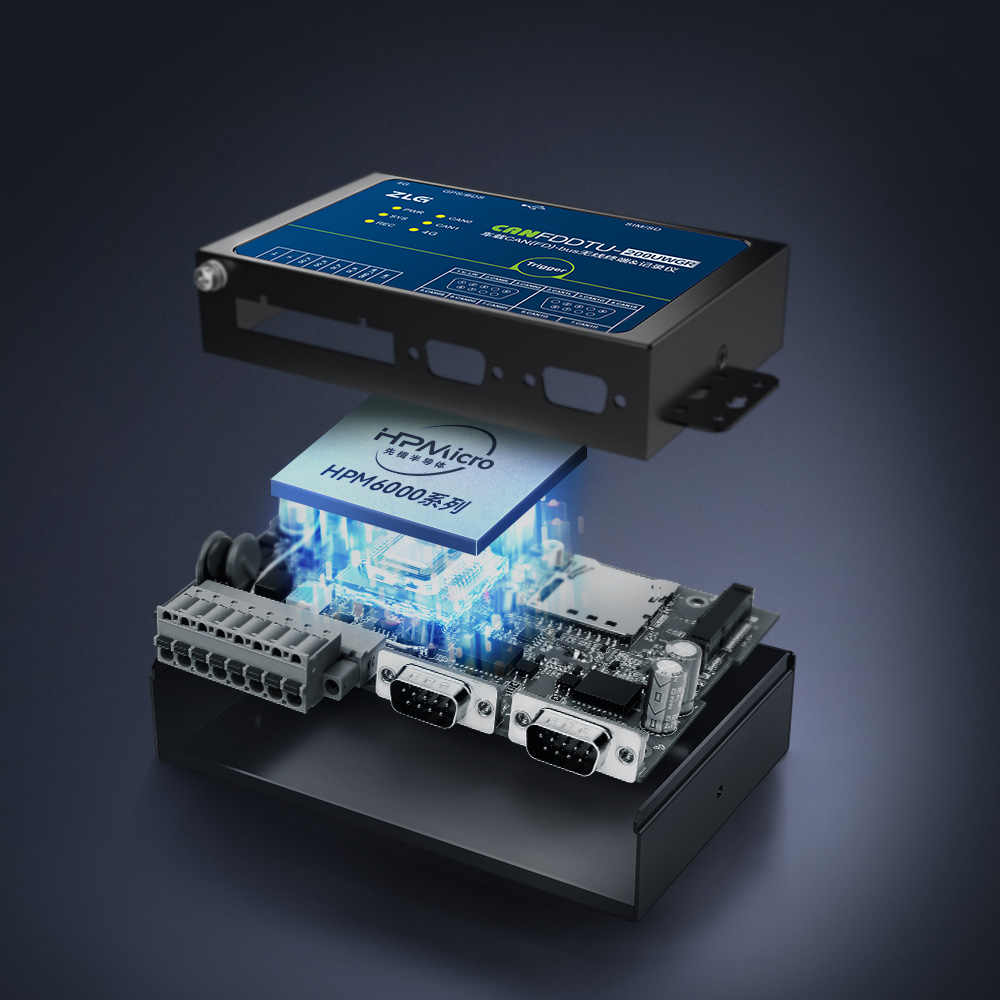

CANFDDTU-200 series data storage instrument adopts ultra-high performance dual RISC-V core microcontroller of HPMicro in China, and supports double-precision floating-point operation and powerful DSP extension. The basic frequency is up to 816MHz. With the high-strength support of HPM series chips, the performance of CANFDDTU-200 series is guaranteed!

CAN FD+LIN, a “black box” for automobiles

Domestic CANFDDTU-200 series is equipped with 2-channel CANFD and 1-channel LIN bus interface, and it can record and store bus data (9 file formats including asc and blf) for a long time, with a maximum capacity of 256GB. It is a real “black box” for automobiles when used together with ZXDoc automobile bus tool chain developed by Zhiyuan Electronics!

Device data export by wireless WiFi

CANFDDTU-200UR can upload files to the corresponding server without wiring as long as it is connected to the computer’s WiFi. It can export the stored data anytime and anywhere, and get rid of the trouble of plugging unplugging the SD card!

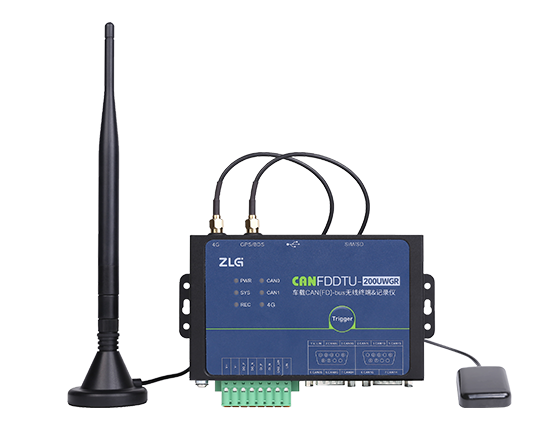

4G real-time remote transmission data

CANFDDTU-200UWGR collects and uploads CAN(FD) and LIN bus information in real time such as instrument, oil temperature, oil pressure and motor speed of road test vehicles to the server through 4G communication. Engineers can check the road test data of vehicles “at a far distance” and issue instructions to control vehicles.

Precise positioning of global GPS/Beidou

CANFDDTU-200UWGR is equipped with a GPS positioning module, which can optimize the trajectory algorithm in real time, quickly obtain the real-time speed, longitude and latitude position information of the vehicle and upload it to the designated server!

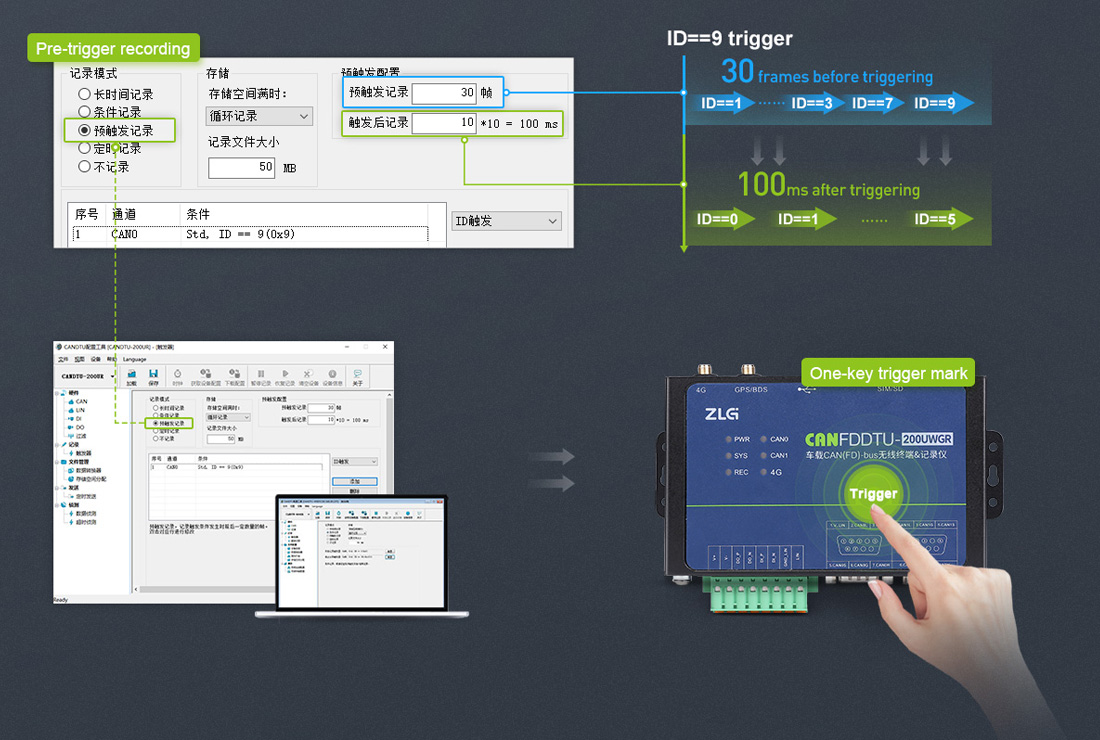

Multiple trigger modes quickly position accidental faults

CANFDDTU-200 series provides Trigger button that can mark bus message data in real time and position the faults quickly. Meanwhile, the trigger can be configured with multiple different recording modes. Users can arbitrarily switch long time recording, pre-trigger recording, timed recording and non-recording modes according to their requirements.

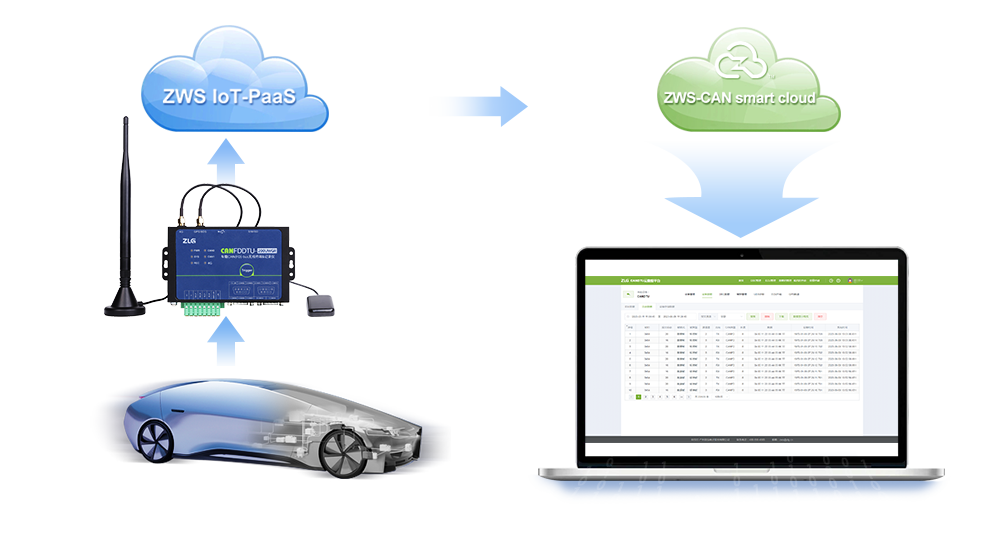

ZWS-CAN smart cloud empowerment

ZWS-CAN smart cloud platform is adapted to CANDTU series device, integrates remote data acquisition, cloud analysis and cloud debugging, and improves the efficiency of road test. Learn more
