High-performance RS232/485/422 to CAN FD device

CAN FD (CAN Flexible Data-rate), the latest upgrade of CAN bus, has the longest data of 64 bytes and the Baud rate of flexible data domain up to 5Mbps.

CANFDCOM series product, a high-performance CAN FD intelligent protocol converter developed by Zhiyuan Electronics, integrates 1 CAN FD interface, and supports ISO CAN FD and BoschCANFD. Each interface has an independent 2500VDC electrical isolation protection circuit to prevent the interface card from being damaged by ground circulation and enhance the system reliability in a harsh environment.

CANFDCOM can quickly connect RS-232/485/422 communication device to CAN(FD)-BUS field bus, and support a serial Baud rate of 1200-921600bps and a communication rate of 40-5 Mbps CAN (FD)-bus. Meanwhile, it supports 4 conversion modes (transparent conversion, transparent band identification conversion, format conversion and Modbus conversion).

High-performance RS232/485/422 to CAN FD device

CAN FD (CAN Flexible Data-rate), the latest upgrade of CAN bus, has the longest data of 64 bytes and the Baud rate of flexible data domain up to 5Mbps.

CANFDCOM series product, a high-performance CAN FD intelligent protocol converter developed by Zhiyuan Electronics, integrates 1 CAN FD interface, and supports ISO CAN FD and BoschCANFD. Each interface has an independent 2500VDC electrical isolation protection circuit to prevent the interface card from being damaged by ground circulation and enhance the system reliability in a harsh environment.

CANFDCOM can quickly connect RS-232/485/422 communication device to CAN(FD)-BUS field bus, and support a serial Baud rate of 1200-921600bps and a communication rate of 40-5 Mbps CAN (FD)-bus. Meanwhile, it supports 4 conversion modes (transparent conversion, transparent band identification conversion, format conversion and Modbus conversion).

Selection Table

Please drag the table left or right for viewing.

Model	CANFDCOM-100IE	CANFDSM-100
Number of CAN FD channels	1	1
Features	Metal shell	Embedded module Ultra-small chip packaging
Supply voltage	9~48V	3.3V
Industrial grade	√	√
Electrical isolation	√	√
CAN FD standard	ISO/Bosch	ISO/Bosch
Baud rate of CAN FD arbitration ID segment	40K~1Mbps	40K~1Mbps
Accelerated Baud rate of CAN FD data segment	100K~5Mbps	100K~5Mbps
Serial interface	Software selection of RS232/485/422	TTL level UART
Serial Baud rate	1200-921600bps	600~115200bps
Configuration interface	Fixed use RS232	UART
Data receiving capability	1200 frames/s (each channel)	1200 frames/s (each channel)
Data transmission capability	1200 frames/s (each channel)	1200 frames/s (each channel)
Interface card format conversion	Supported	Supported
Transparent conversion	Supported	Supported
Transparent band marker conversion	Supported	Supported
Custom tip binding and tail binding	-	-
120 Ω terminal resistance	Built-in and enabling	Added by user

Note: * In the case of single channel with 5Mbps and 0 byte data field.

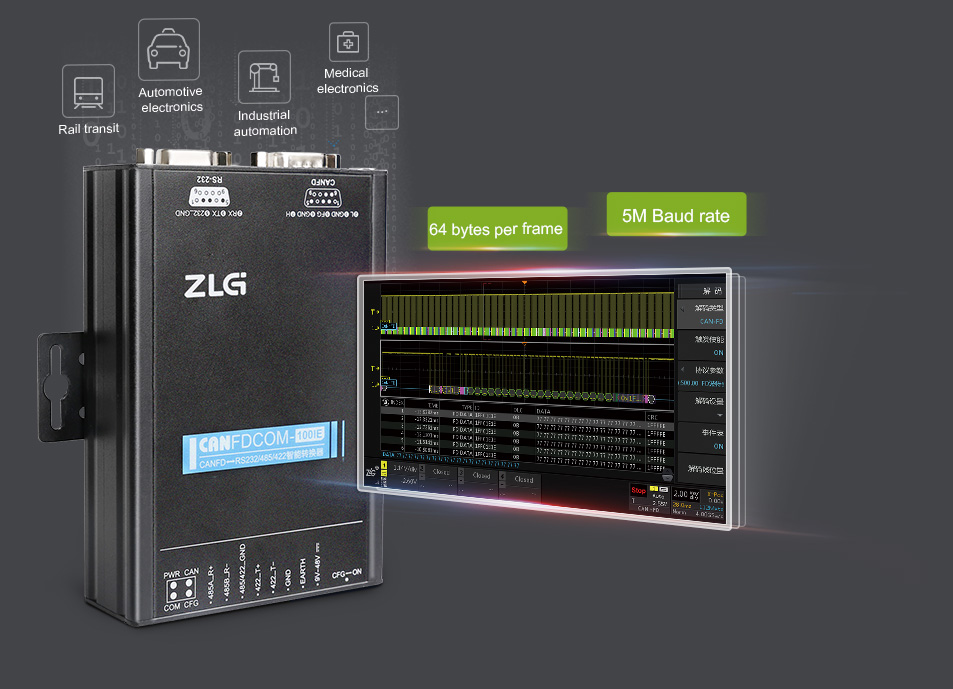

Support USB to CAN interface card under CAN FD protocol

CANFDCOM supports the CAN FD standard of ISO/Bosch, and is compatible with CAN2.0A/B mode. The Baud rate in the data domain can be configured up to 5Mbps, and the data length can be configured up to 64 bytes. The product can provide data load 40 times higher than that of CAN2.0A/B, as well as faster control and data channels for automotive electronics, rail transit, medical electronics, industrial automation, etc.

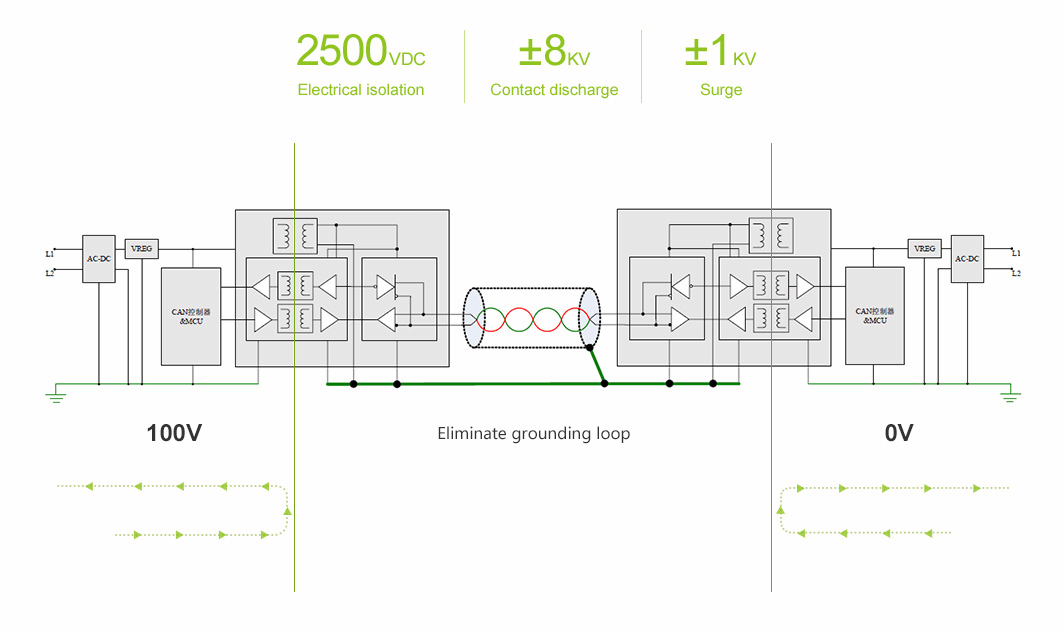

Up to 2500VDC signal isolation, preventing interface damage

CAN FD interfaces of CANFDCOM interface card have 2500VDC electrical isolation, with static electricity levels of contact discharge ±8KV and surge ±1KV, and can effectively avoid backflow damage caused by different node ground potentials. It is especially suitable for testing electric vehicles and trains.

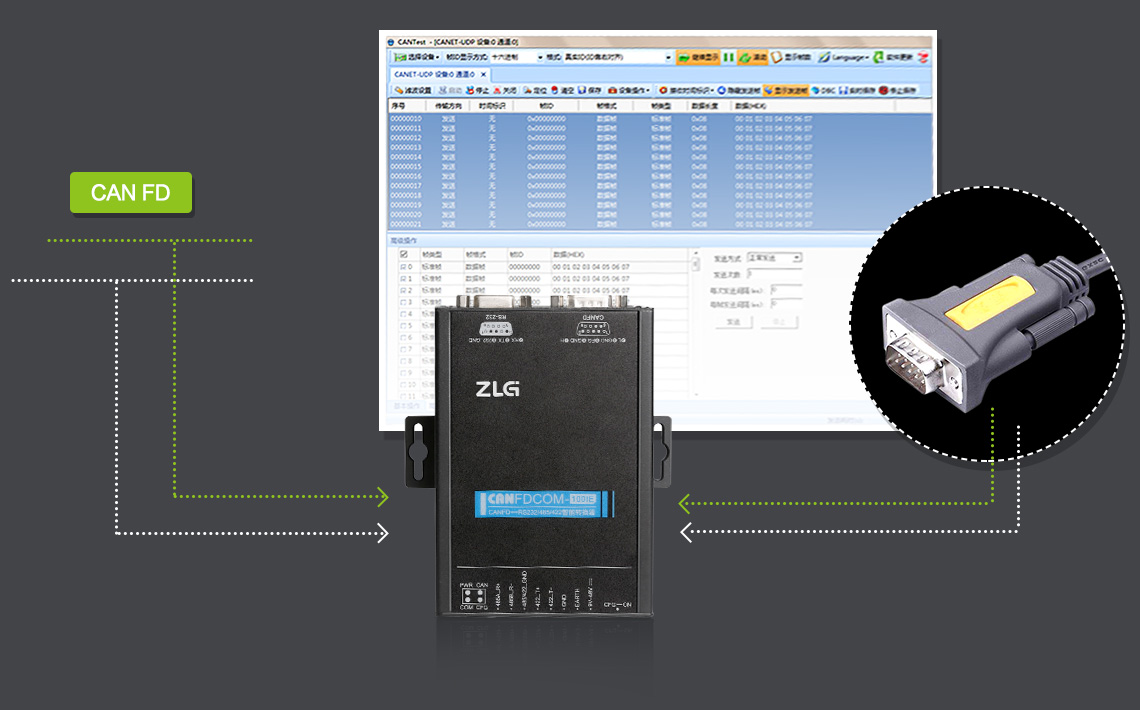

Operating CAN FD as conveniently as operating serial port

You don’t need to know anything about CAN FD, and you can operate CANFD as conveniently as operating serial port.

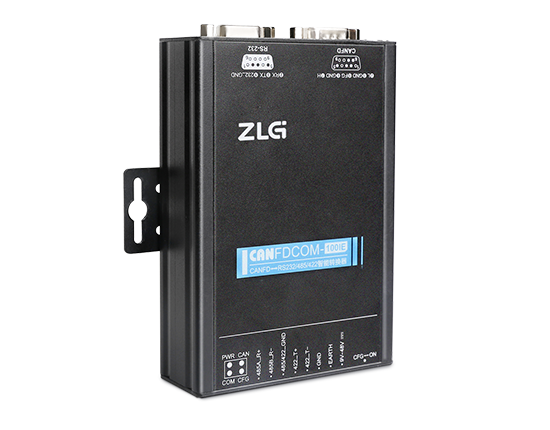

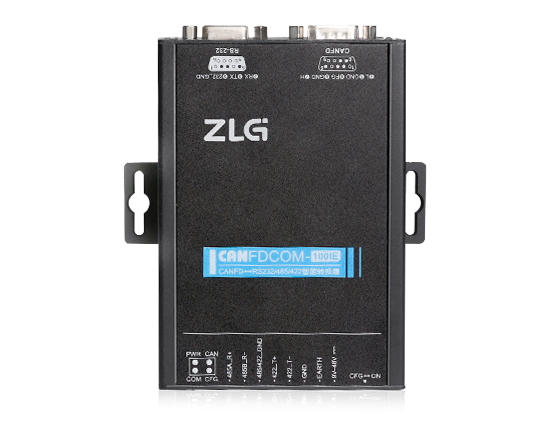

CANFDCOM-100IE supports RS-232/485/422 serial communication

Integrate 1 3-wire RS-232 communication interface, 1 2-wire RS-485 communication interface and 1 4-wire RS-422 communication interface. It can be set through a configuration software.

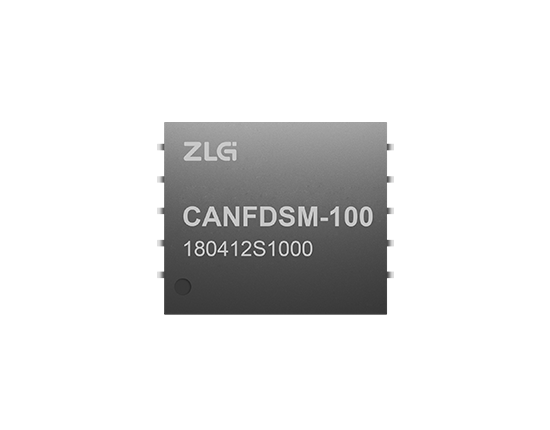

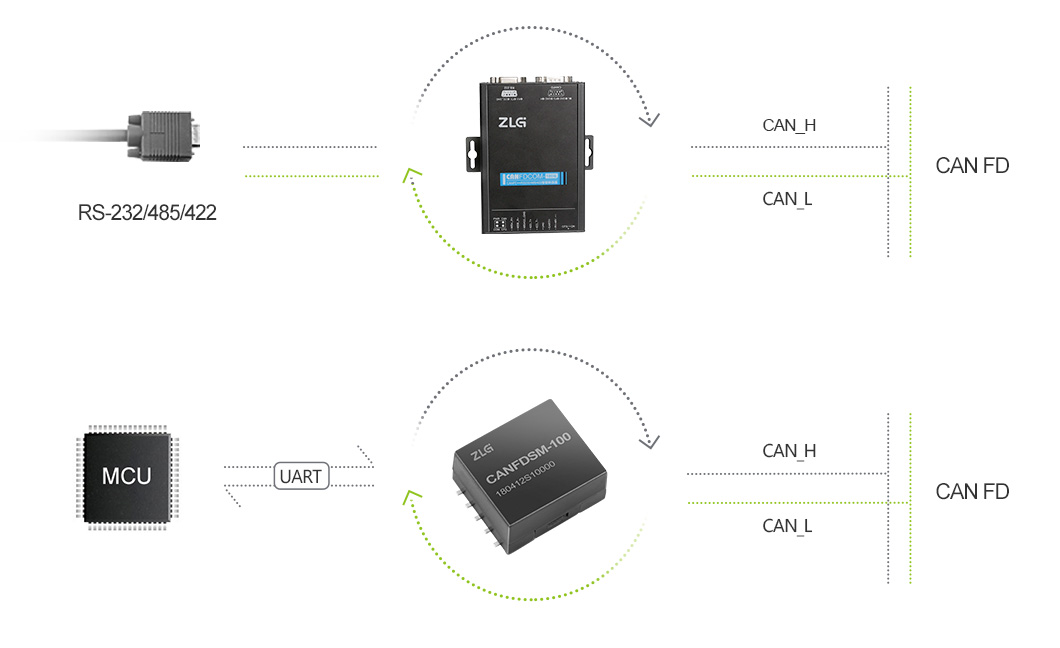

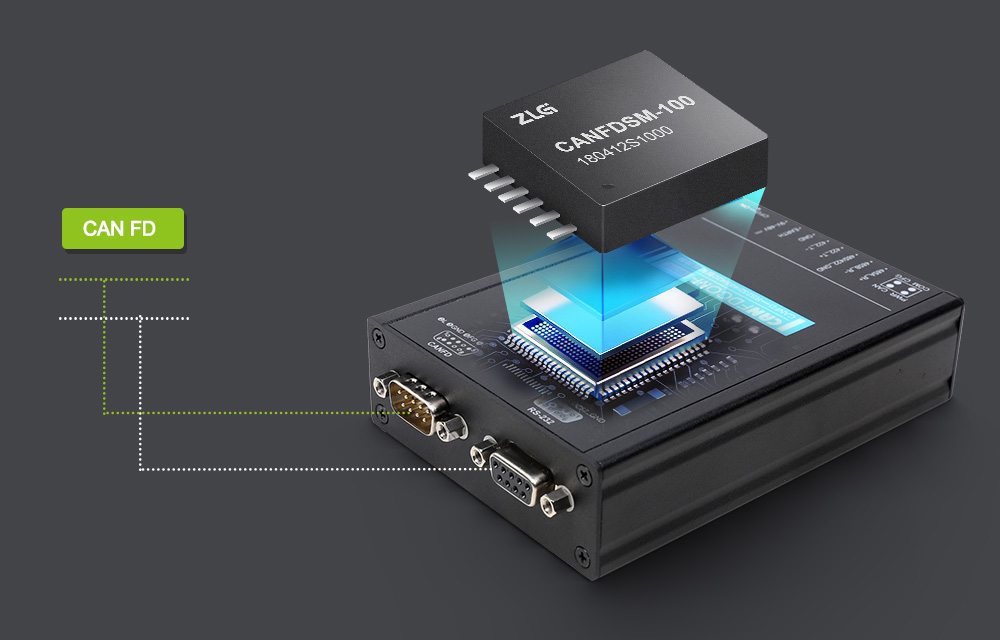

Provide embedded function module

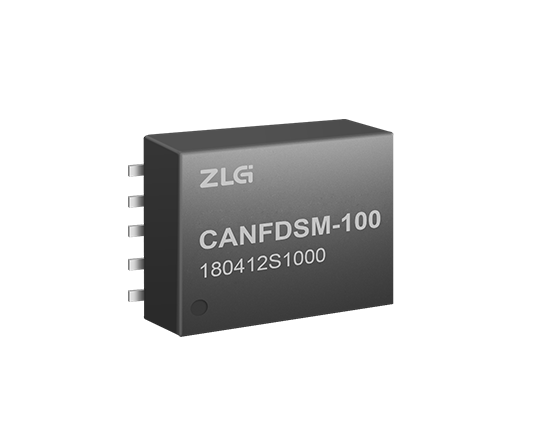

CANFDSM-100IE

It provides an embedded functional module CANFDSM-100IE, which can be conveniently embedded in the device.

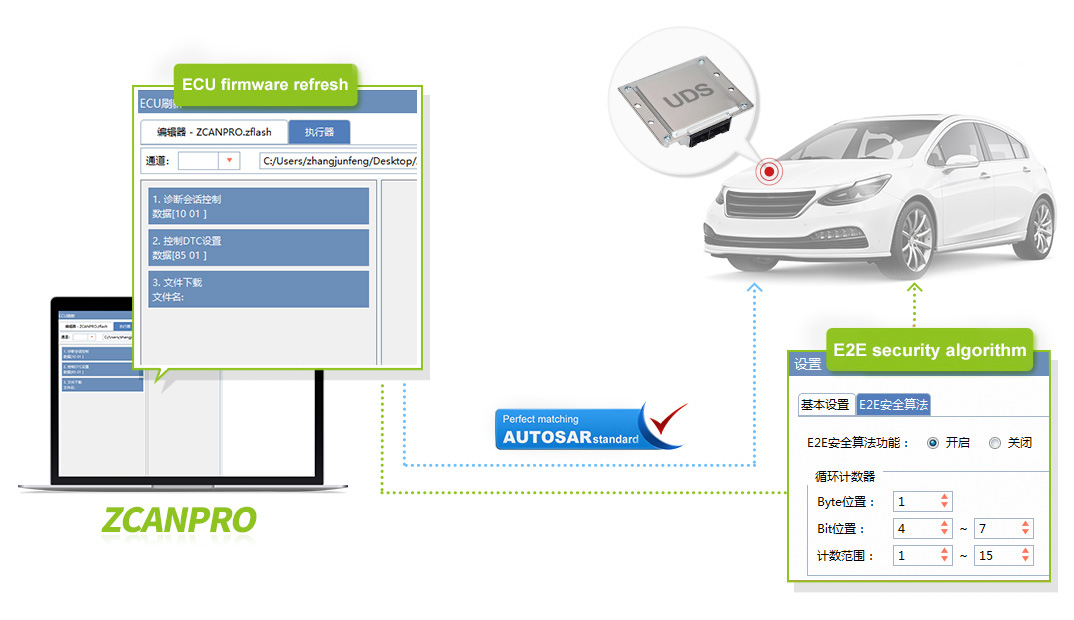

Support ECU refresh and E2E security algorithm, and match with AUTOSAR standard

ZCANPRO supports ECU refresh and E2E security algorithm, provides UDS protocol services, adds flashing files and applies actuators to easily complete ECU data security and fast refresh.
