CAN/CAN FD to CAN/CAN FD bridge

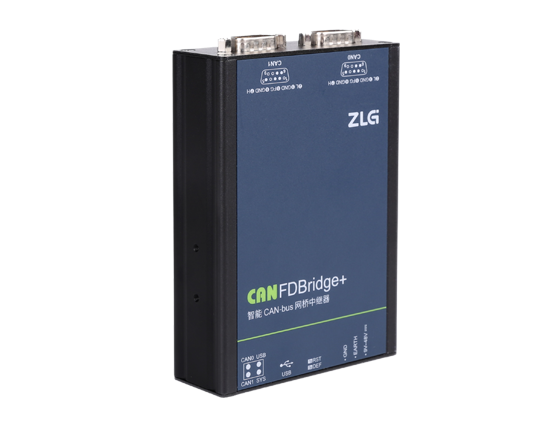

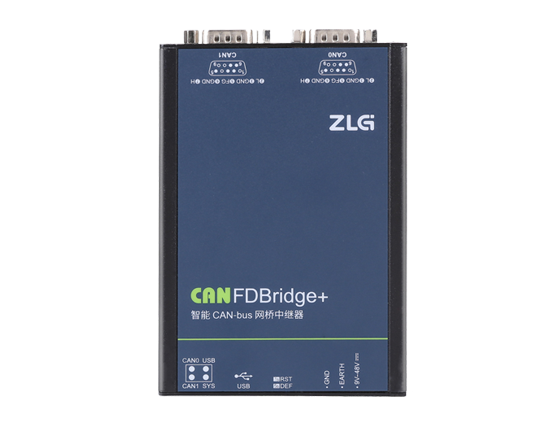

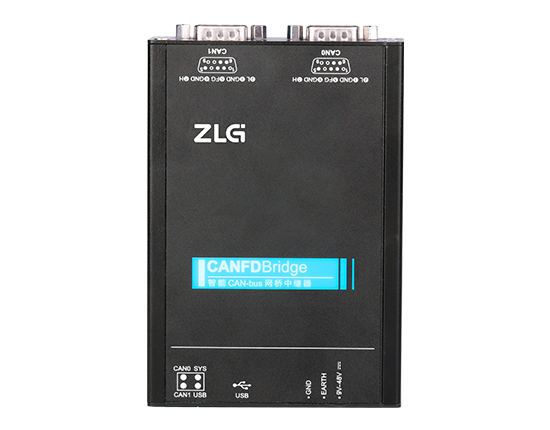

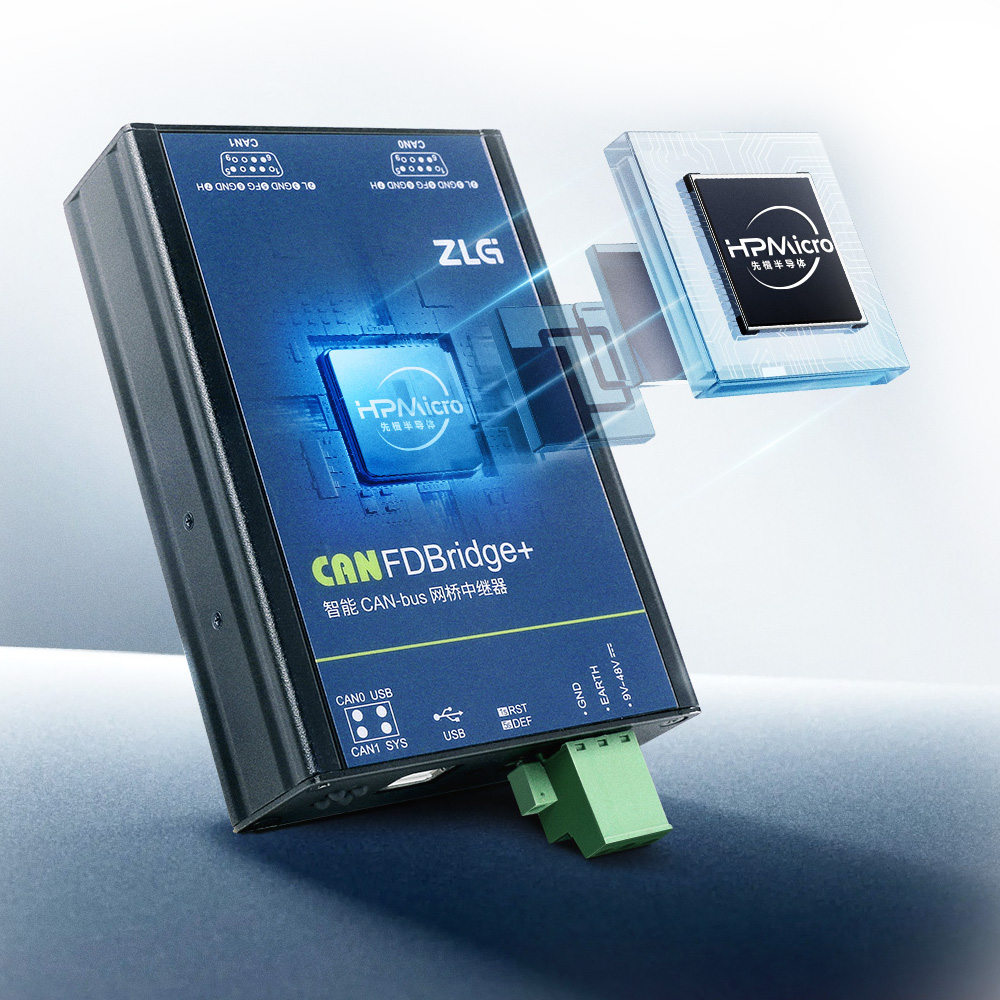

CANFDBridge, and CANFDBridge+ (domestic main control chips) are high - performance CAN(FD) intelligent protocol bridges developed by Guangzhou ZHIYUAN Electronics Co., Ltd. They integrate 2 switchable CAN(FD) interfaces.
CANBridge+ only supports the high - speed CAN standard, while CANFDBridge and CANFDBridge+ support both the ISO standard CAN FD and the Bosch CAN FD standard. Each interface is equipped with an independent 2500VDC electrical isolation protection circuit, which protects the interface card from damage caused by ground loop current and enhances the reliability of the system when used in harsh environments.

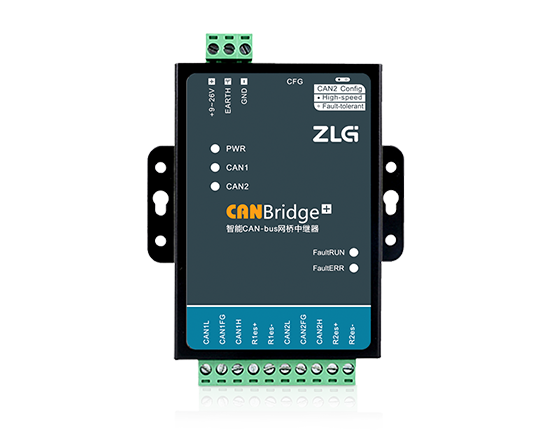

CANBridge+
(1) Add CAN bus nodes.
(2) Extend the communication distance of the CAN bus.
(3) Enhance the anti - interference ability of the CAN bus.
CANFDBridge、CANFDBridge+

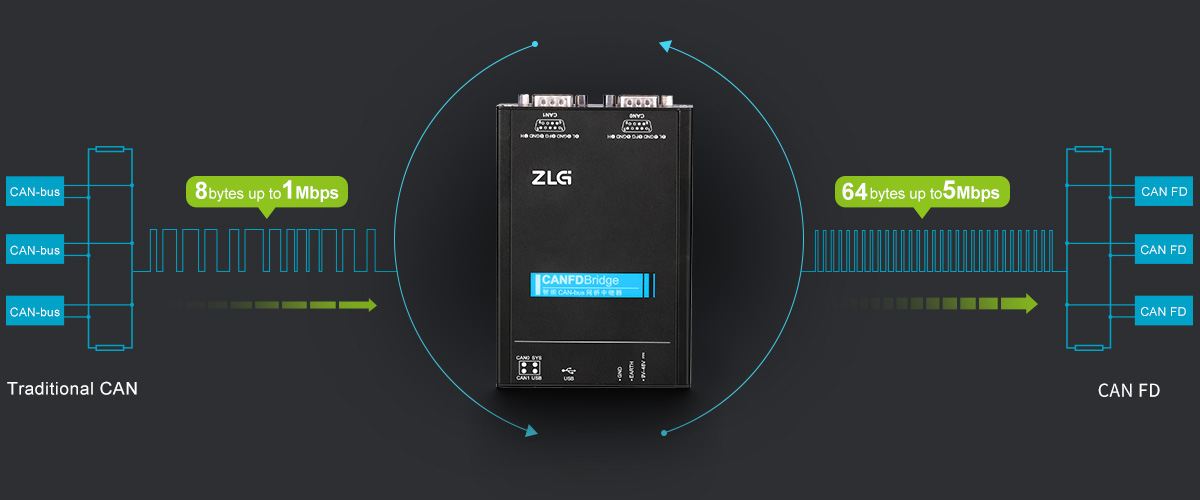

(1) Quickly connect traditional CAN - bus devices to the CAN FD bus;
(2) It can increase load nodes and extend the communication distance, achieving the function of network relay expansion;

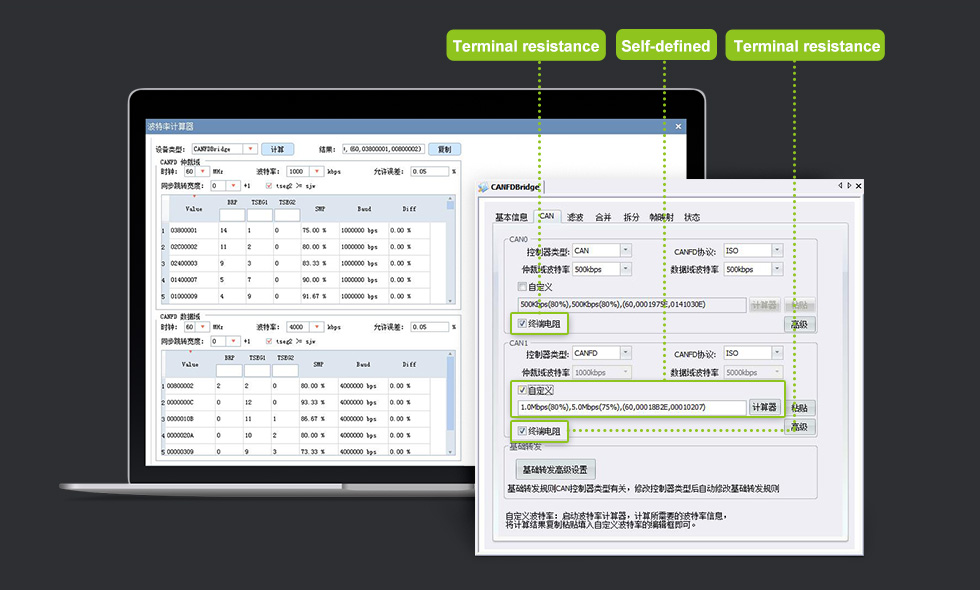

(3) Arbitrarily configure the communication baud rate of each channel to realize the interconnection of CAN(FD) networks with different communication baud rates;

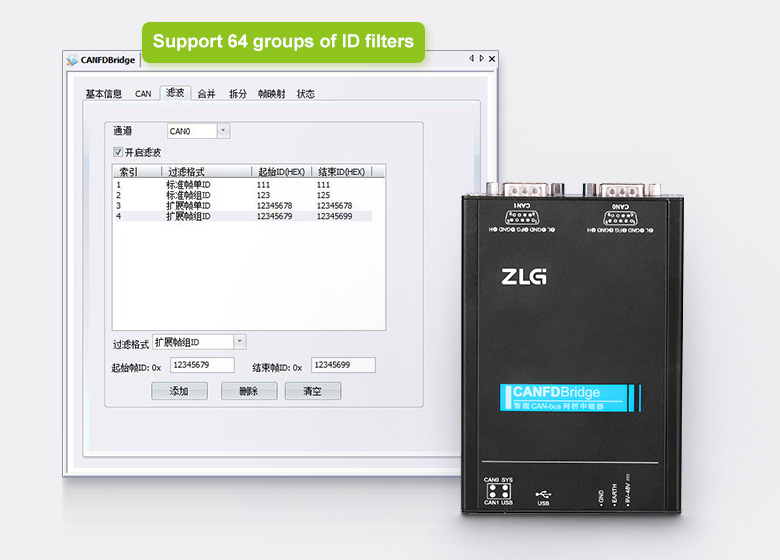

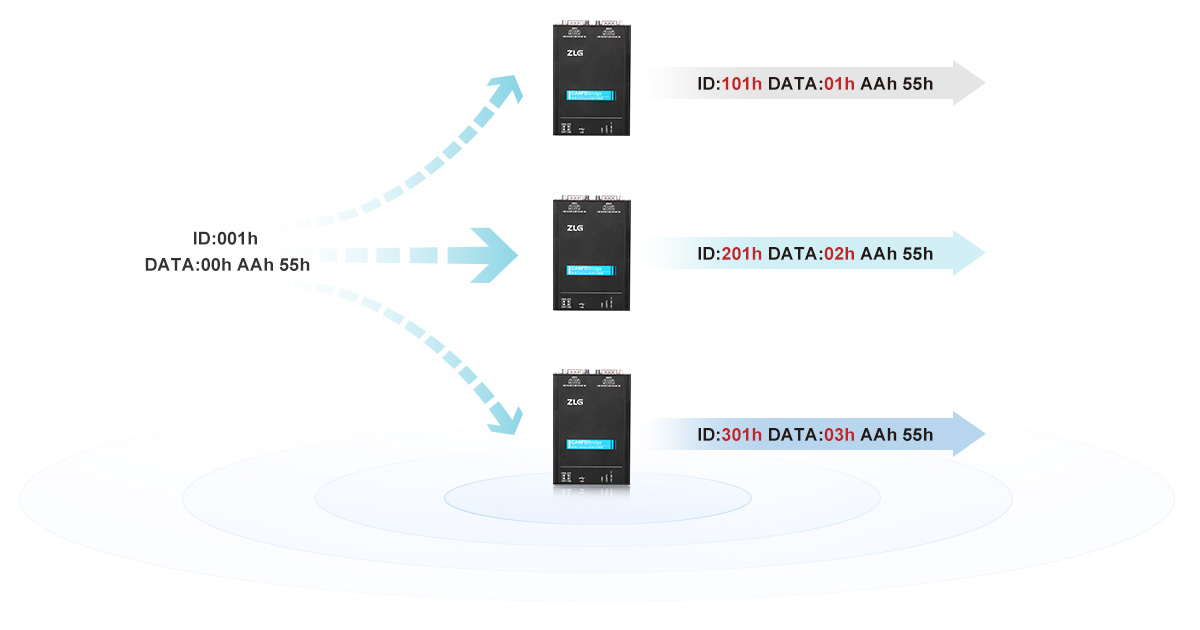

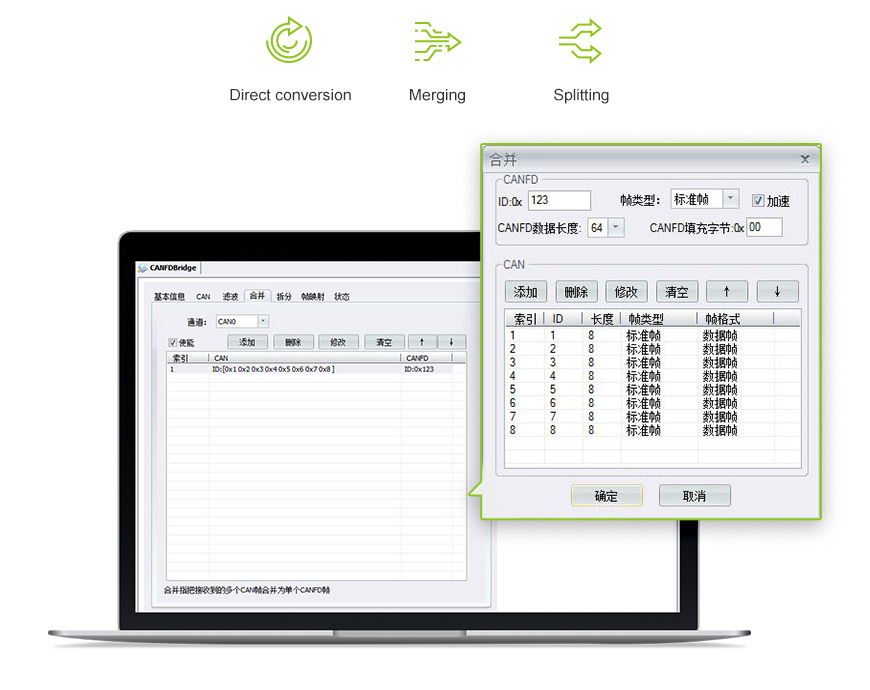

(4) This series of products has powerful ID filtering and conversion, and data conversion functions. Accurate acceptance ID configuration reduces the load of the CAN(FD) bus. Or change specific IDs and data to achieve the goals of eliminating interference data and differentiating different devices;
(5) It has a strong anti - interference ability, preventing users' devices from crashing due to interference.
