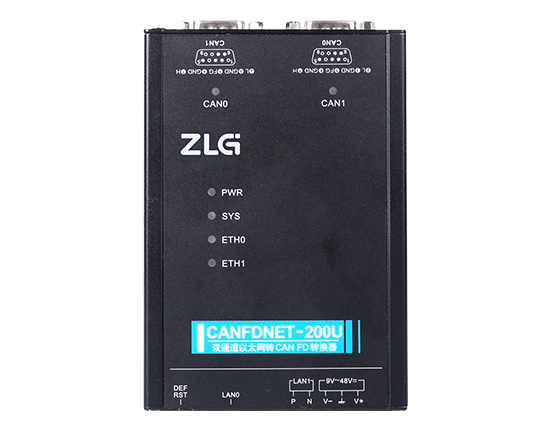

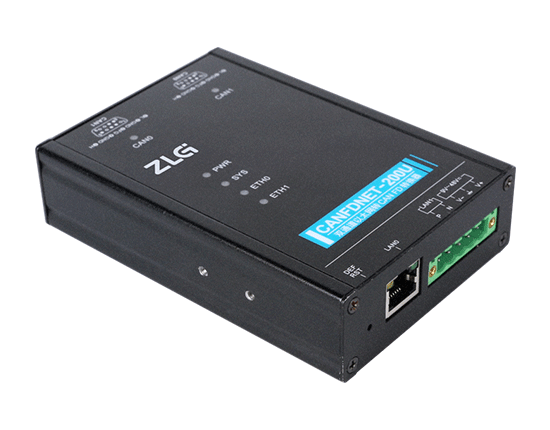

High-performance Ethernet to CAN FD device
CAN FD (CAN Flexible Data-rate), the latest upgrade of CAN bus, has the longest data of 64 bytes and the Baud rate of flexible data domain up to 5Mbps.

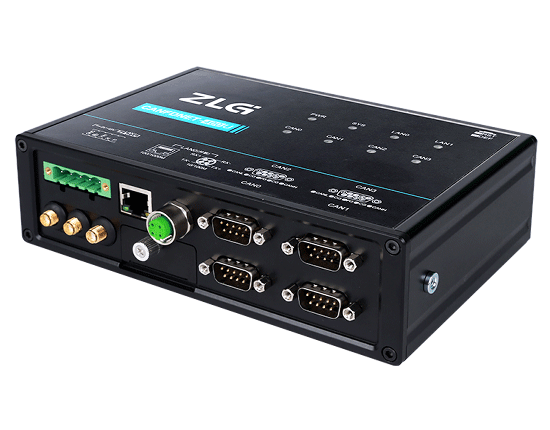

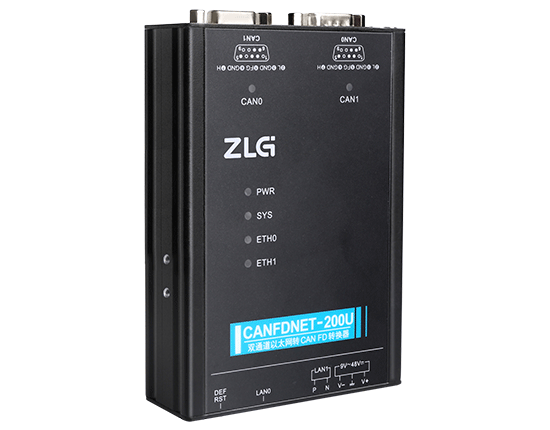

CANFDNET series products are high-performance industrial Ethernet and CAN(FD)-bus data conversion devices developed by Zhiyuan Electronics. It integrates 1-8 CAN(FD)-bus interfaces, 1 common Ethernet interface and 1 automotive dual-wire Ethernet to meet the OPEN Alliance BroadR-Reach specification. CANFDNET series products can work in a temperature range of -40℃~85℃, and the maximum Baud rate of CAN FD is 5Mbps. Ethernet has various working modes such as TCP Server, TCP Client and UDP. Users can flexibly set relevant configuration parameters through a configuration software, and the device is equipped with mature and stable TCP/IP protocol stack. With this product, users can easily complete the interconnection and intercommunication between CAN(FD) network and Ethernet network, and further expand the scope of CAN-bus network.

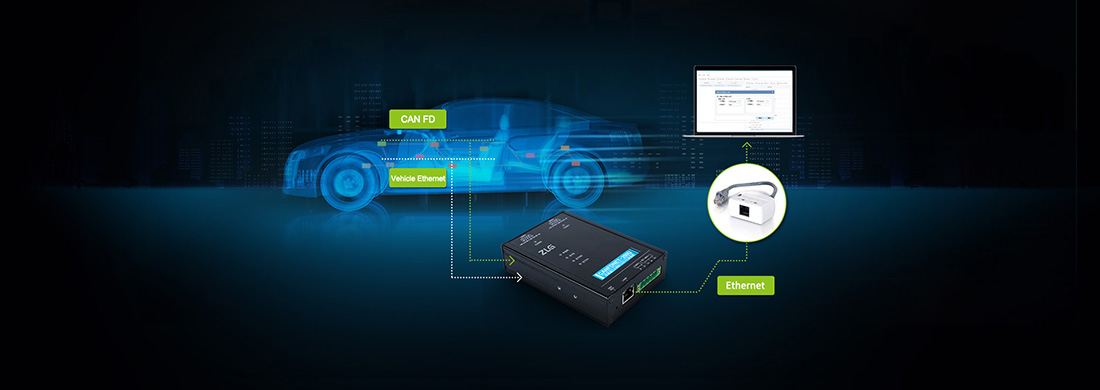

The first synthetic communication between CAN FD and Automotive Ethernet in China
CANFDNET is equipped with 1-channel vehicle-mounted dual-wire Ethernet, which can complete the data conversion from CANFD and Automotive Ethernet to common Ethernet in real time.

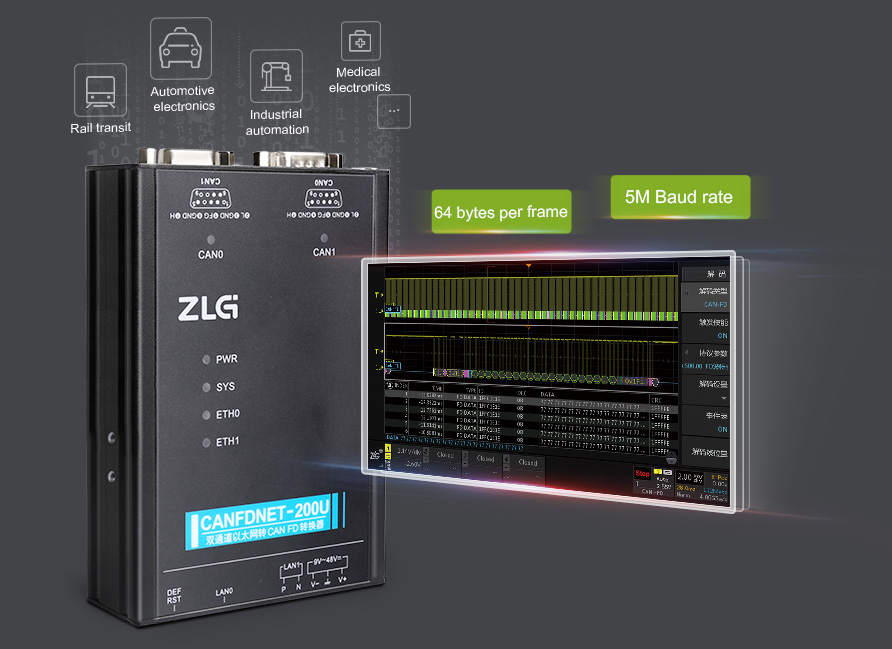

Support high-speed CAN FD compatible with CAN2.0A/B
CANFDNET series products support the CAN FD standard of ISO/Bosch, and they are compatible with CAN2.0A/B mode. The Baud rate in the data field can be configured up to 5Mbps, and the data length can be configured up to 64 bytes. They can provide data load 40 times higher than that of CAN2.0A/B, and offer faster control and data channels for automotive electronics, rail transit, medical electronics and industrial automation occasions.

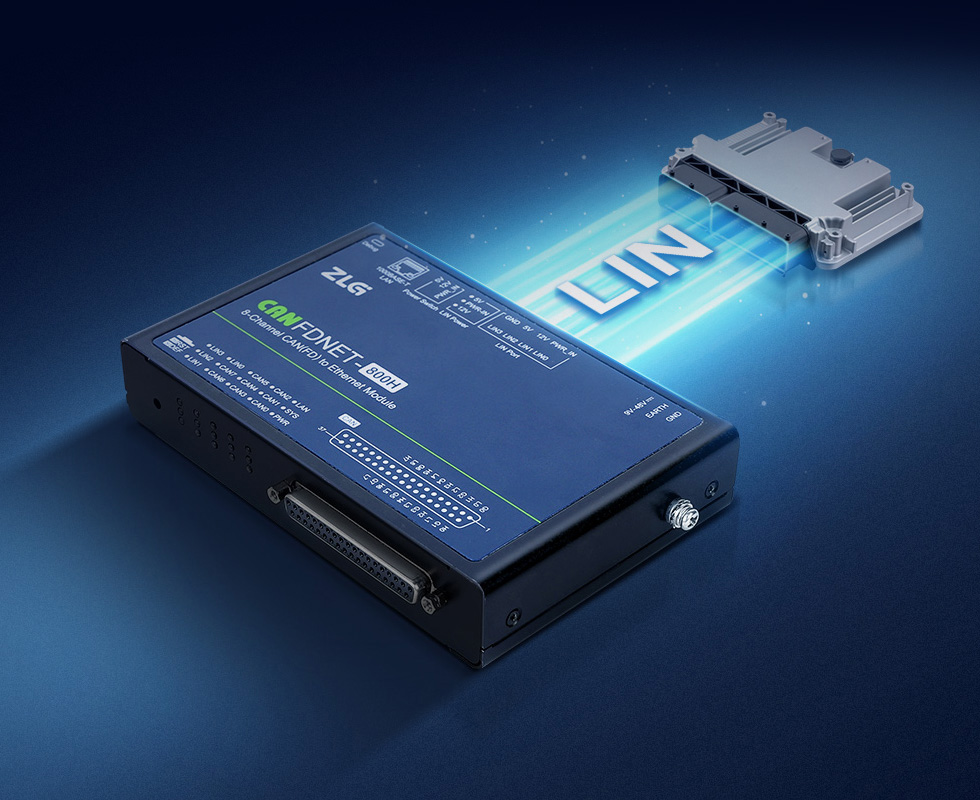

LIN power supply, self-sufficient with surplus capacity
CANFDNET-800H supports 5V and 12V self-power supply. It can also output power to LIN nodes, facilitating on-site testing.

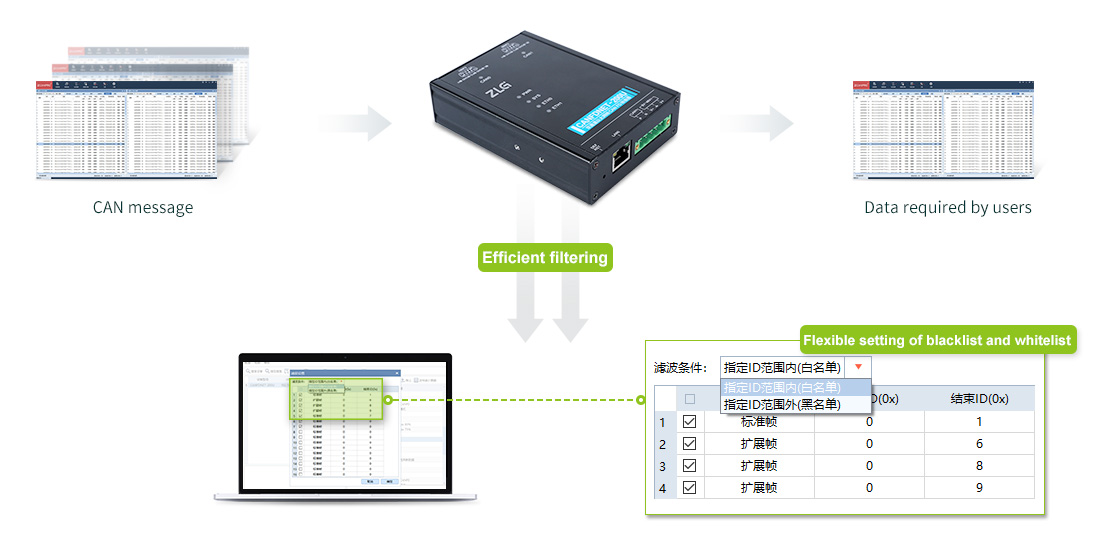

Blacklist and whitelist mode, improving data security
ZNetCom configuration tool supports efficient filtering for each channel. Users can flexibly set blacklists and whitelists based on required messages to achieve efficient data utilization.

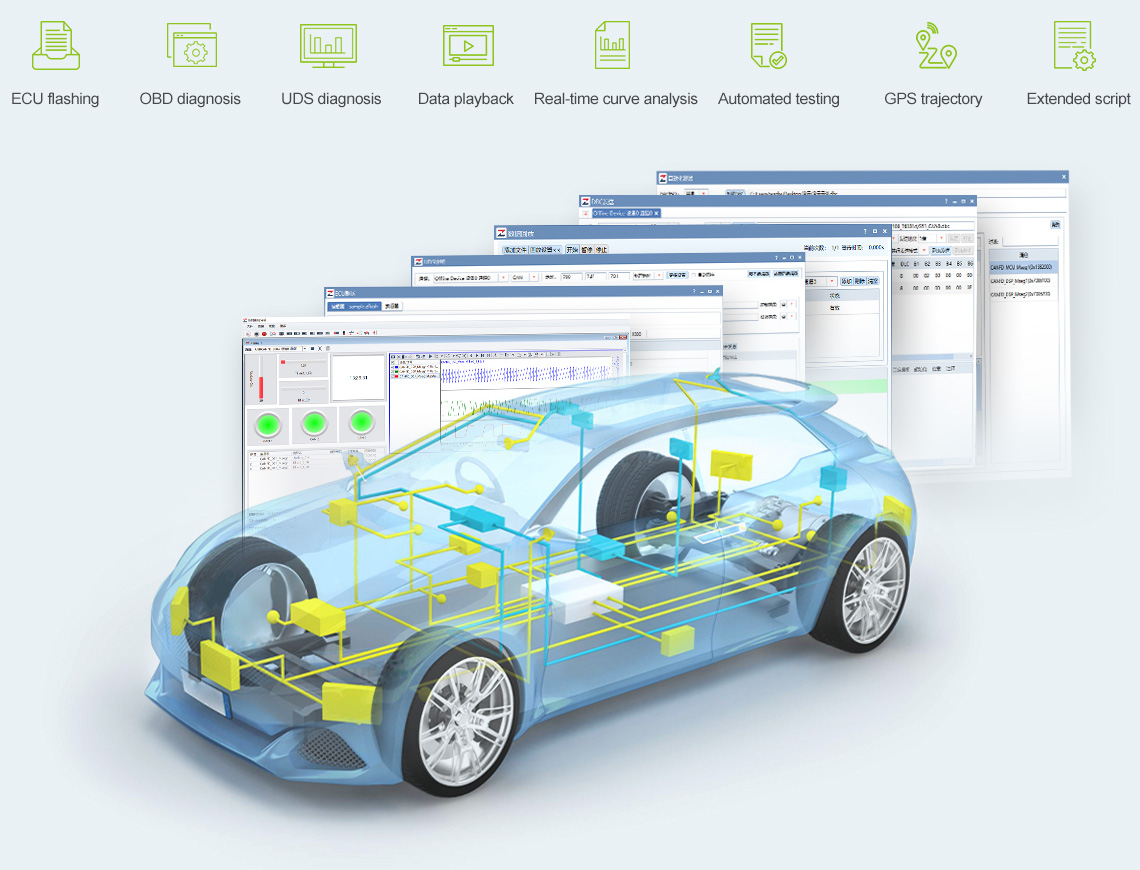

ZLG Bus Test & Analysis Software ZXDoc / ZCANPRO
ZLG ZXDoc/ZCANPRO software delivers full-process support for engineers engaged in architecture design, network planning, development and testing of CAN FD, CAN and LIN bus systems. Featuring high efficiency, comprehensive functions, easy operation and free access, it expands engineering possibilities, significantly cuts costs and boosts development efficiency.

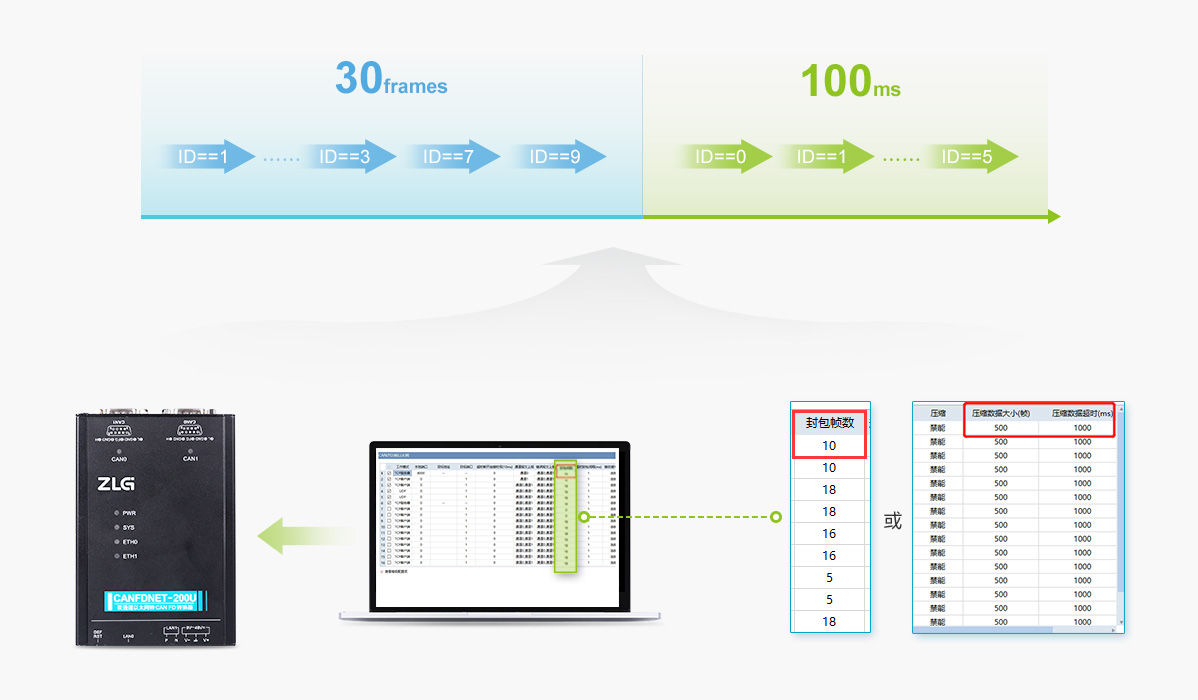

Customize framing/compression packaging to effectively reduce the load
CANFDNET series products support data framing or data compression and packaging settings of CAN FD interface (depending on the model), effectively reducing the network load.

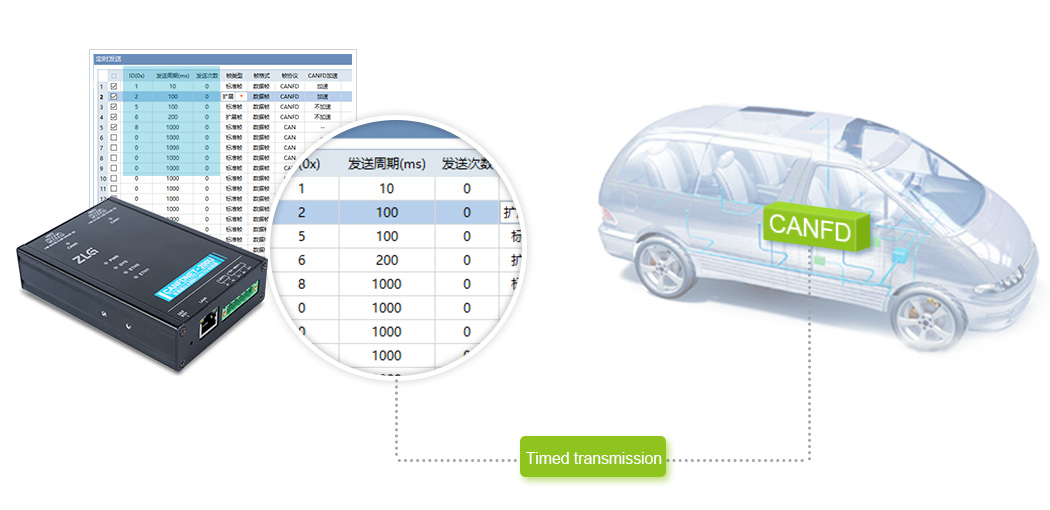

Millisecond-level timed transmission, meeting the requirement of high-precision testing
The device can be configured with millisecond-level message timed transmission. Users can freely set the period for sending 100 underlying precise timed frames, meeting the requirements for automotive electronic testing.

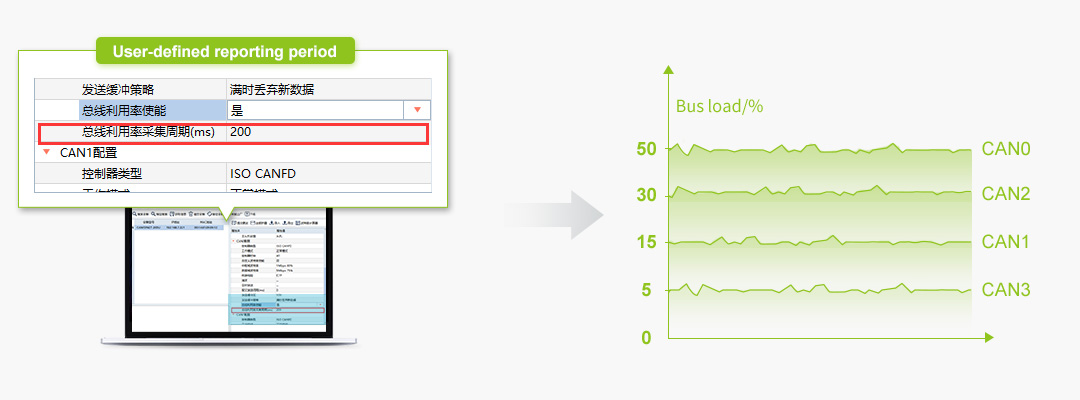

Flow load monitoring, providing bus security
CANFDNET series products support real-time reporting of bus utilization. Users can enable the reporting period of bus utilization in the configuration software, grasp the bus load information in real time, and prevent abnormal intrusion.

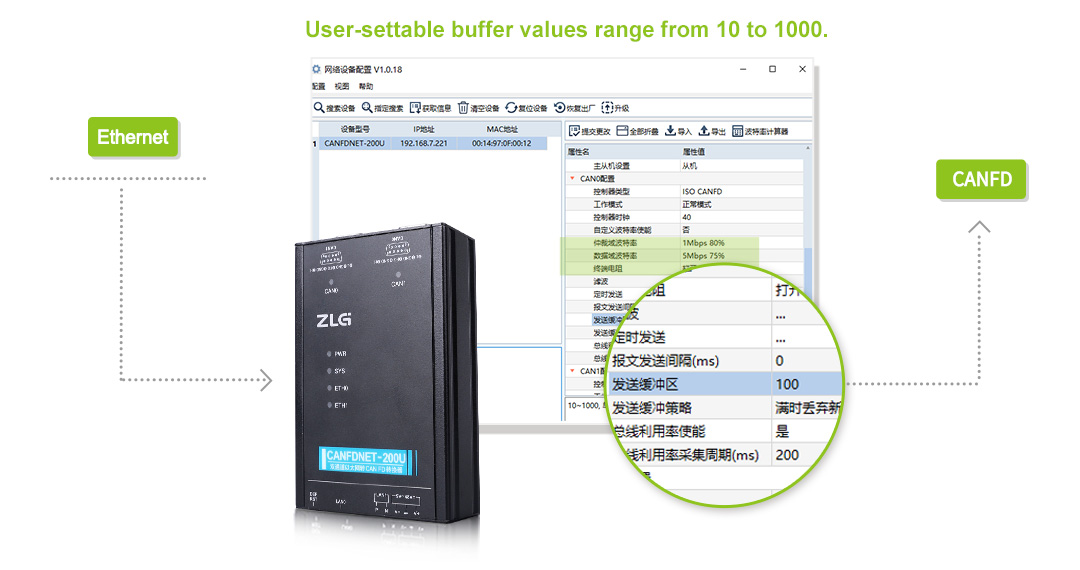

Flexibly adjust the on-board buffer to meet different application environments
Users can flexibly set the message sending buffer of CAFDNET series products, and freely adjust the balance between real-time performance and large-capacity buffer of CAN FD channel according to requirements.

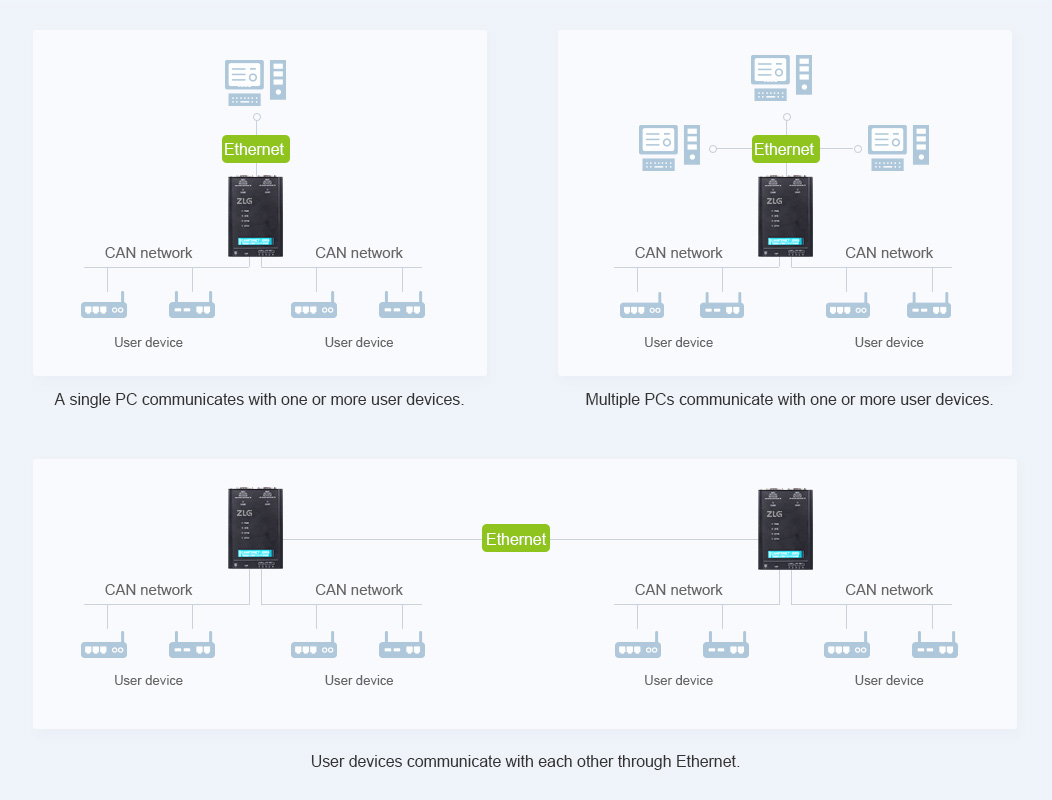

Flexible connection and rapid extension
Users can flexibly choose the working mode and topology of TCP Sever/TCP Client/UDP according to the use requirements, and complete the required parameter settings with a configuration software.

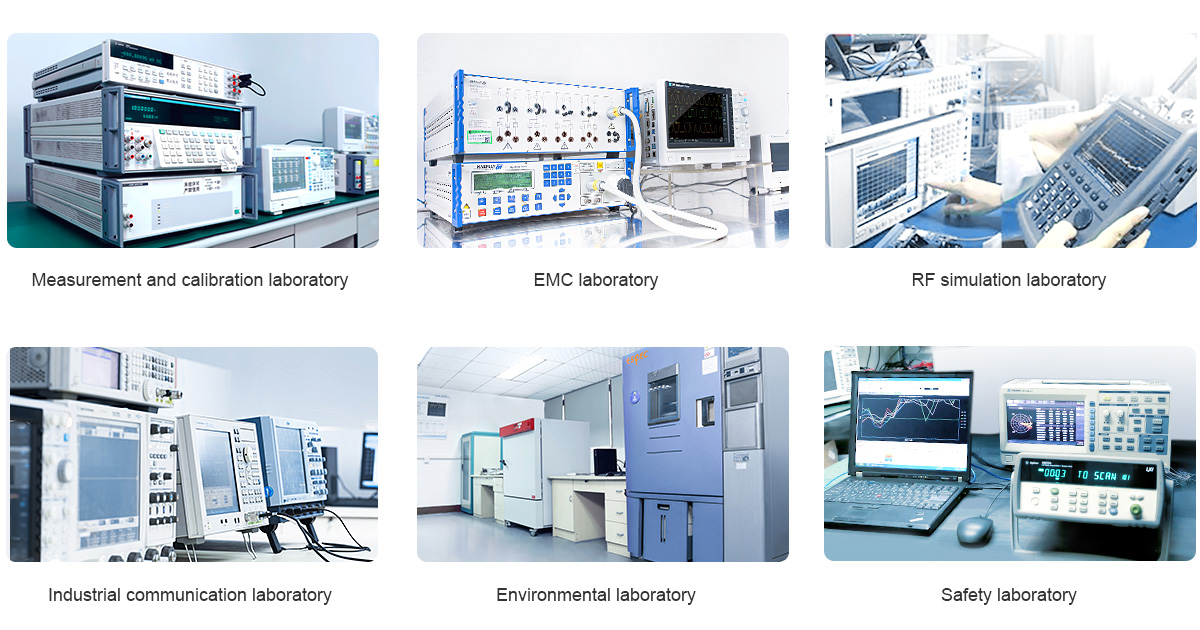

Rigorous testing, stability and reliability
CANFDNET series products, which have been rigorously verified by six scientific research laboratories, are stable and reliable. At present, they have been widely applied in high-speed railway, automotive electronics, medical electronics and other occasions.
