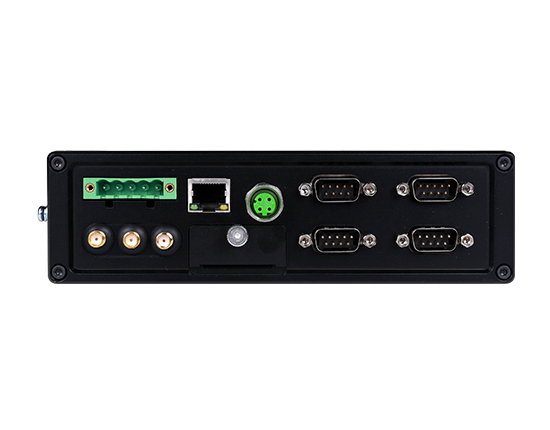

Vehicle-mounted multi-channel CAN(FD)- bus data recorder
With the rapid development of automotive electronics, rail transit and other industries, CAN FD has been widely adopted for its outstanding real-time performance and reliability. An increasing number of users require effective on-site data logging of CAN FD signals. Installing a CAN FD bus data recorder enables real-time recording of CAN FD data, which facilitates post-facto fault diagnosis, resolves defects on the CAN FD bus, and substantially enhances the network reliability of the complete vehicle.
The vehicle-mounted multi-channel CAN FD bus data recorder launched by Guangzhou Zhiyuan Electronics Co., Ltd. integrates 4 to 24 independent CAN FD bus channels, as well as multiple channels for automotive Ethernet and LIN bus, to meet multi-bus testing requirements. The device supports two data storage modes: local storage and 4G cloud upload. Equipped with the ZCANConfigTool and CANDTU configuration software, users can set various recording modes including long-duration recording, conditional recording, pre-trigger recording and scheduled recording. Recorded data can be saved directly or converted via tools into nine file formats such as blf, crf, asc and csv. Compatible with mainstream analysis software ZXDoc and ZCANPRO, it greatly facilitates in-depth post-processing analysis.

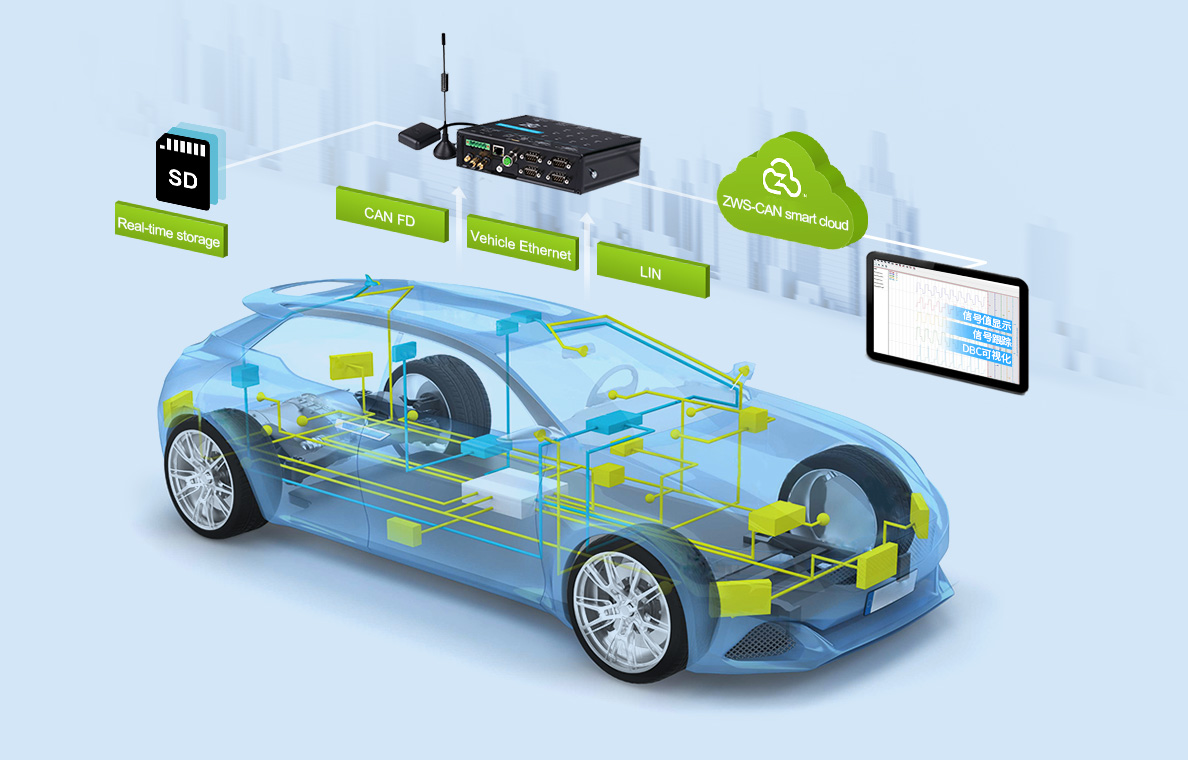

Intelligent networked automobile bus three-in-one testing tool

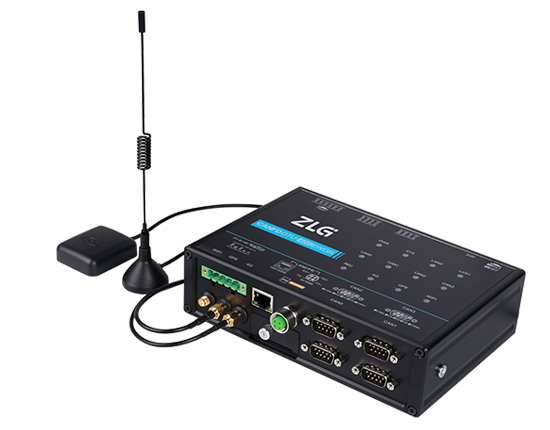

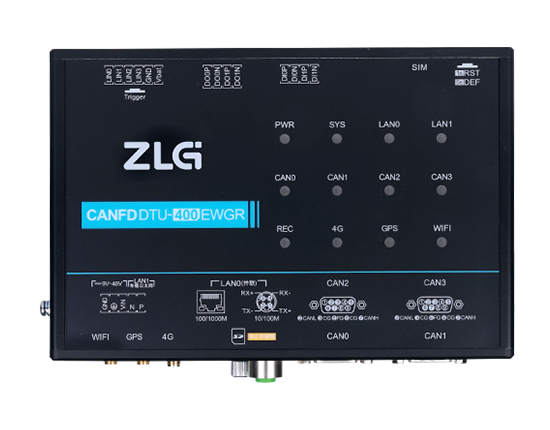

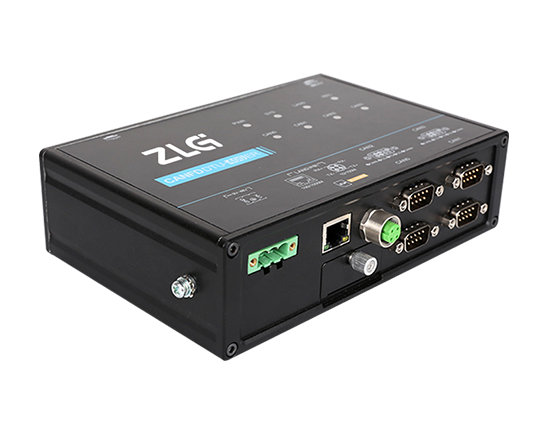

CANFDDTU-400EWGR can meet the requirements of various application scenarios. It can synchronously monitor and collect the data of CAN FD bus, LIN bus and vehicle Ethernet in different scenarios, and upload the data to the designated cloud server in real time through 4G communication.

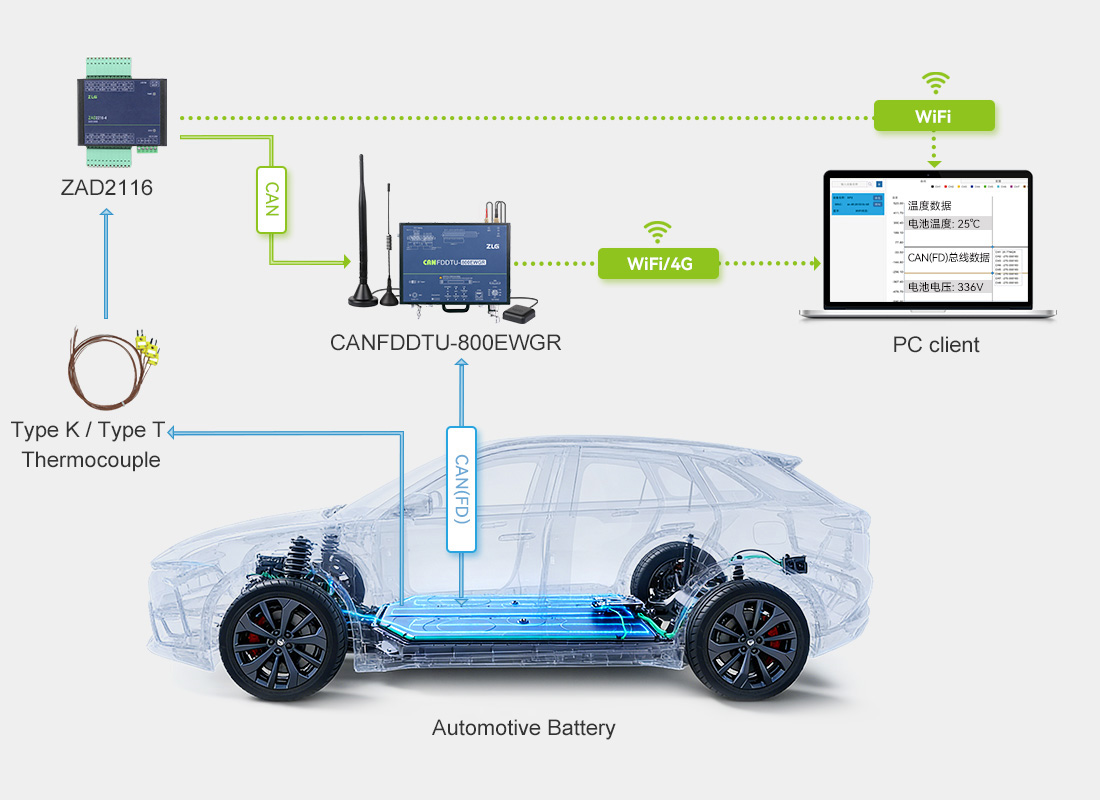

Full coverage, synchronous acquisition of bus data and temperature data
The CAN FD DTU recorder paired with the ZAD series temperature collectors can record, store and parse digital bus data and analog temperature data in real time. Temperature data can also be converted into CAN data for convenient parsing and application.

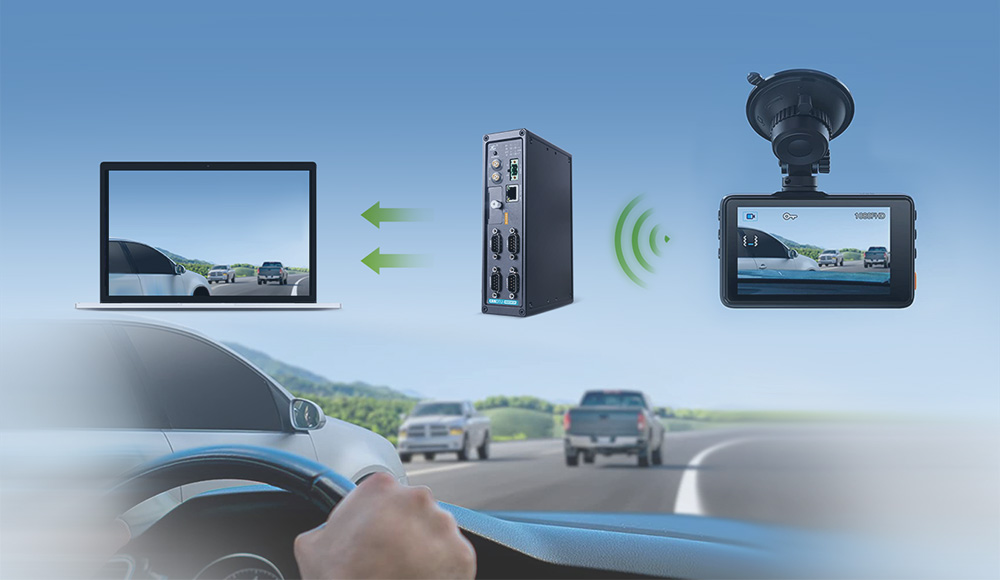

Support video recording to further reflect the road conditions
In terms of automatic driving and road test scenarios of new energy vehicles, CANFDDTU series products are provided with a webcam with FTP function to synchronously record road conditions and save the data, truly reflecting the road conditions outside the vehicle.

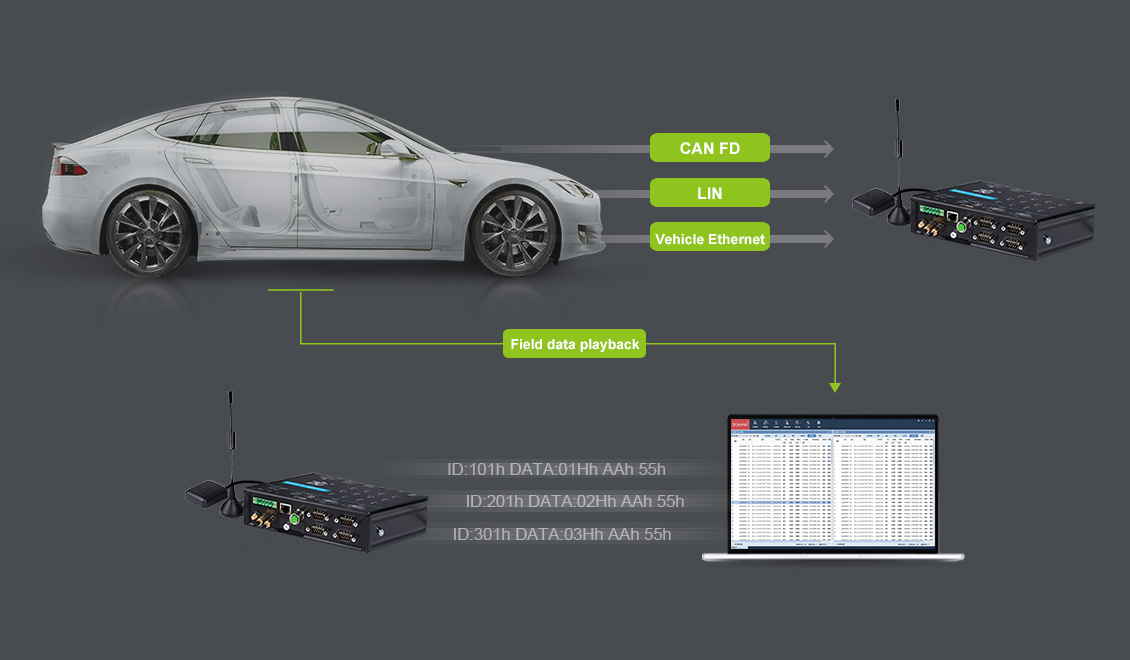

Bus recording and playback can simulate field data
CANFDDTU can collect and record bus data in real time, and send the stored data to user device through the device to accurately simulate the field application scenarios.
Support WiFi communication and export data more conveniently
CANFDDTU-400EWGR supports WiFi communication. It can easily export and analyze data through WiFi, helping users to expand usage scenarios.

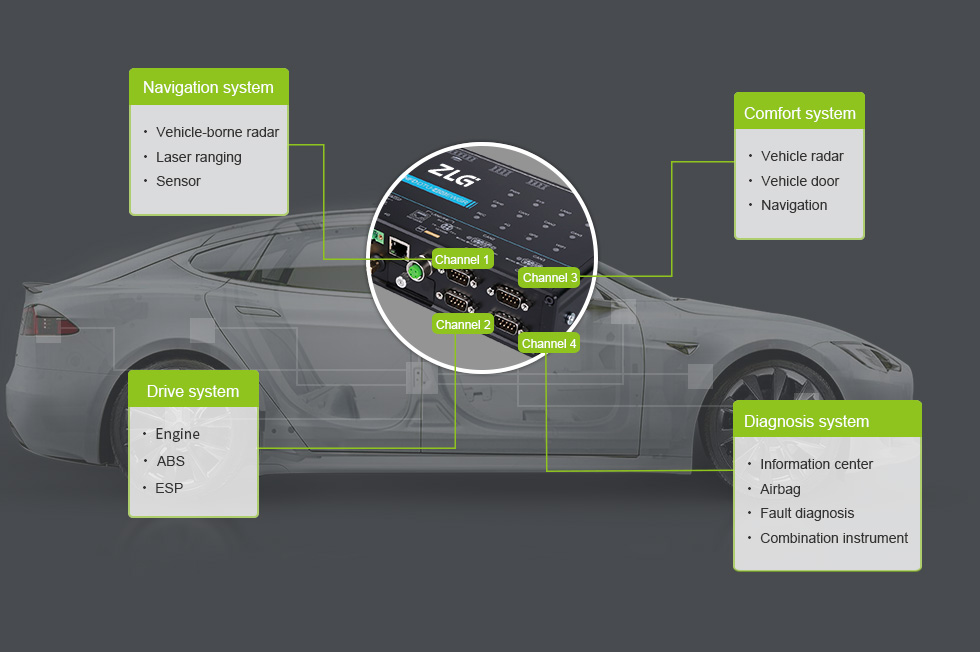

Electrical isolation of each channel empowers domain recording
CANFDDTU-400EWGR can simultaneously record four channels of CANFD messages, and realize single-channel independent operation for each automobile functional domain, thus improving the richness of records.

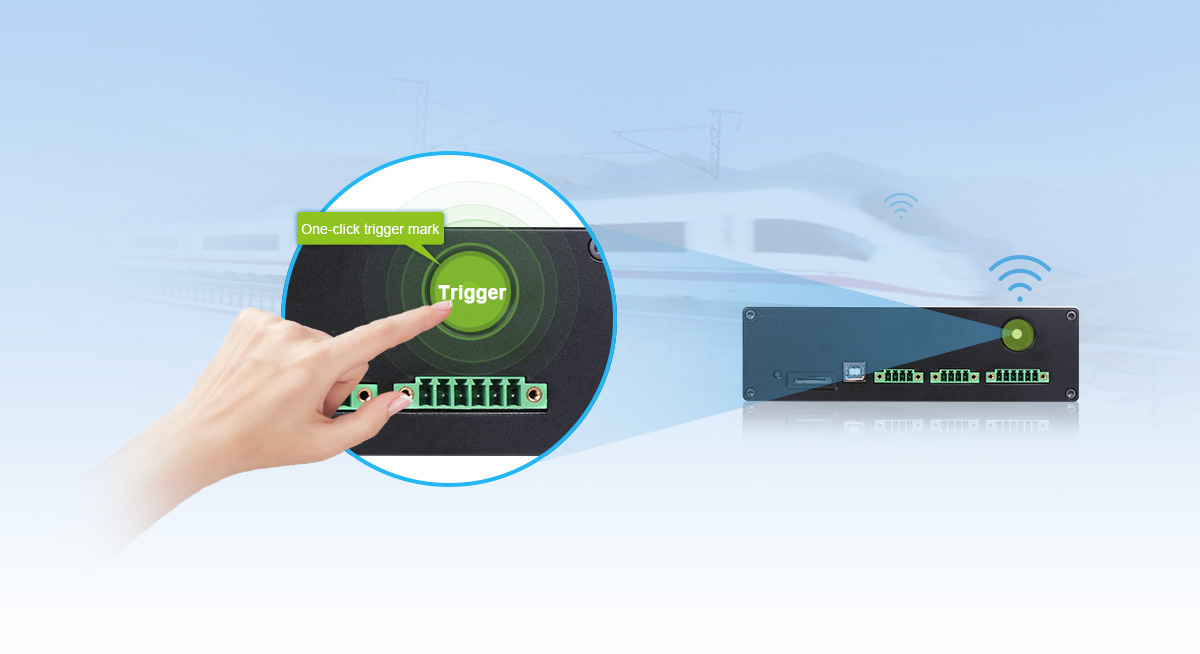

One-click triggering mark helps quickly locate faults
CANFDDTU-400EWGR provides Trigger button that can mark CANFD message data in real time, facilitating users to easily locate the record file in SD card and quickly locate the fault.

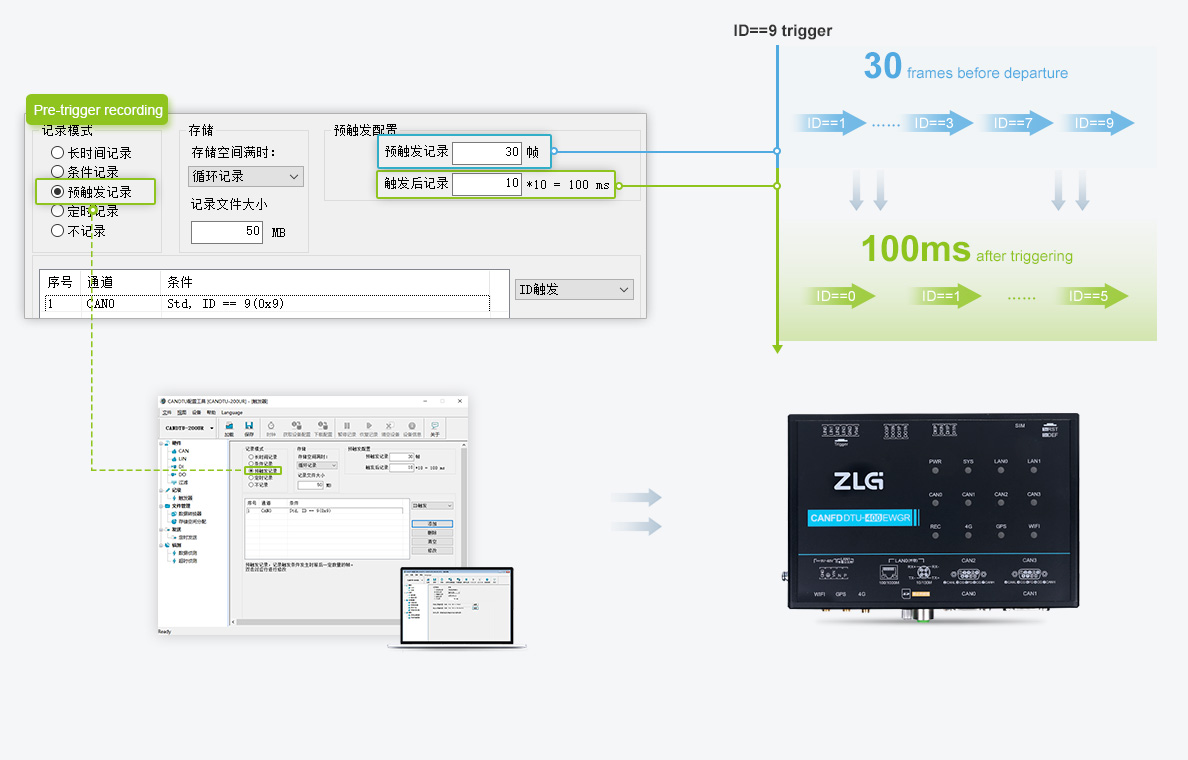

Multiple trigger records are more flexible
The trigger can be configured with up to five different recording modes, and users can, according to their own needs, switch between long-term recording, conditional recording, pre-trigger recording, timed recording and non-recording modes at will.

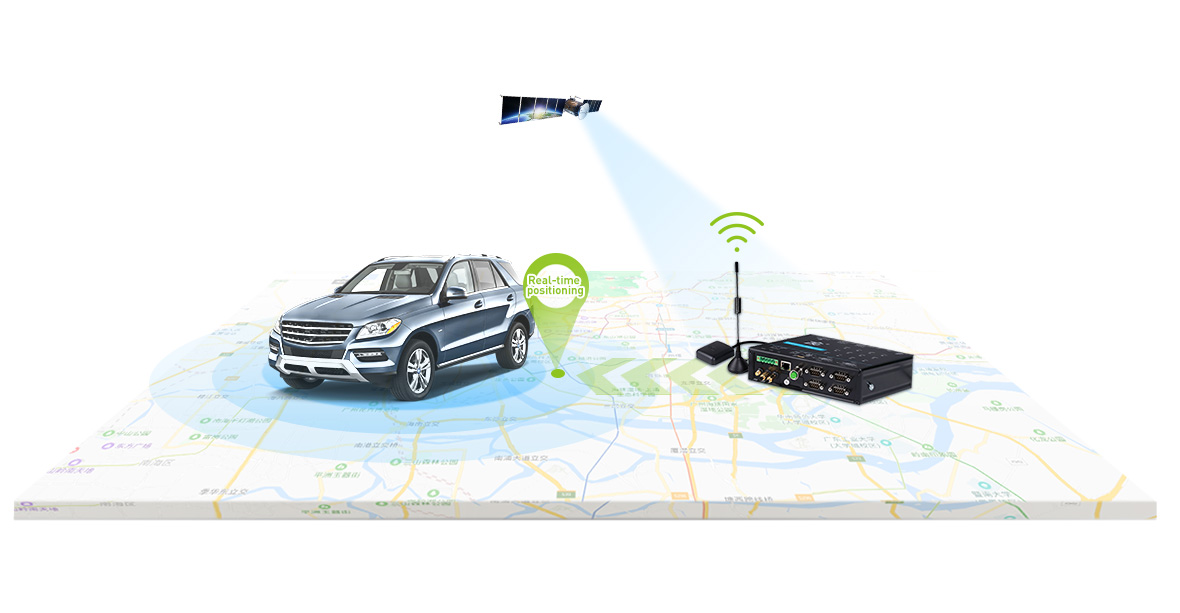

Support Beidou /GPS, and optimize trajectory algorithm in real time
The unique Beidou/GPS function can record the location information of device in real time and upload it to the designated server, so that users who need device data can quickly locate device, and analyze and optimize algorithm data.

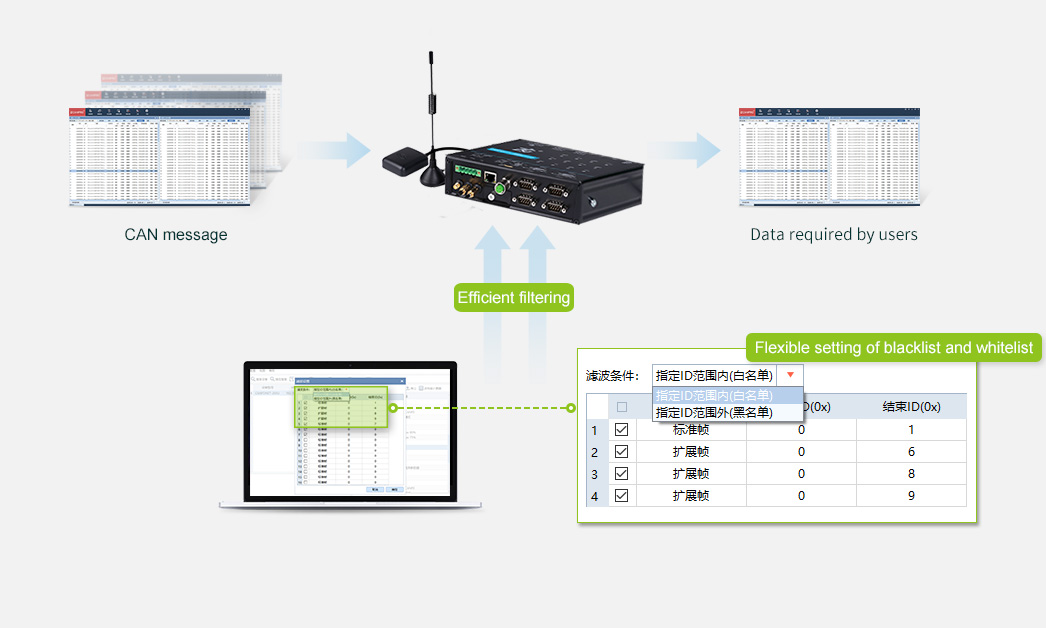

Blacklist and whitelist mode effectively reduces the load
The configuration tool supports up to 64 filtering rules per channel, and performs filtering configuration according to ID. Meanwhile, blacklist and whitelist can be added for recording, and channel can independently enable filter and filtering mode.

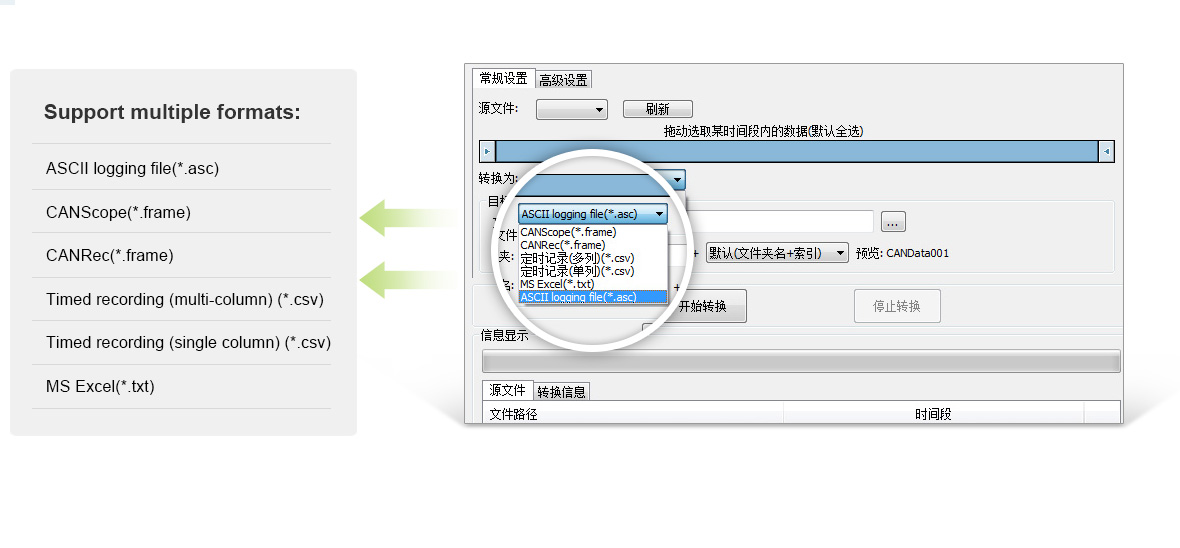

Support multiple analysis software formats
CANDTU configuration software can record automobile data more truly, objectively and comprehensively, and can also convert the recorded data into various software formats commonly used by users, facilitating users to analyze and evaluate the data offline using CANoe and CANScope.

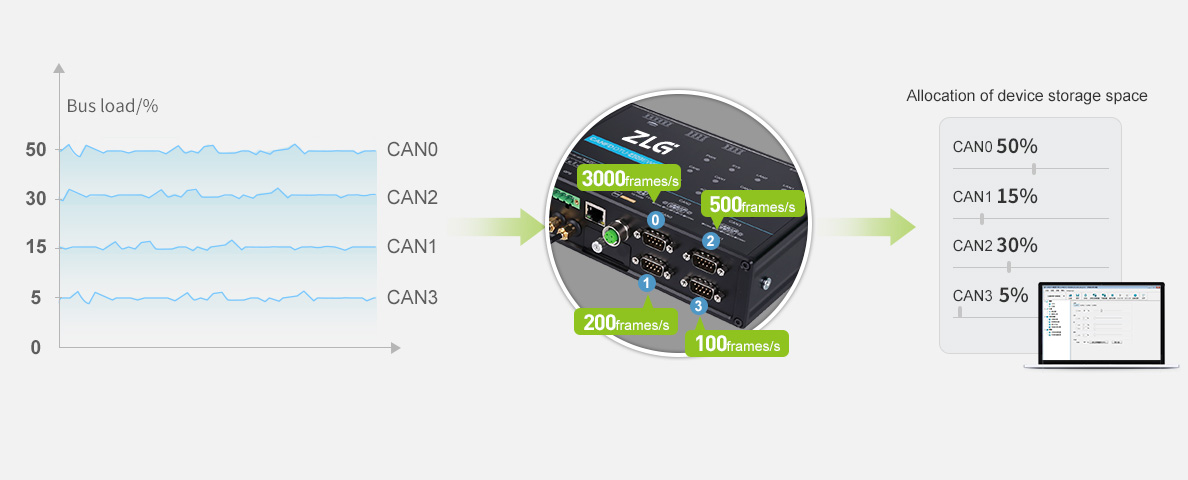

More balanced and freer storage
Users can freely allocate storage space for each effective recording channel according to their own needs, improving the utilization rate of storage space.

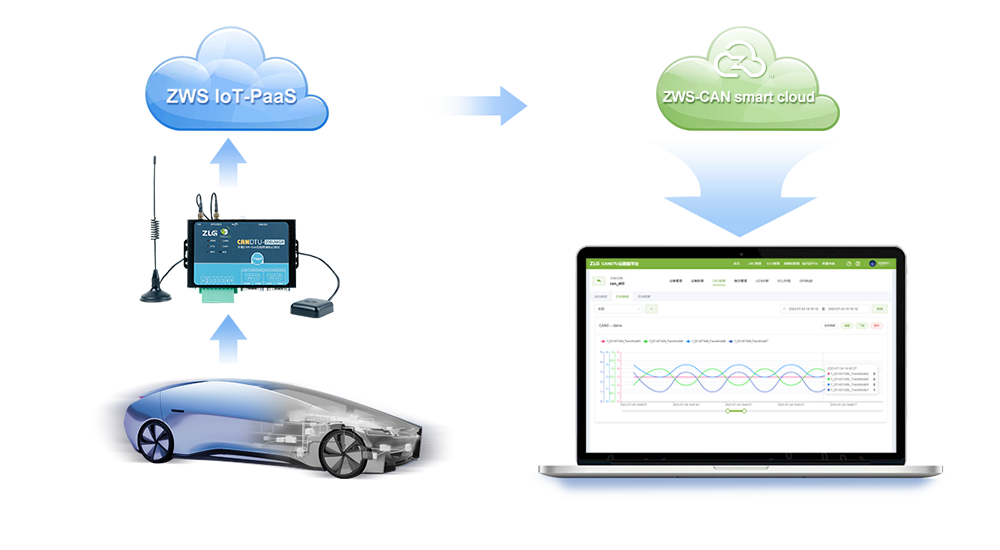

ZWS-CAN smart cloud empowerment
ZWS-CAN smart cloud platform is adapted to CANDTU series device, integrates remote data acquisition, cloud analysis and cloud debugging, and improves the efficiency of road test.
Rigorous testing, stability and reliability
After rigorous anti-vibration test and harsh industrial field test, the product can easily and stably complete message recording and field monitoring of vehicles, ships, elevators, wind turbines, construction machinery, coal mines and other application sites. The product with stable and reliable performance will be your ideal choice!
