Mature solution, stable operation

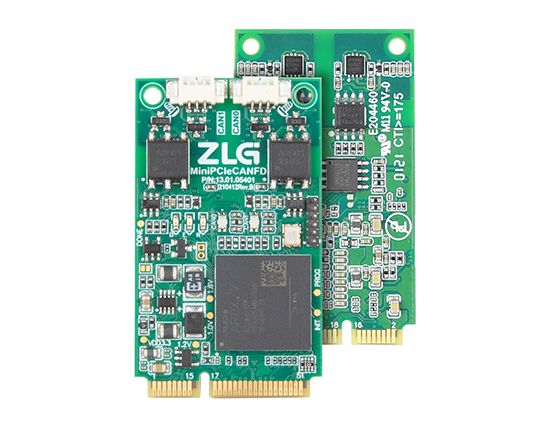

MiniPCle/M.2 interface CAN FD card, based on mature PCIeCAN card technology of Zhiyuan Electronics, has outstanding communication performance and highly stable operation. It is especially suitable to be used as an extended CAN interface for embedded industrial control boards and fanless industrial control computers.

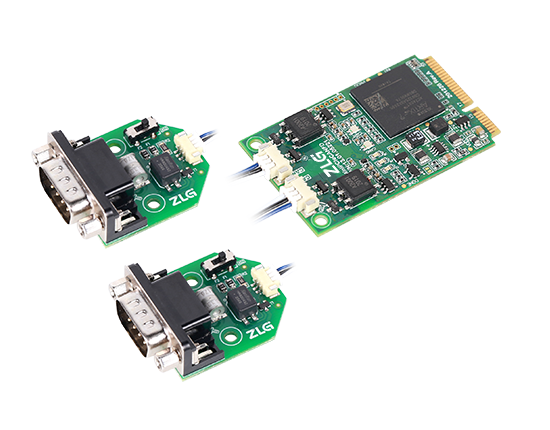

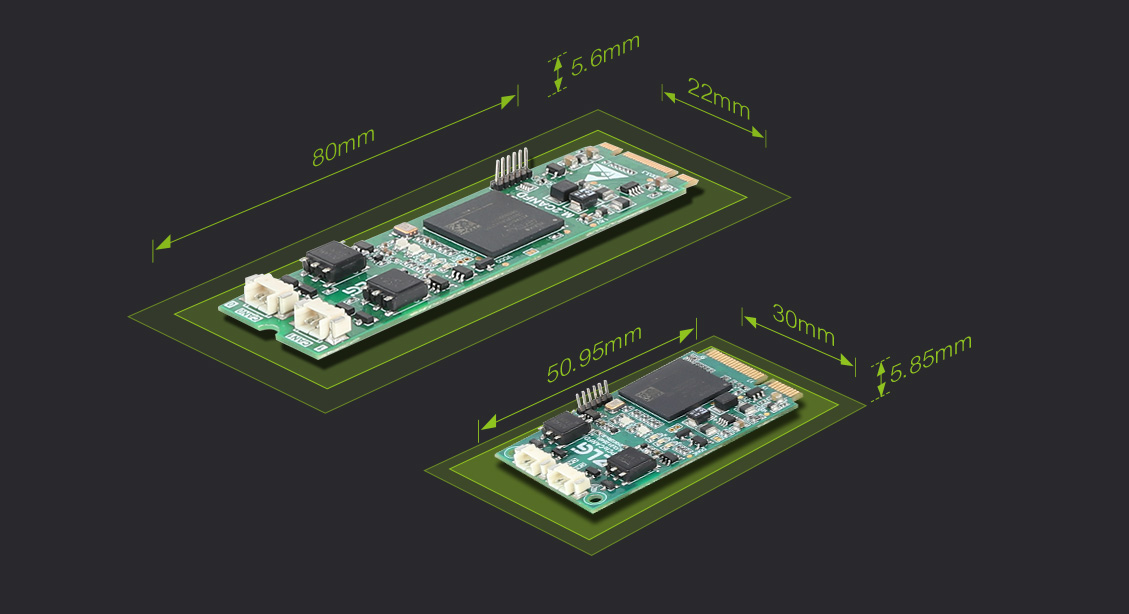

Small size and easy integration

The MiniPCle/M.2 interface CAN FD card product is compact and convenient to use. Users only need to reserve a small application size before quickly connect the computer to the CAN/CAN FD bus network and monitor multiple bus network nodes in real time.

Support high-speed CAN FD and CAN2.0A/B data communication simultaneously

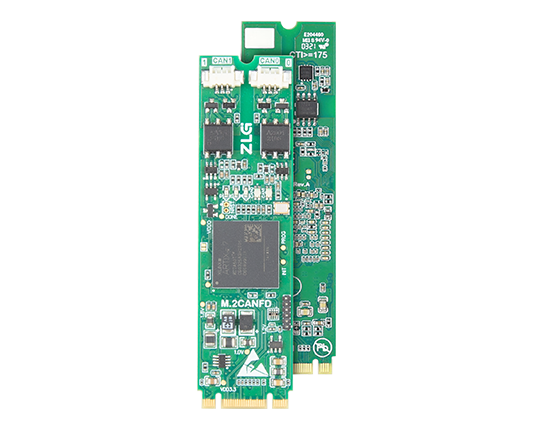

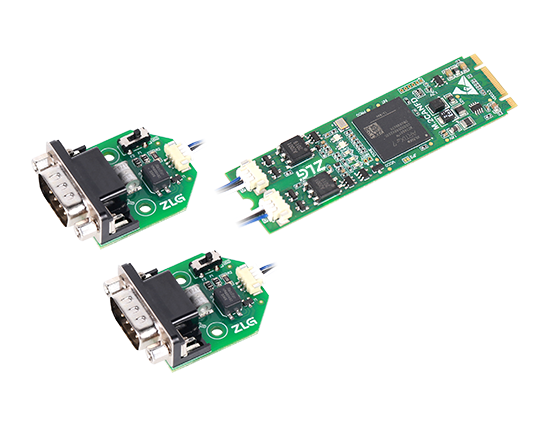

M.2CANFD interface card provides the M.2 NGFF B+M Key interface, which enables computers with M.2 B-key or M-Key slots to be conveniently connected to the CAN/CAN FD bus network and monitor multiple bus networks in real time. Meanwhile, it supports CAN FD standard of SO/Bosch, and is compatible with CAN2.0A/B mode transceiving, with the Baud rate in data field configured up to 5Mbps and the data length configured up to 64 bytes.

2500VDC isolation to prevent interface damage

The 1~2 channels CAN FD interface of M.2CANFD interface card are all provided with 2500VDC electrical isolation. The electrostatic level is ±4 kV for contact discharge and ±1 kV for surge, which can effectively avoid backflow damage caused by different ground potentials of different nodes. It is especially suitable for the testing of electric vehicles and trains.

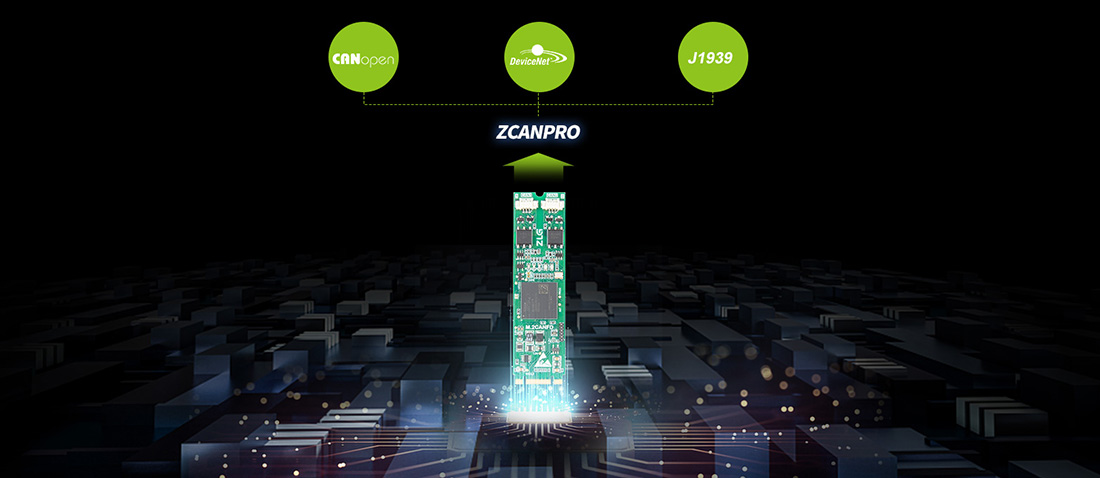

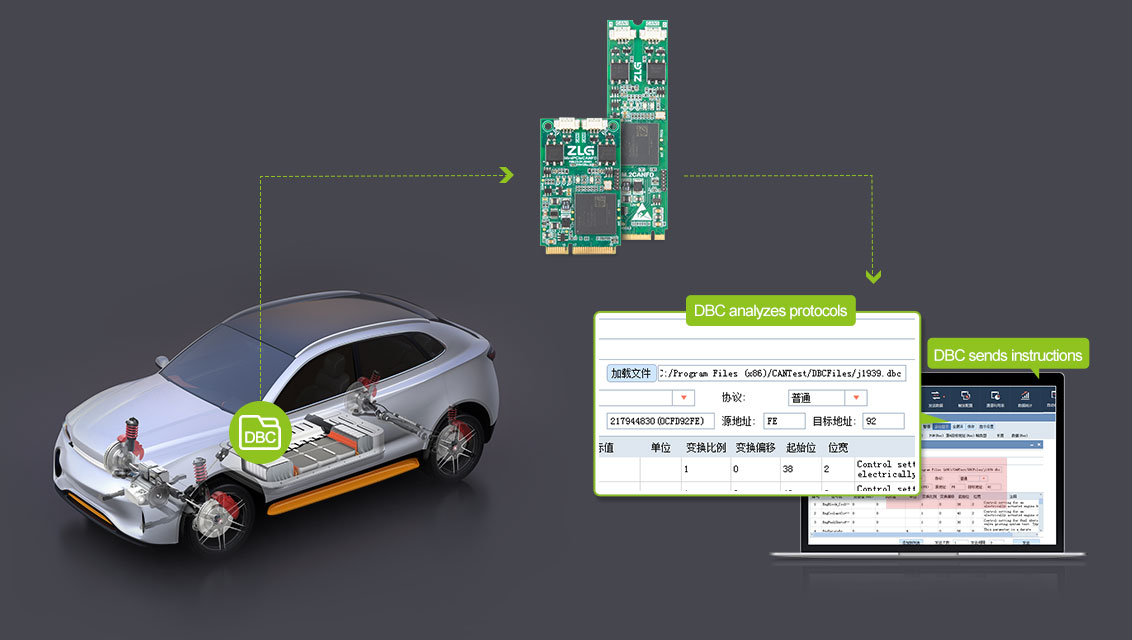

Support DBC protocol parsing and sending

Users can load the DBC files of vehicles or parts for application protocols analysis and send relevant instructions through DBC to directly control vehicles, facilitating the test and repairing of vehicle parts.

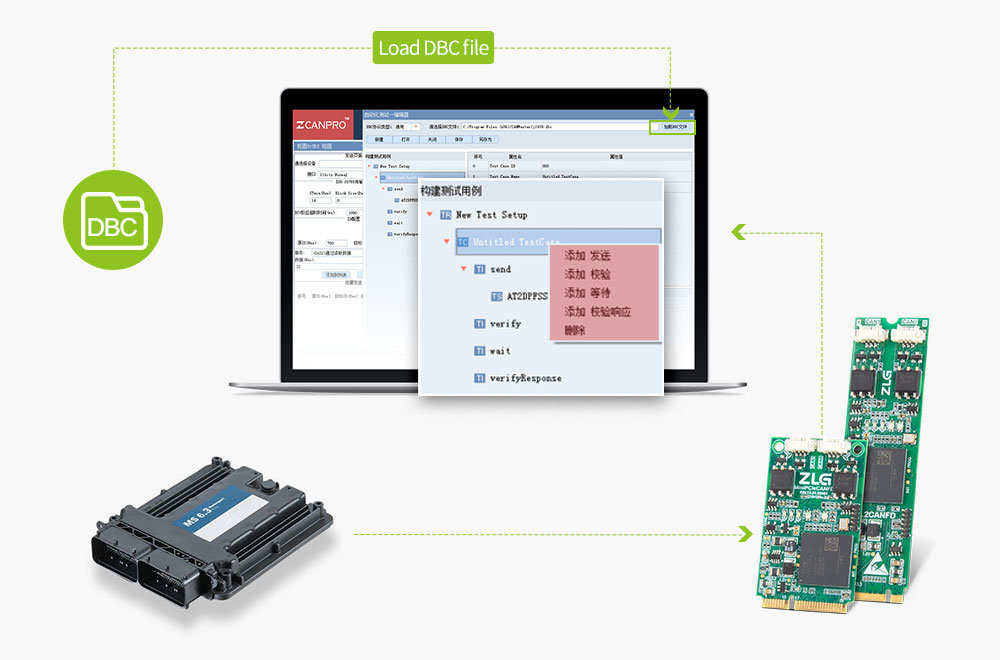

Customize test cases to greatly shorten the cycle

Users can load DBC files by editing the test flow, and realize the automatic test of the tested equipment through actions such as sending, waiting, checking, and response checking.
