Features

VBNET-4302

• Support forwarding and monitoring of message routing between 4-channel 100/1000BASE-T1 ports and between 2-channel RJ45 ports;
• Support data forwarding based on any combination of 4-channel 100/1000BASE-T1 ports;
• Support MAC filtering when mirroring;
• Support dynamic and static configuration of MAC address forwarding list;
• Support 802.1q (VLAN) and 802.1AS Q in Q (Double VLAN) settings;
• Support IP/MAC address mapping;
• Support TC10 sleep and wakeup;
• Support vehicle Ethernet self-adaption or manual configuration of master-slave/connection speed;
• Support the configuration of device functions through PC Ethernet, including the Master/Slave mode of 100/1000BASE-T1 port, port combination of data forwarding, mirror port combination and Enable/Disable, etc.
• Integrate 2-channel CAN FD, equip with software terminal resistor, and support data conversion between CAN FD and Ethernet;
• Dynamically monitor the full-duplex communication data between 100/1000BASE-T1 nodes under microsecond delay;
• Support LED indicator light to display the Master/Slave mode, link state and data operation state of 100/1000BASE-T1;
• You can reset the device and reset the default settings by pressing the key;
• Vehicle-mounted Ethernet connector of vehicle gauge makes the connection between the rack and the vehicle stable and reliable;
• 9~48V wide voltage power supply meets the power supply application requirements in many occasions;
• Operating temperature: -40~+85℃.

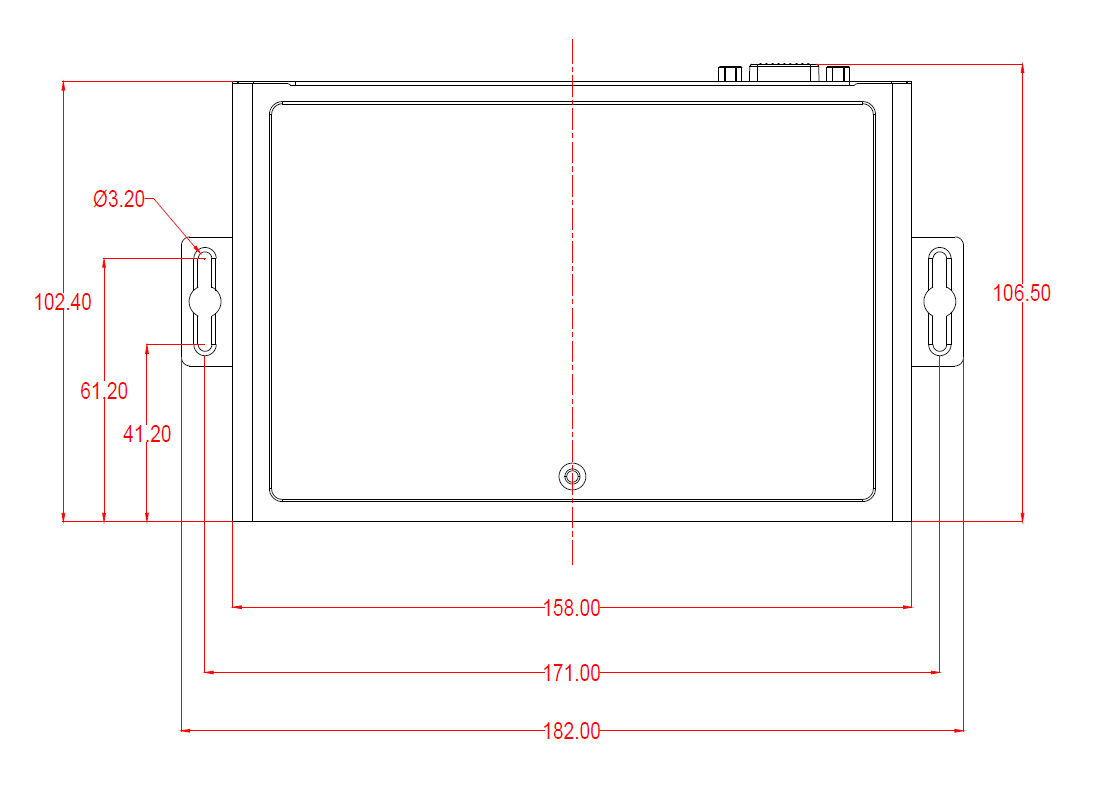

Dimensional drawing

Accessories list

The accessories list is for reference only. Please refer to the material object.
