100M vehicle Ethernet converter

The development of automotive electronics has pushed the continuous increase of ECU in the vehicle and the increasing demand for bandwidth. Vehicle Ethernet will gradually become the backbone network of automobile bus.

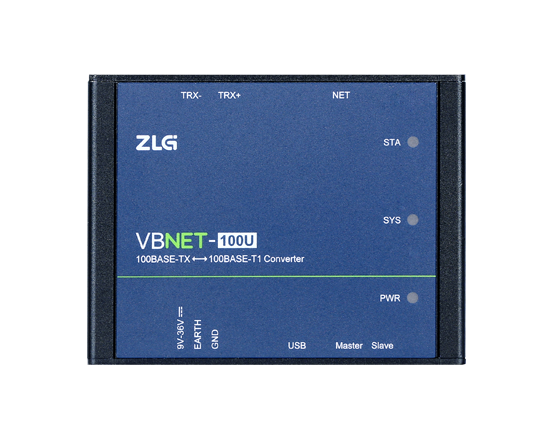

VBNET-100U is an industrial-grade high-performance vehicle Ethernet converter developed by Guangzhou Zhiyuan Electronics Co., Ltd. It internally integrates a common 100M Ethernet interface and a 100M vehicle dual-wire Ethernet interface that meets the OPEN Alliance BroadR-Reach specification. The device has an adaptive rate negotiation function and can operate within a temperature range of-40℃ to 85℃, supporting full-duplex physical layer conversion between ordinary Ethernet and vehicle Ethernet.

Selection Table

Please drag the table left or right for viewing.

ModelVBNET-100U
Form of vehicle Ethernet interfaceOPEN2 terminal
Development document
Performance characteristicsHigh-performance vehicle Ethernet converter, switching between ordinary Ethernet and vehicle Ethernet physical layer signals
Vehicle Ethernet network number1
Form of vehicle Ethernet interfaceOPEN2 terminal
Ethernet rate100M
Master/Slave modeDip switch/adaptive
Vehicle-mounted 100M/1000M rate modeDip switch/adaptive
Full-duplex physical layer conversionSupported
Vehicle Ethernet1
Ethernet interface formRJ45
Ethernet rate100M
PC interfaceUSB Type-C
Industrial grade-40~85℃    2500VDC electrical isolation
Power supply voltagePower supply: 9-36V, Type-C interface power supply: 5V
Power consumption of whole machine<2W
ShellAluminum alloy
Volume84mm×63mm×30mm

One-stop vehicle Ethernet test and analysis solutions

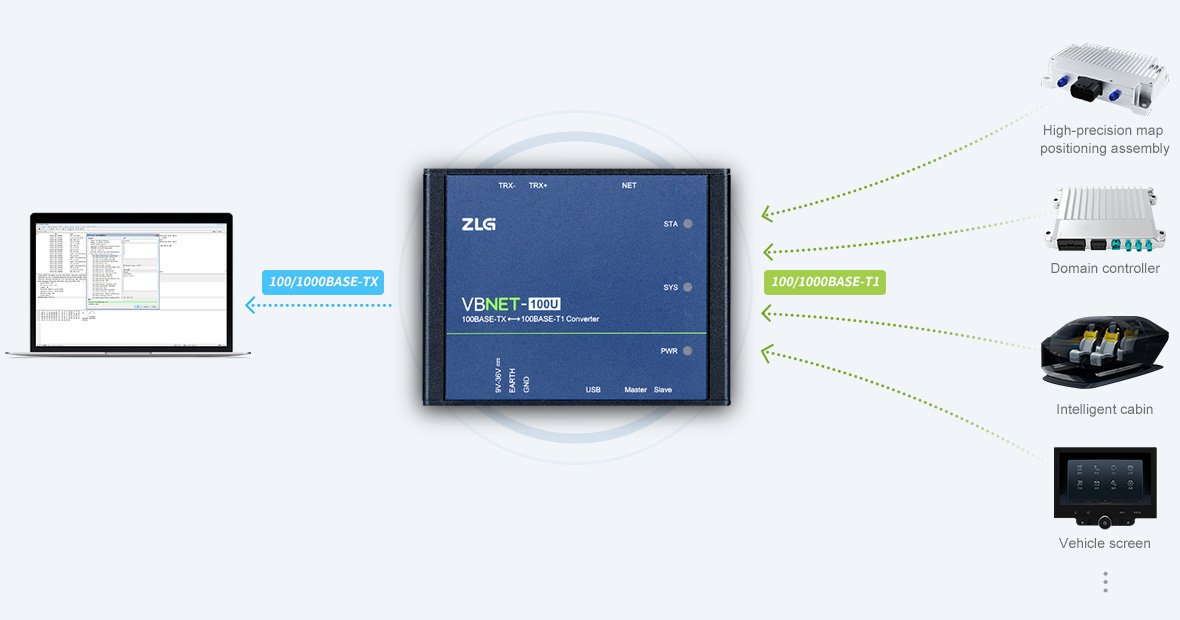

The single-channel hundred-megabit and gigabit vehicle Ethernet converter launched by ZLG Zhiyuan Electronics can realize the full-duplex physical layer conversion between 100BASE-T1 and 100BASE-TX.

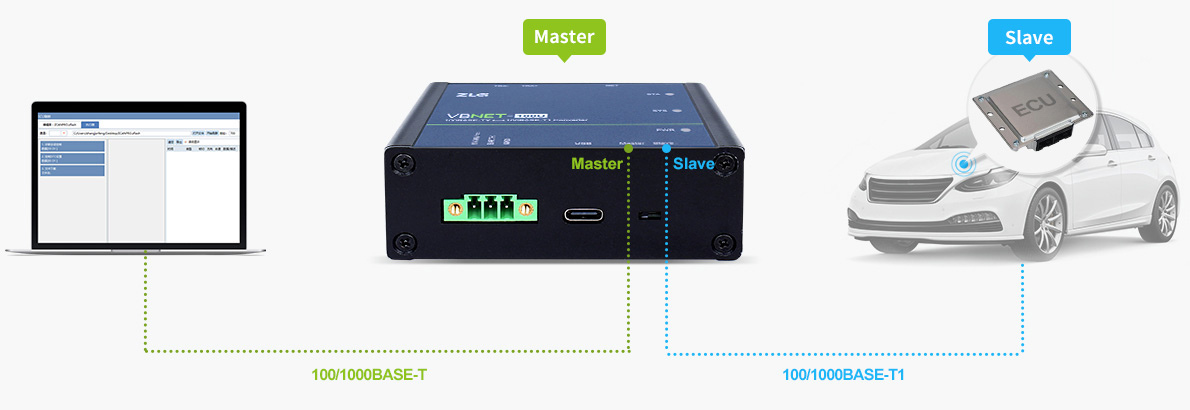

Support for adaptive/dial code switch configuration of Master/Slave mode

The single-channel vehicle Ethernet converter supports adaptive or DIP switch configuration of master-slave mode. Dialing to the silkscreen "Master" or "Slave" is the corresponding mode selection. The DIP switch configuration is software real-time configuration, and the DIP switch takes effect immediately in any running state when the device is powered on.

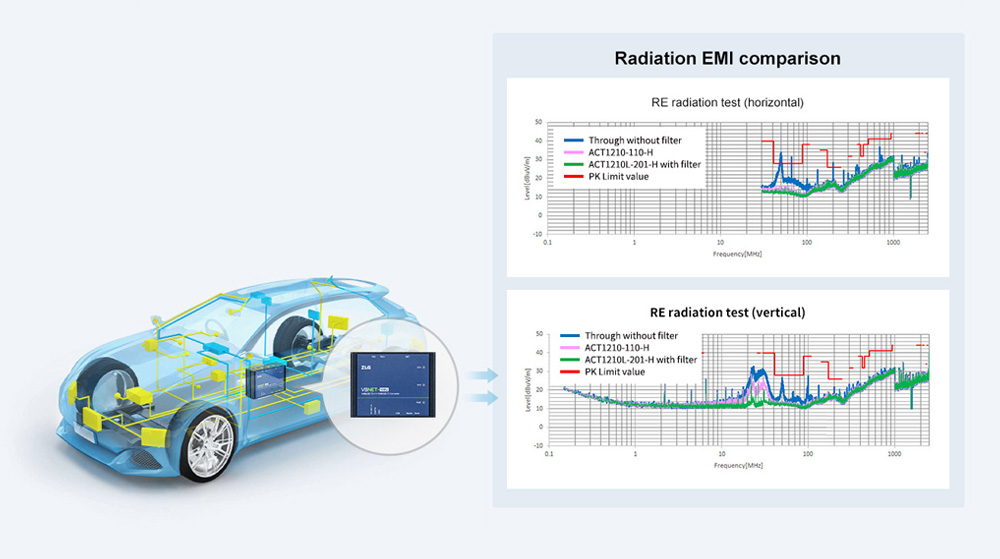

Built-in anti-interference filter adapts to any vehicle environment

The vehicle Ethernet interface has a built-in 100BASE-T1 filter that meets the OPEN Alliances standard to ensure the stable and reliable operation of the in-vehicle network system.

Small size and easy integration

The single-channel vehicle Ethernet converter product is small in size and easy to apply. Users can quickly connect the computer to the vehicle Ethernet network, and realize system-level ECU flushing.

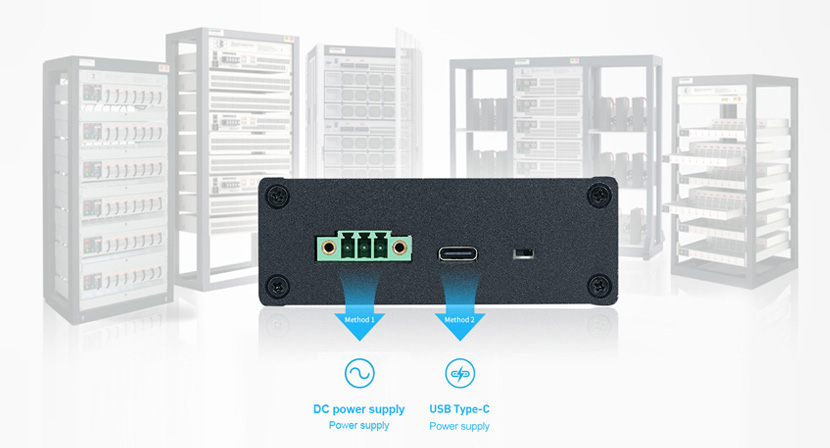

Type-C/wide-voltage DC power supply, flexible application of debugging integration

The device supports two power supply methods. One is through USB Type-C power supply, and the other is through DC power supply. Using one power supply method can make it work, or you can connect both the DC power supply and the USB cable simultaneously.

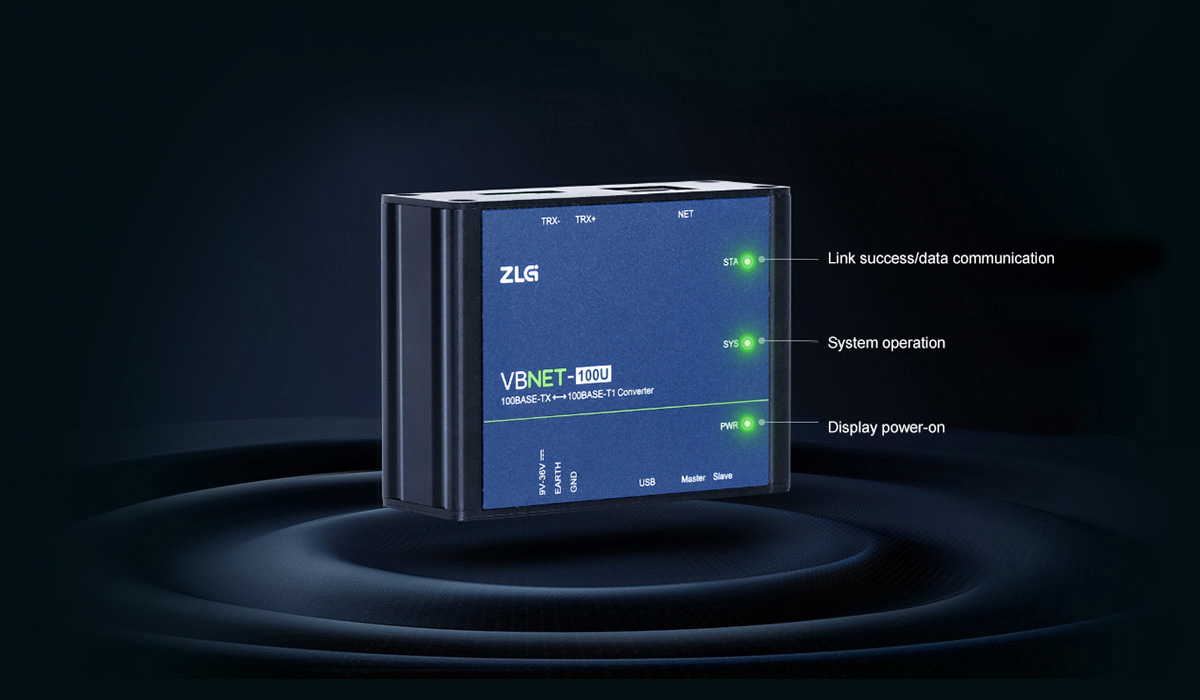

LED indicator lamp indicating the communication status of vehicle Ethernet

All products support LED light status indication, allowing you to easily grasp the Link and communication status of vehicle Ethernet.

Full scene application of vehicle Ethernet

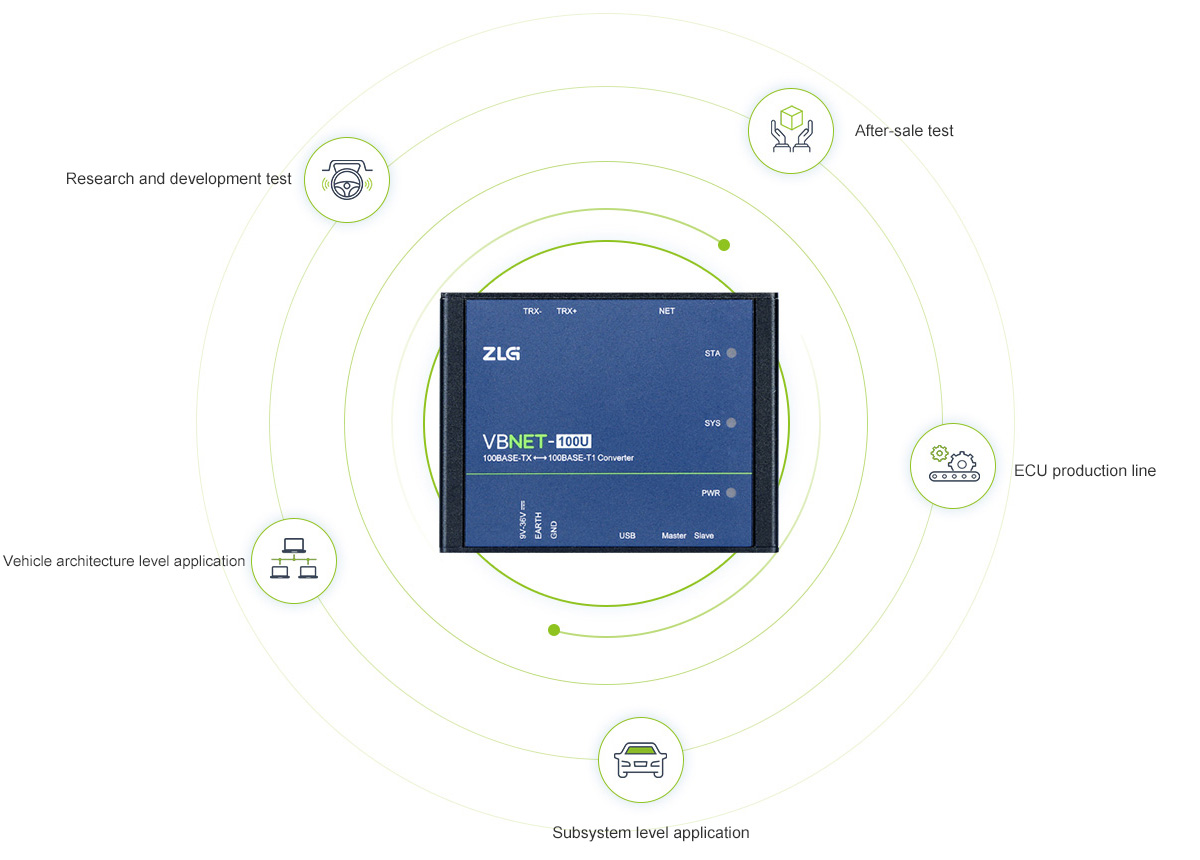

VBNET series products are suitable for R&D test, after-sales test, ECU production line, subsystem level application and vehicle architecture level application.
