The new 10M automotive Ethernet meets the needs of multi-scenario applications

10BASE-T1S has extensive applications in fields such as new energy vehicles, robots, and industrial automation. For example, it is used in production line ATE, DV, aging tests, as well as point-to-point tests in R&D.

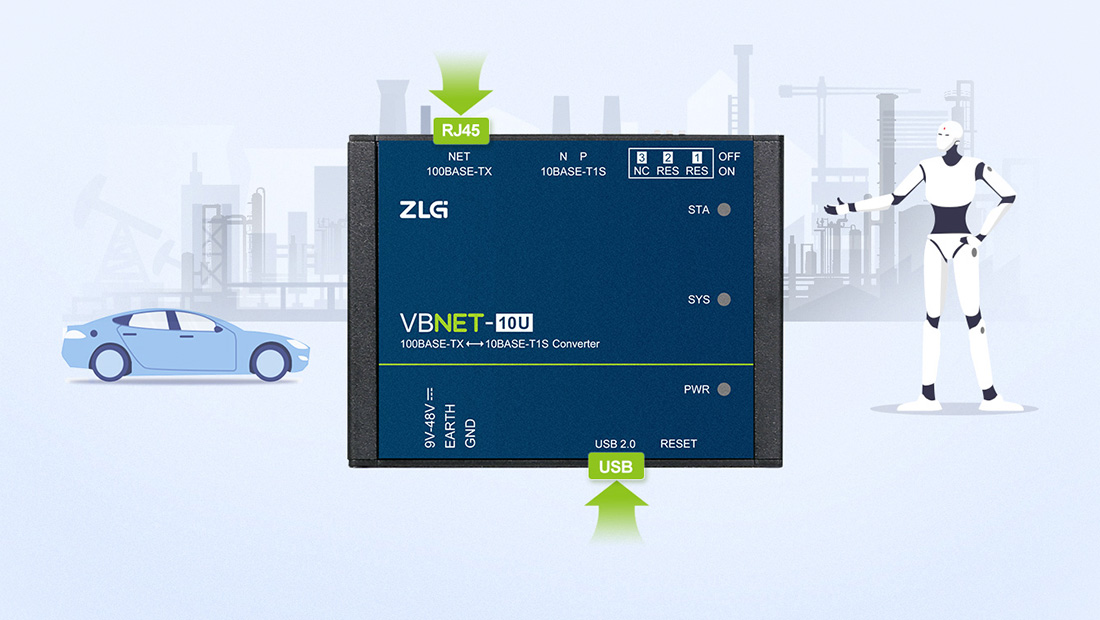

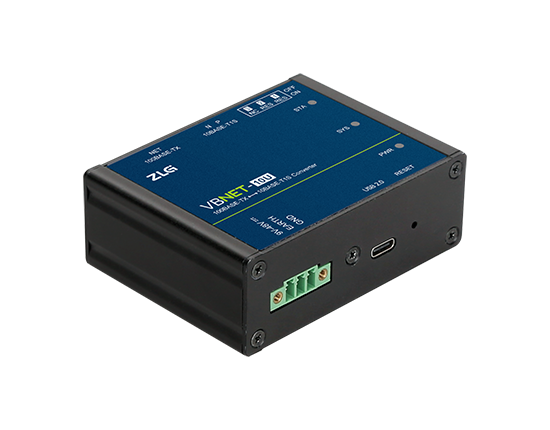

RJ45 + USB dual network ports, offering more diverse connections

The VBNET-10U is equipped with both RJ45 and USB dual conversion interfaces, and it supports direct power supply from the USB port, making usage more convenient.

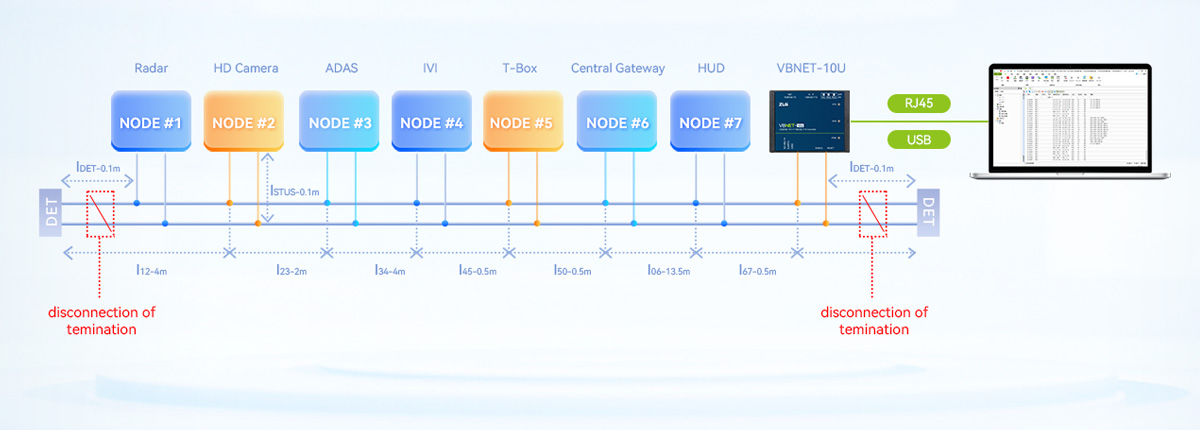

PLCA coordination technology, direct connection without the need for a switch

The PLCA mechanism, with a bus-type topology for direct connection, enables support for 8 nodes without the need for a switch. By using VBNET-10U to connect PCs, you can easily obtain the bus data.

Supports TC10 sleep-wake function, enabling more power-saving during debugging

VBNET-10U supports TC10 sleep-wake function. The device can enter sleep mode as needed to save power and wake up when necessary to perform the corresponding operations.

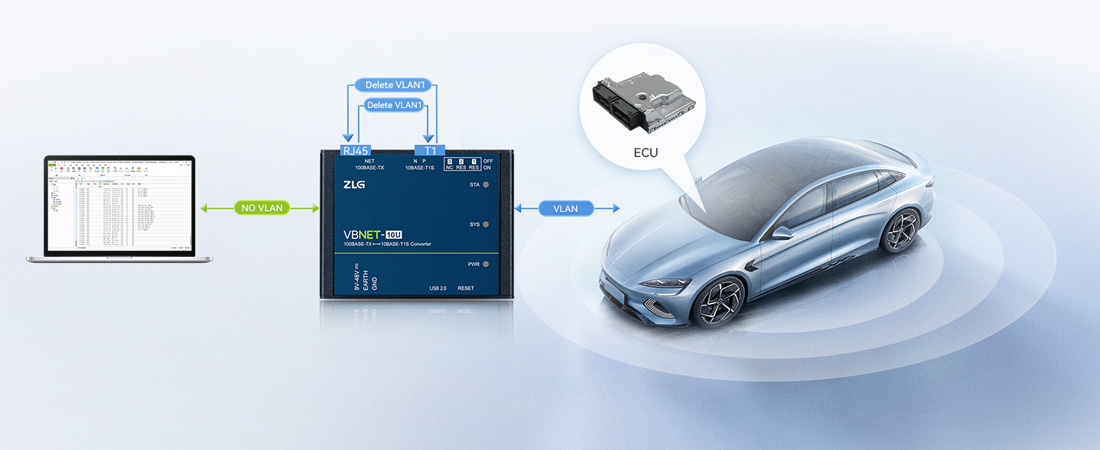

Support the addition of VLAN networks, enhance network security and simplify management

VBNET-10U supports VLAN network enabling, ensuring the interconnection with devices connected to VLAN networks.

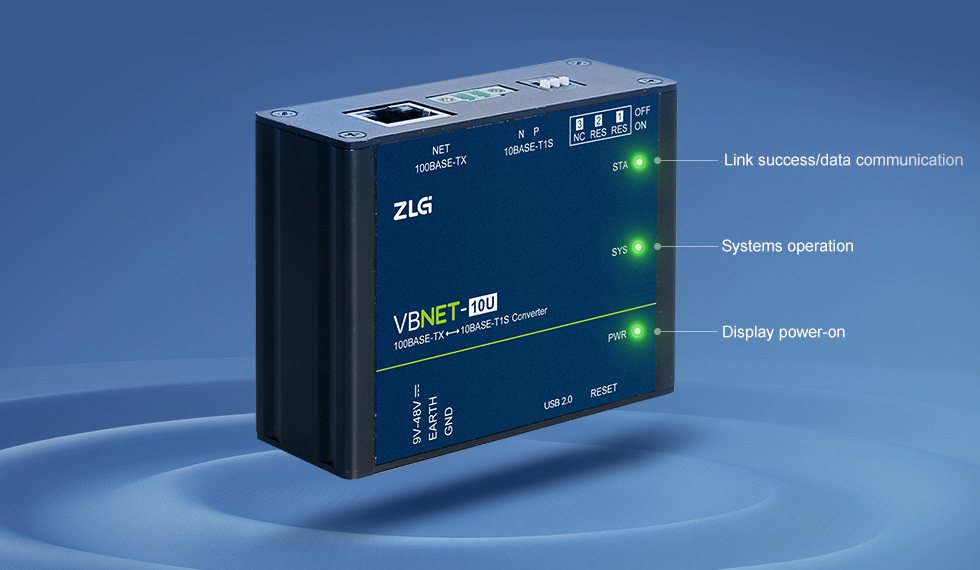

Supports communication status LED indicator, making inspection easier

VBNET-10U supports LED status indication, allowing for easy monitoring of the vehicle Ethernet Link status and communication conditions.

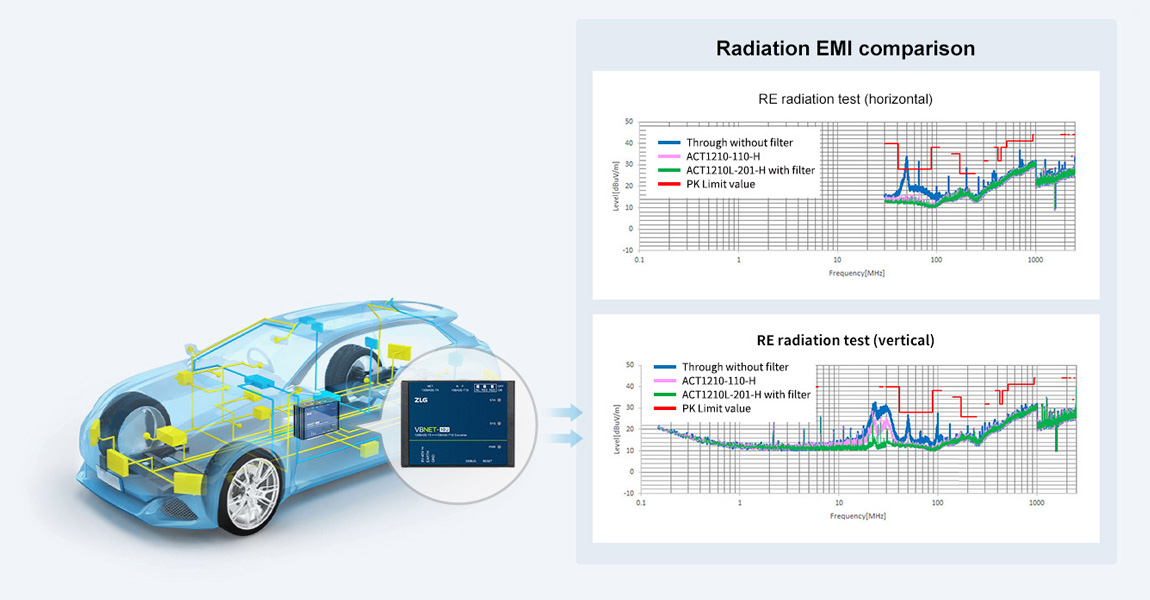

Built-in anti-interference filter adapts to any vehicle environment

The vehicle Ethernet interface has a built-in 10BASE-T1S filter that meets the OPEN Alliances standard to ensure the stable and reliable operation of the in-vehicle network system.

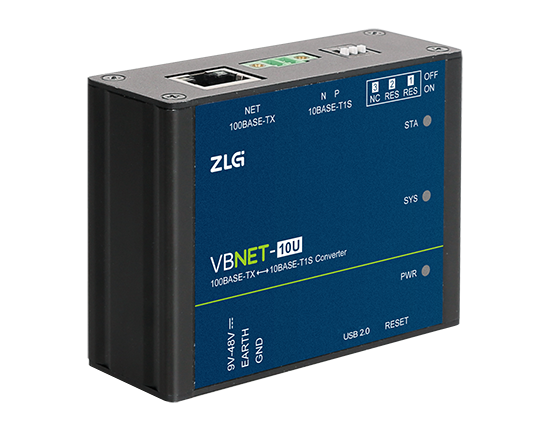

Compact in size, easy to integrate

The VBNET-10U is compact in size and easy to use. Users only need to reserve a relatively small application space, and they can quickly connect the computer to the vehicle's Ethernet network.
