Parameters

• Dual-core A9+FPGA high-performance processor, basic frequency 766MHz;
• Integrate 1 Gigabit universal Ethernet interface, 4 Ethernet monitoring interfaces, 2 USB2.0 interfaces, 1 HDMI interface, 6 high-speed digital input/output interfaces and 1 SD interface;
• 1GB storage space DDR3, clock frequency 533MHz;
• 4GB industrial EMMC, no data loss during power failure;
• Time stamp resolution: ±2.5ns;
• Passive recording and forwarding with zero delay (< 1ns);
• Built-in RTC, complete timing or event recording function during power failure;
• Wide input 9-48V DC power supply voltage;
• ESD (IEC61000-4-2) contact: ±6KV, air: ±8KV;
• Lightning (surge) IEC 61000-4-5: ±1KV;
• Pulse group (EFT) IEC 61000-4-4: ±2KV;
• Operating temperature: -40 ~+85℃;
• Operating humidity: 95%, non-condensing;
• Rated working power consumption: 7W

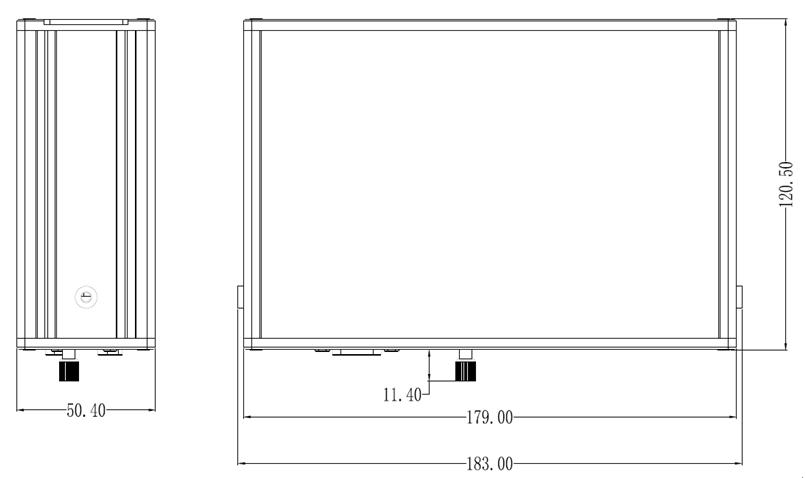

Product dimension
