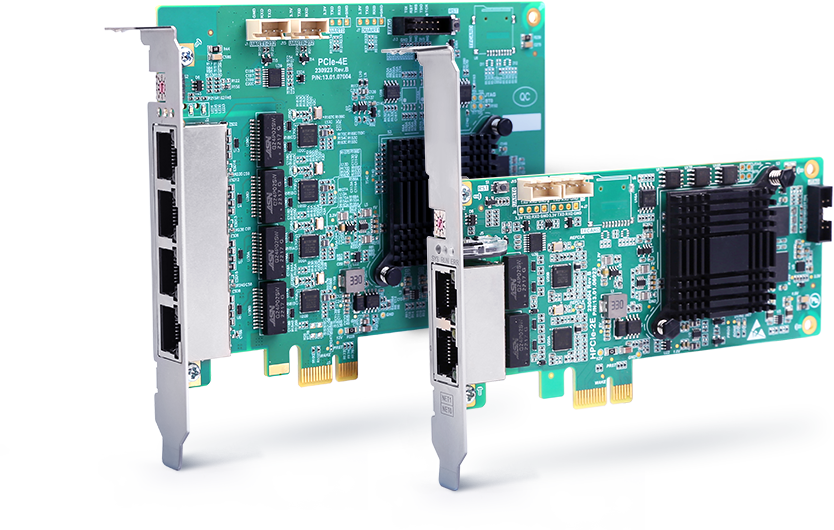

EtherCAT master card
EtherCAT master card can meet the application requirements of high-end manufacturing equipment, robot, laser processing, biomedical treatment, 3C manufacturing and assembly, lithium battery packaging, CNC machine tool, assembly line workstation, non-standard automation equipment, special machine tool and other intelligent manufacturing equipment.
Parameter List
| Name | HPCIe-2E | PCIe-2E | PCIe-4E | MiniPCIe-2E |
|---|---|---|---|---|
| EtherCAT | 1 master station, 2 Ethernet interfaces | 1 master station, 2 Ethernet interfaces | 2 master stations, 4 Ethernet interfaces | 1 master station, 2 Ethernet interfaces |
| Line redundancy | Supported | Supported | Supported | Supported |
| Slave hot plug | Supported | Supported | Supported | Supported |
| FOE | Supported | Supported | Supported | Supported |
| COE | Supported | Supported | Supported | Supported |
| PDO multi-packet transmission | Not supported | Not supported | Not supported | Not supported |
| PDO watchdog | Not supported | Not supported | Not supported | Not supported |
| Slave-to-Slave | Not supported | Not supported | Not supported | Not supported |
| Distributed clock | Supported | Supported | Supported | Supported |
| Station alias | Supported | Supported | Supported | Supported |
| Online network configuration | Supported | Supported | Supported | Supported |
| Online monitoring | Supported | Supported | Supported | Supported |
| Mounting mode | Mounted with fixing hole screws | Mounted with fixing hole screws | Mounted with fixing hole screws | Mounted with fixing hole screws |
| Structure | PCIe half height | PCIe half height | PCIe full height | MiniPCIe |
| Product dimension | 137.5mm × 68.92mm | 137.5mm × 111.15mm | 137.5mm × 111.15mm | 30mm × 50.95mm |
High real-time network technology helps you seize the opportunity and win the future!

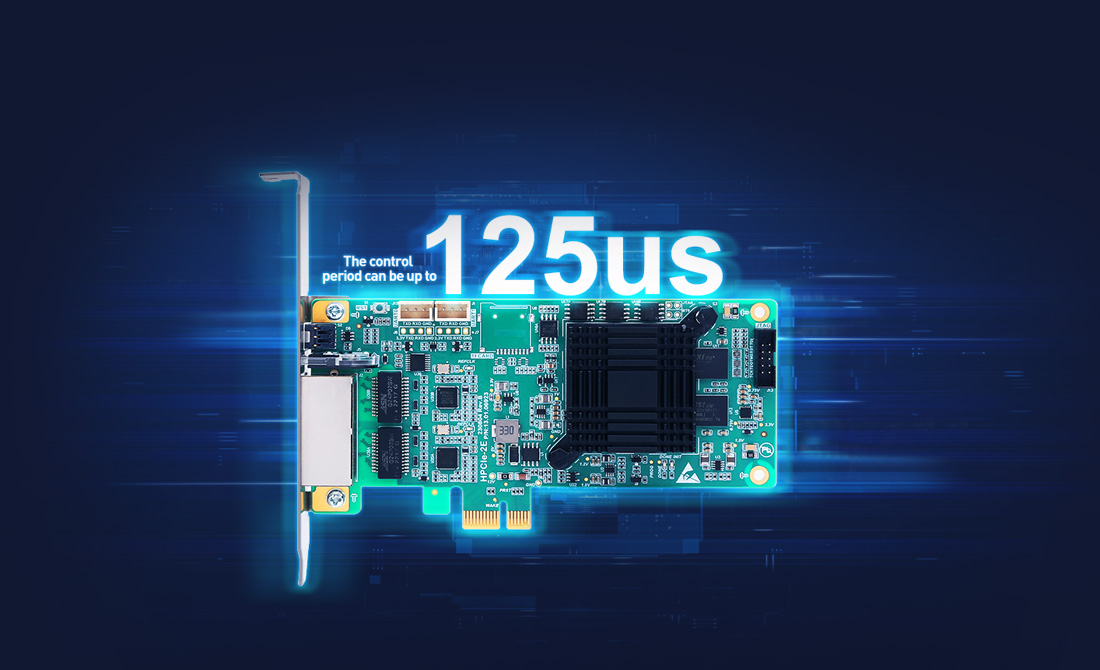

The control period of EtherCAT master card can reach up to 125μs, which meets the high real-time control requirements of intelligent devices.
The stability of the commercially licensed EtherCAT protocol stack is guaranteed

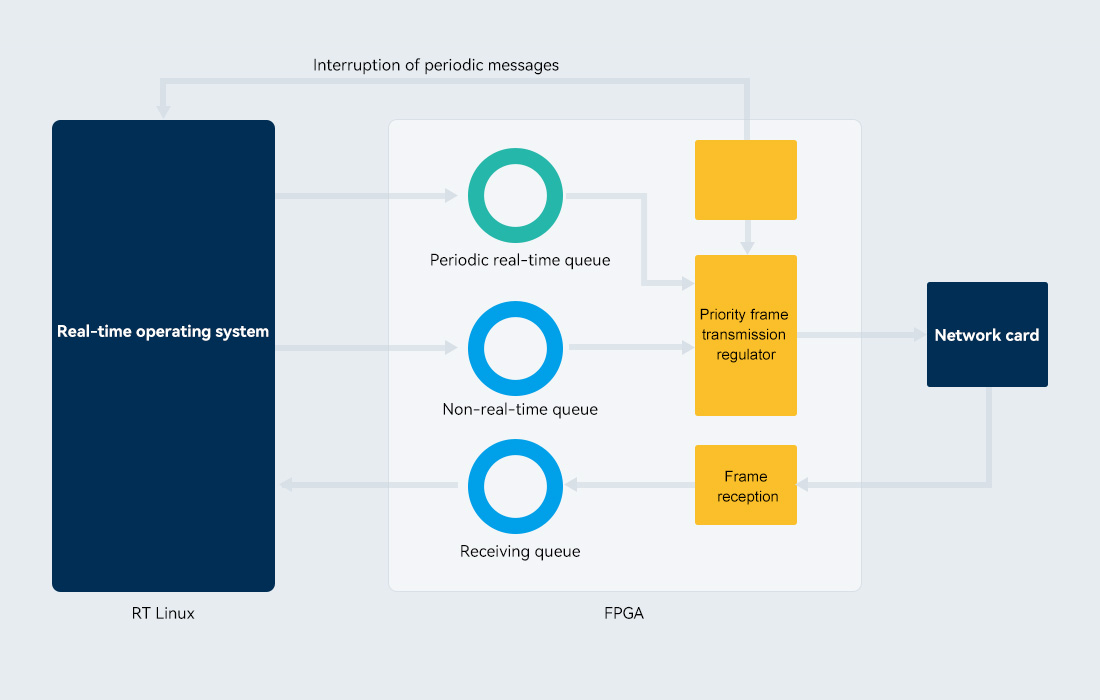

The device adopts commercially licensed EtherCAT protocol stack, and it helps eliminate the jittering of periodic messages by the time-triggered send (TTS) hardware to solve the problem of insufficient real-time performance of application layer and ensure the real-time performance of communication.
Build a powerful and fail-safe industrial Ethernet network through EtherCAT cable redundancy
EtherCAT master card supports the redundancy function of EtherCAT cable. It can maintain the communication between master station device and slave station device even if the cable is physically interrupted at a certain point.

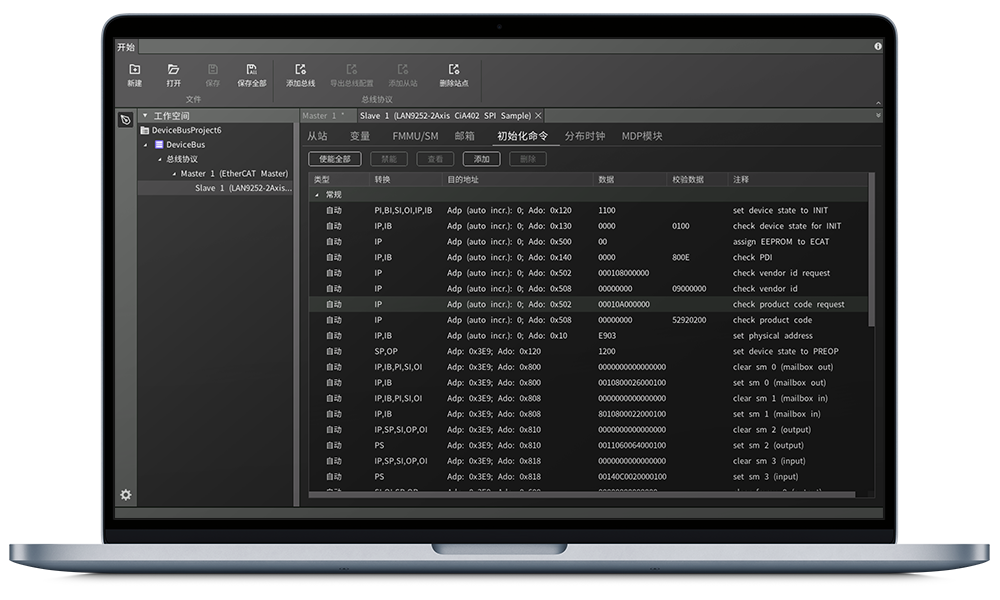

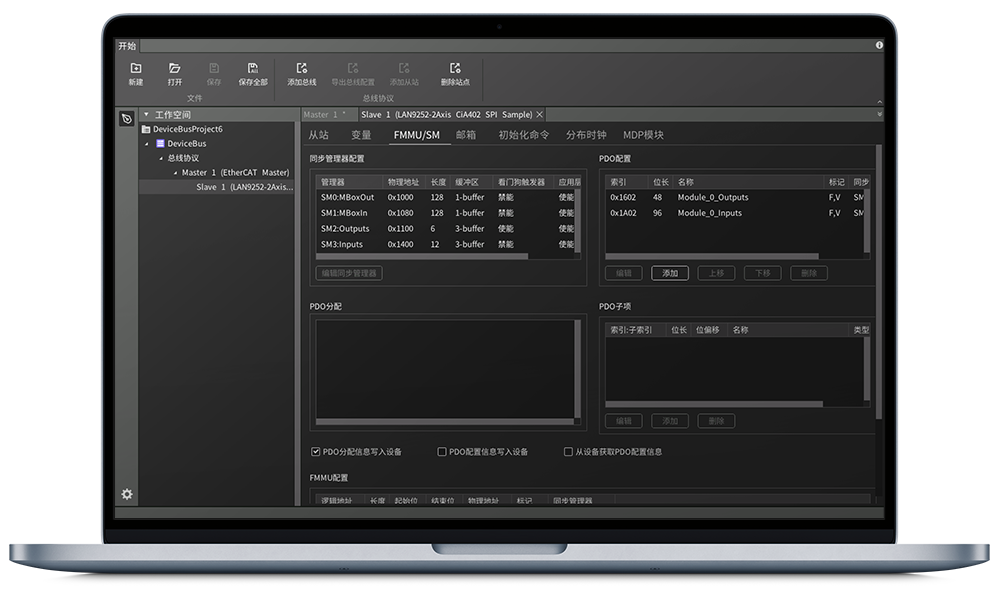

AWStudio EtherCAT configuration software
The AWStudio (Motion Control Version) software provides the configuration function of EtherCAT. You can quickly get the configuration file of ENI by scanning the device or manually configuring the EtherCAT slave device. It reduces the threshold for users to use EtherCAT devices and improves the development efficiency.

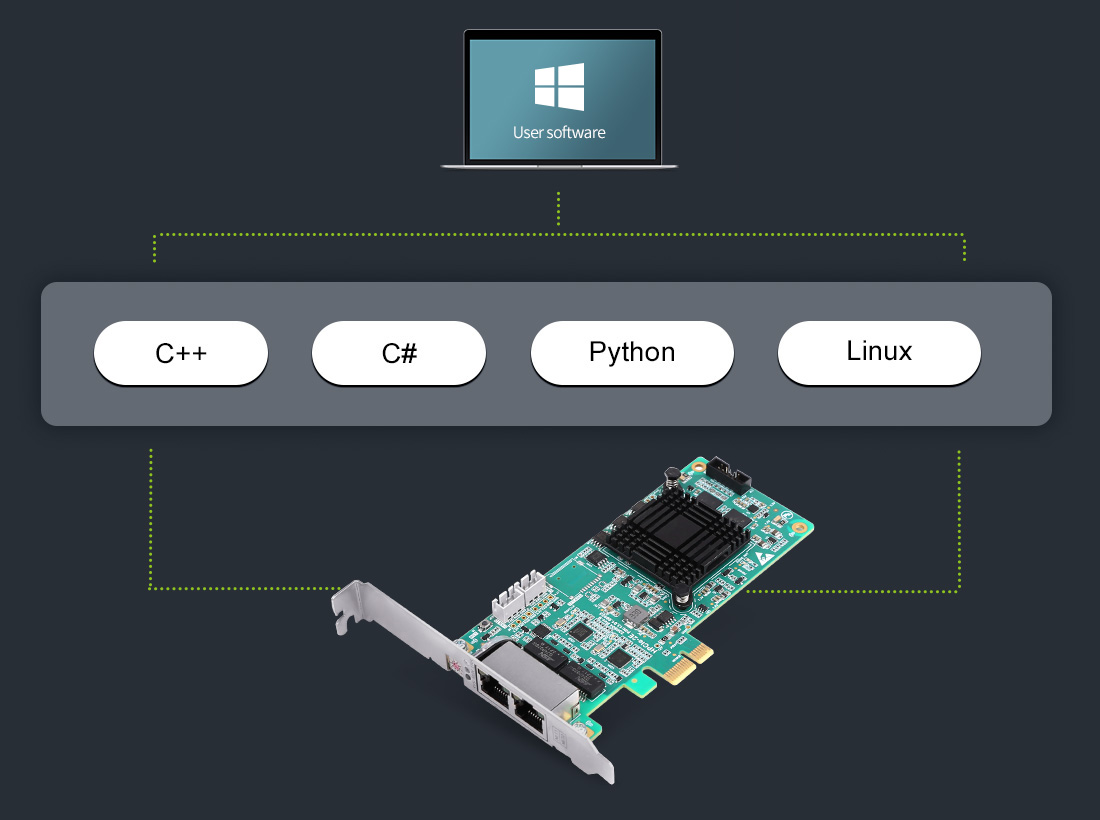

Efficient and easy-to-use secondary development function
EtherCAT master card provides secondary development library, and supports various development environments such as VC, VB, C#, Linux, Python, Windows, etc. You can seamlessly switch between different interfaces only by changing the device type, which is efficient and easy to use.

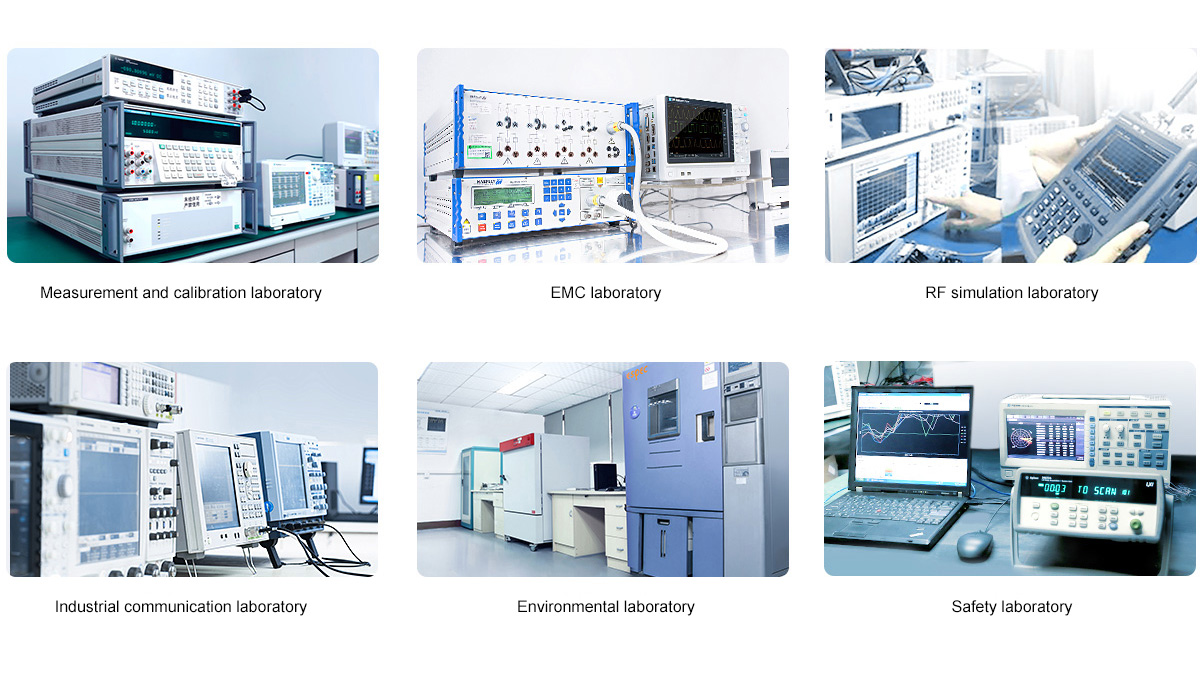

Conduct rigorous testing to guarantee stability, reliability and quality
EtherCAT master card has passed the rigorous verification of 6 scientific research laboratories, ensuring that it is still stable and reliable in severe environments.
