Industrial serial server

Serial interface is the mainstream interface of simple front-end devices in industrial field. In order to make the devices quickly merge into Ethernet and realize centralized monitoring and management, Zhiyuan Electronics provides an industrial serial server with embedded TCP/IP protocol stack, various configuration modes and working modes so that users can easily connect single or multiple serial devices to Ethernet and complete corresponding network applications without complicated development work required.

Industrial serial server

Selection Table

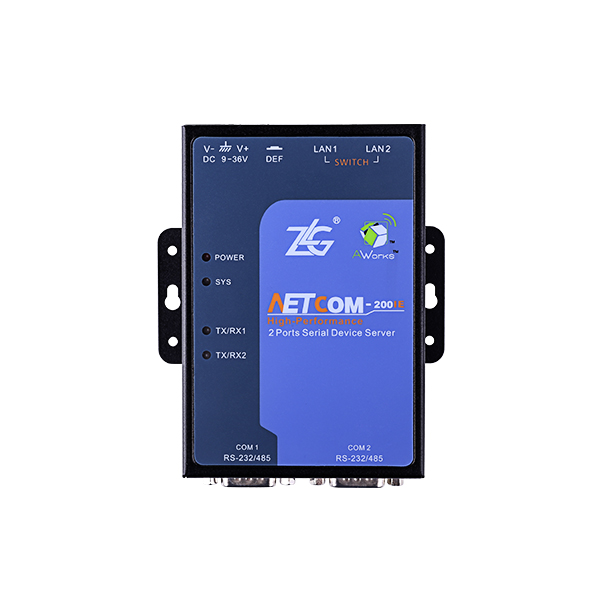

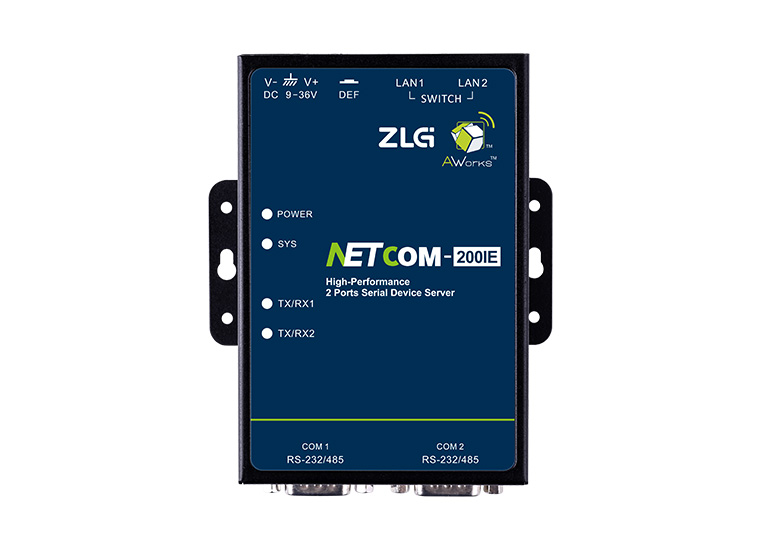

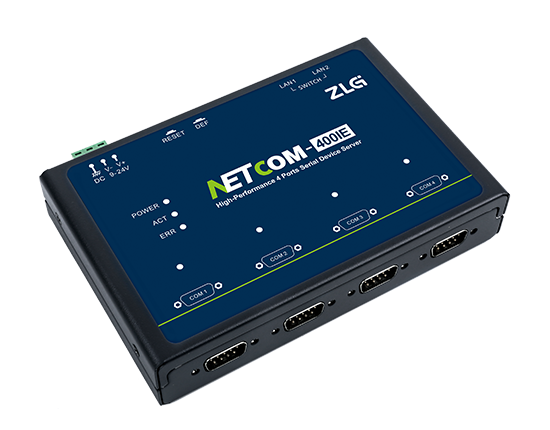

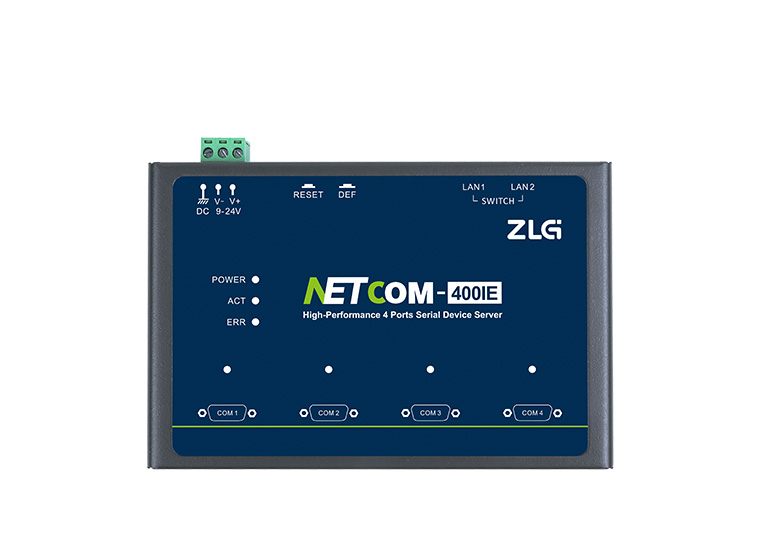

Model		NETCOM-200IE	NETCOM-400IE
Ethernet interface	Rate	10/100M	10/100M
	Quantity	2	2
	Specification	RJ45	RJ45
	Isolation withstand voltage	1500VDC	2000VDC
	Cascade	Supported	Supported
Serial port	Quantity	2	4
	Interface specification	DB9	DB9
	Isolation withstand voltage	2500VDC	2500VDC
	RS-232	Supported	Supported
	RS-485	Supported	Supported
	RS-422	-	Supported
Baud rate	RS-232	300bps~230.4Kbps	300bps~230.4Kbps
Baud rate	RS-422/485	300bps~500Kbps	300bps~500Kbps
Working mode	TCP Server	Supported	Supported
	TCP Client	Supported	Supported
	UDP	Supported	Supported
	Virtual serial port	Supported	Supported
Supply voltage		9~36V	9~24V
Operating temperature		-20~70℃	-40~85℃
Online document		Click to visit

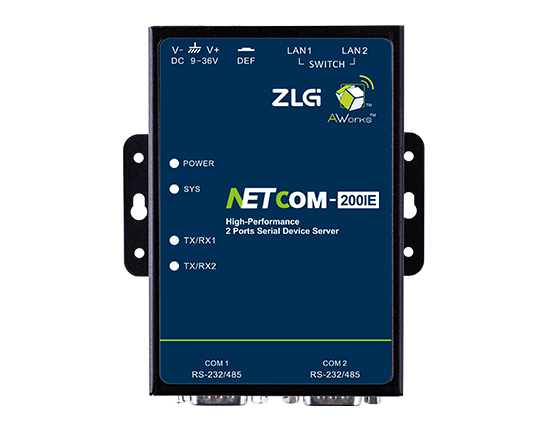

New switch serial server

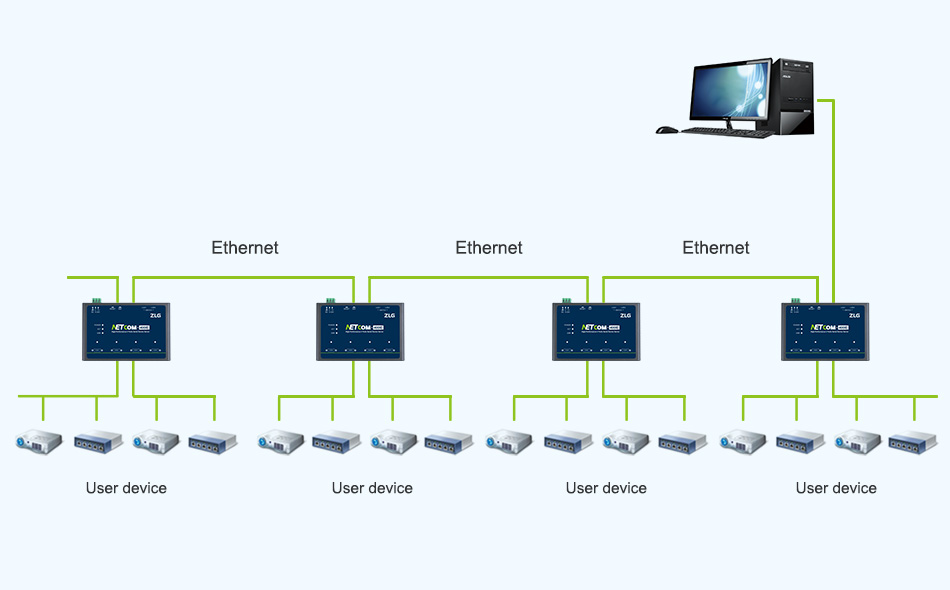

Dual-port integrated switch function, cascade system building

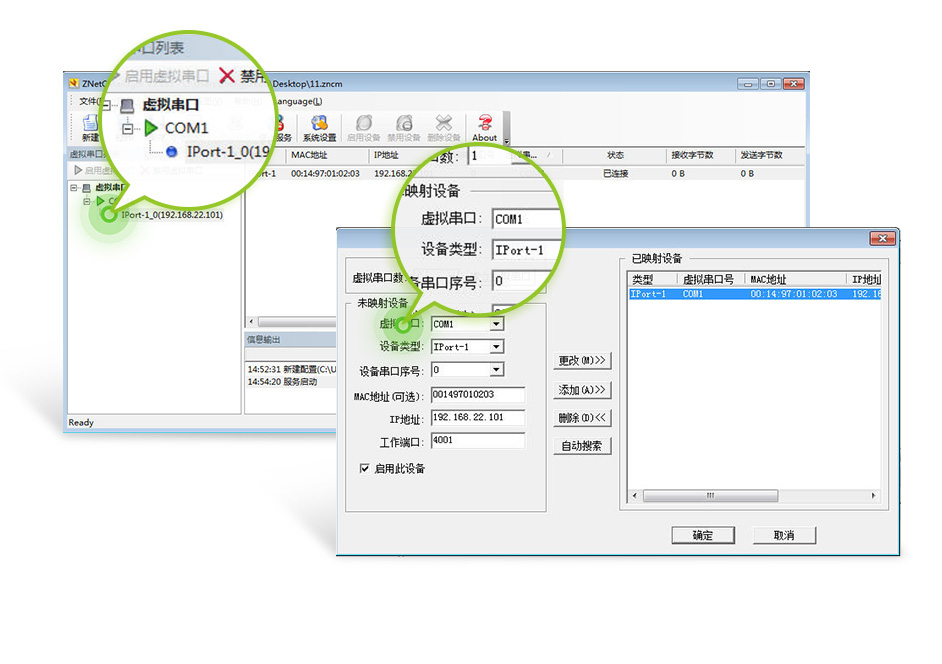

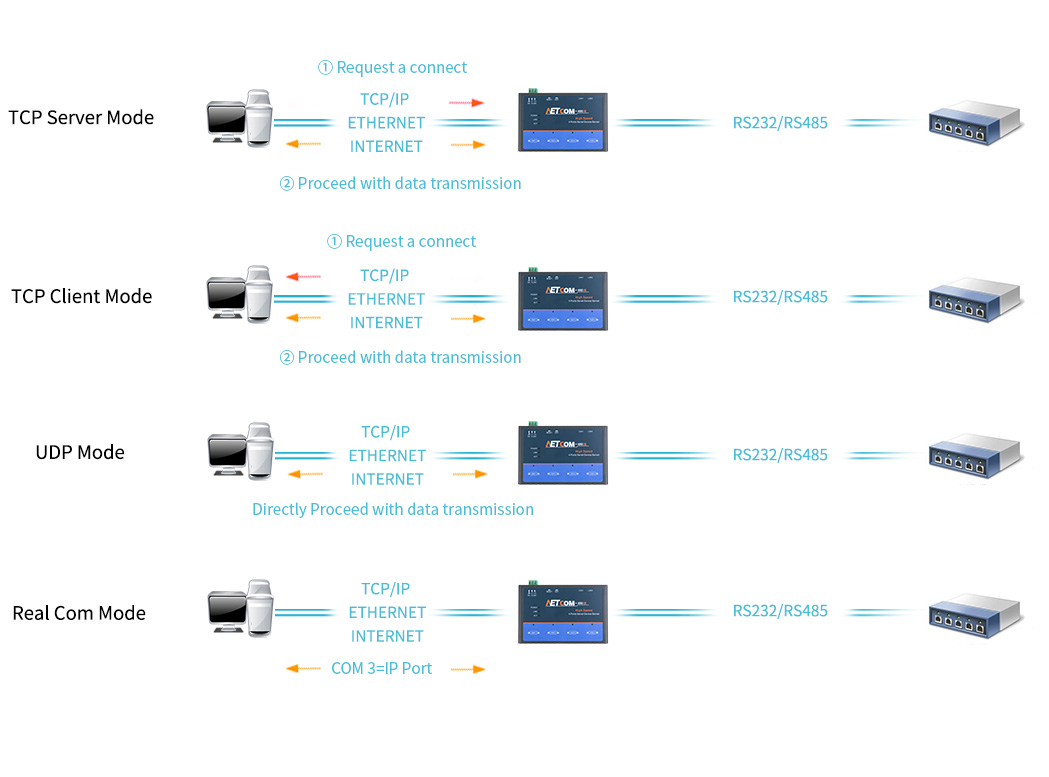

Support TCP Sever/TCP Client/UDP and virtual serial port

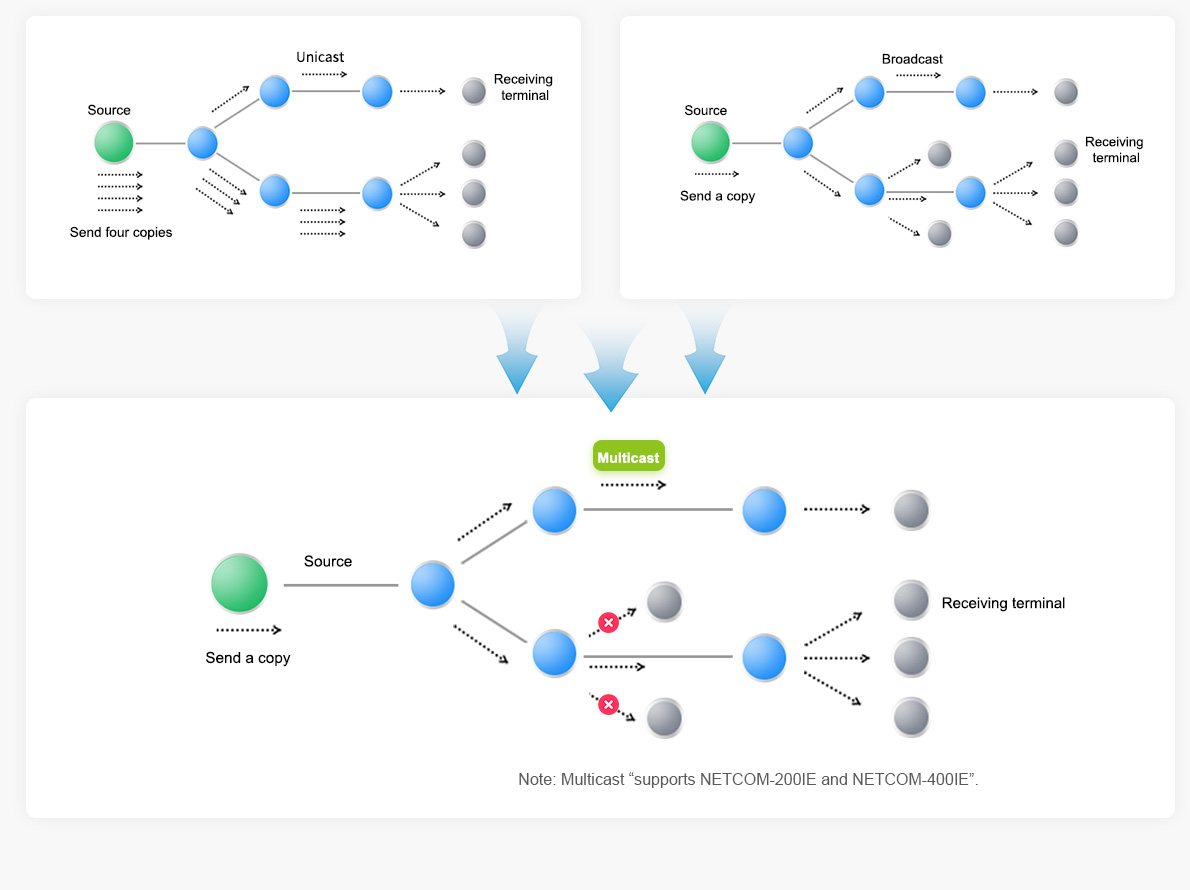

Support multicast function in the UDP mode

Using multicast function can improve the efficiency of data transmission and reduce the possibility of congestion in the backbone network

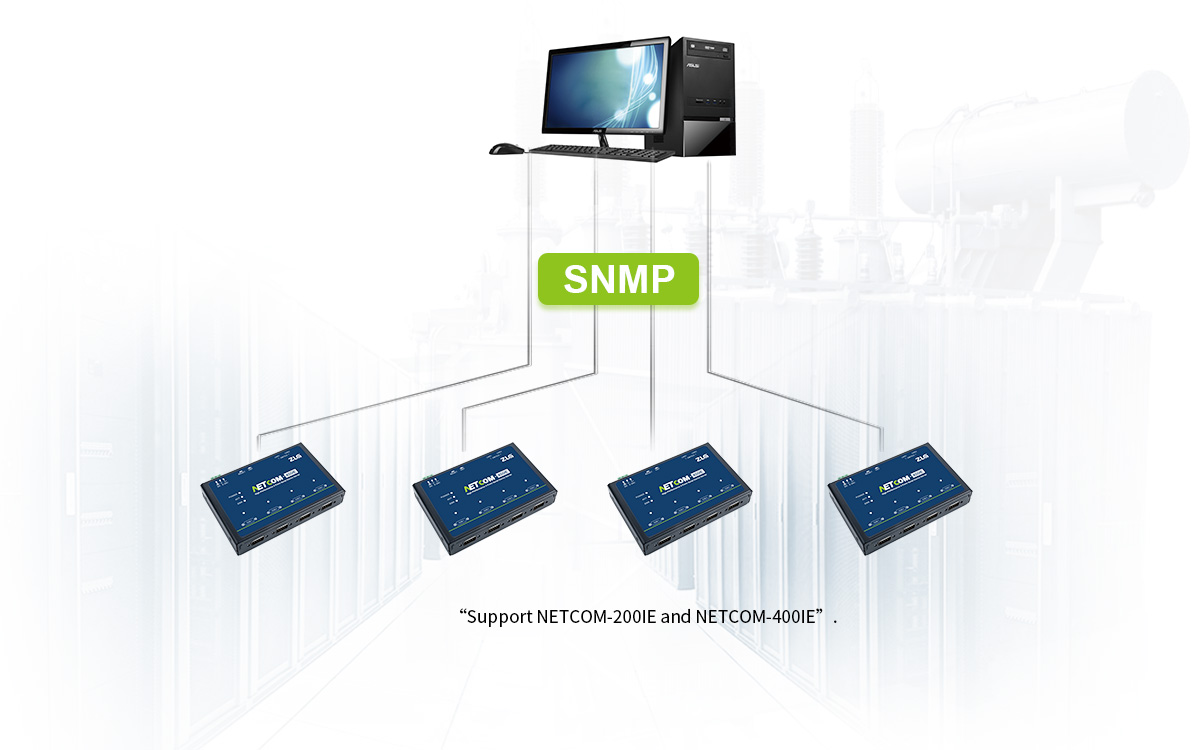

Support network management protocol SNMP

Using SNMP, the management workstation can remotely manage all the network devices of this protocol, including monitoring the network state, changing the configuration of network devices, and receiving network event warnings
