SiP upgraded, a more convenient isolated bus solution

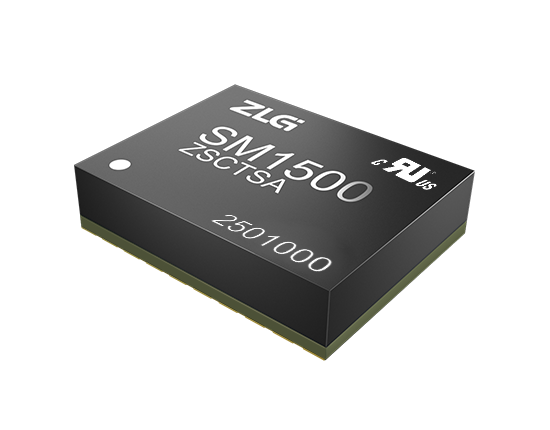

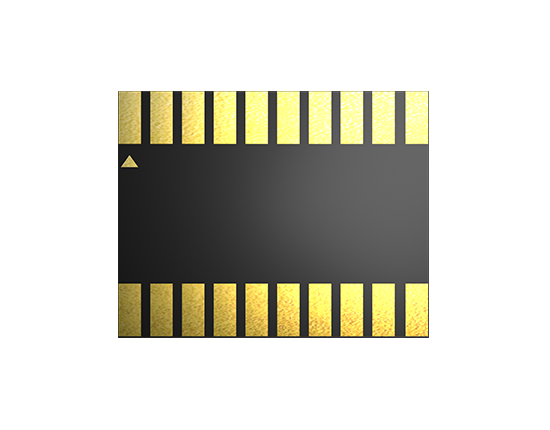

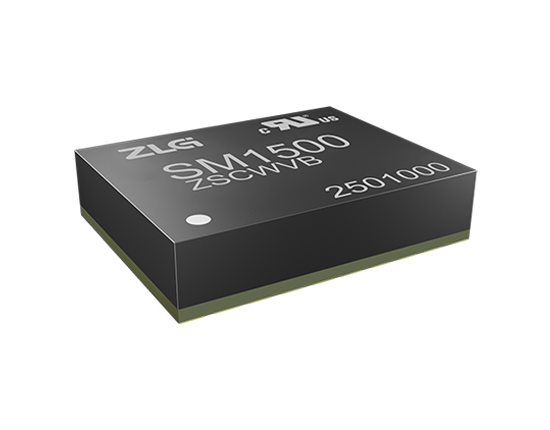

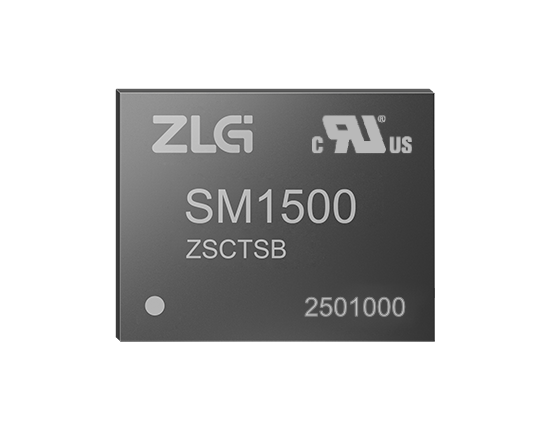

SM series isolated CAN transceiver chip is packaged in DFN, which supports automatic patch production. Moreover, the “three-in-one” design of the product can realize the complete CAN bus isolation of a single chip, and the dimension is only 12.45*9.85*3.00mm. Compared with the traditional chip solutions, it has a convenient application mode, which can effectively improve the production efficiency of users and the stability of products.

Performance enhanced, stronger adaptability to working conditions

SM series fully isolated CAN transceiver chip is made by mature SiP technology. It has passed the EMC test, combining with the product’s ultra-wide temperature adaptation range of -40~125℃. It has stronger adaptability to working conditions, meeting the requirements of most industrial field applications.

Power innovation, a better power supply solution

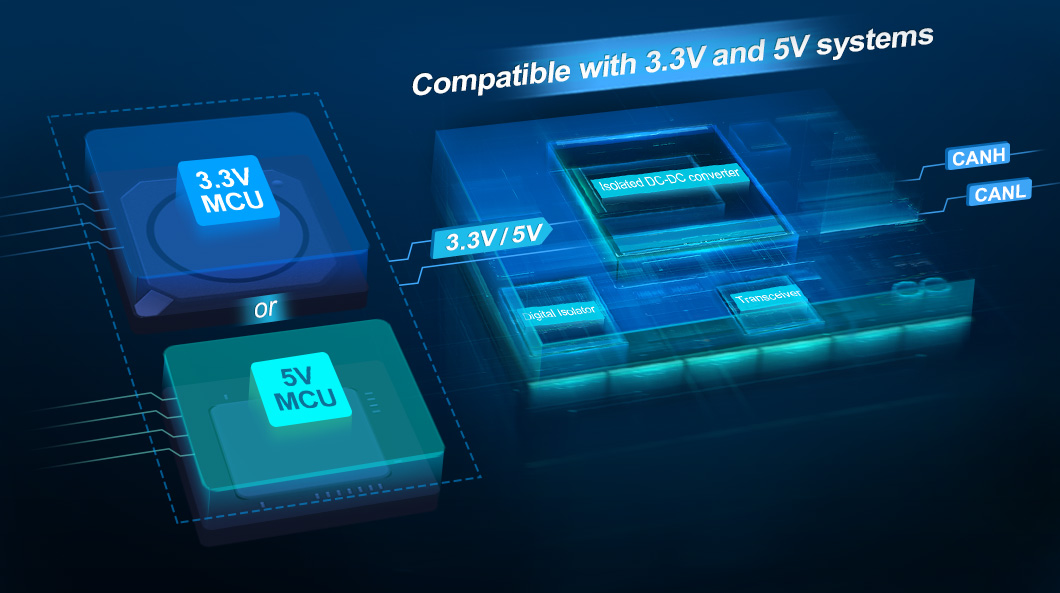

SM series fully isolated CAN transceiver chip realizes technical innovation based on ZLG independent power IC design. Compared with conventional products, it has built-in short circuit protection, over-temperature protection and other protection circuits. Combining with the excellent transceiver level compatibility characteristics of the product, it is compatible with 3.3 V and 5 V systems, meeting the requirements of most CAN bus isolation design.
