The first integrated EtherCAT slave module in China
DPort-ECT

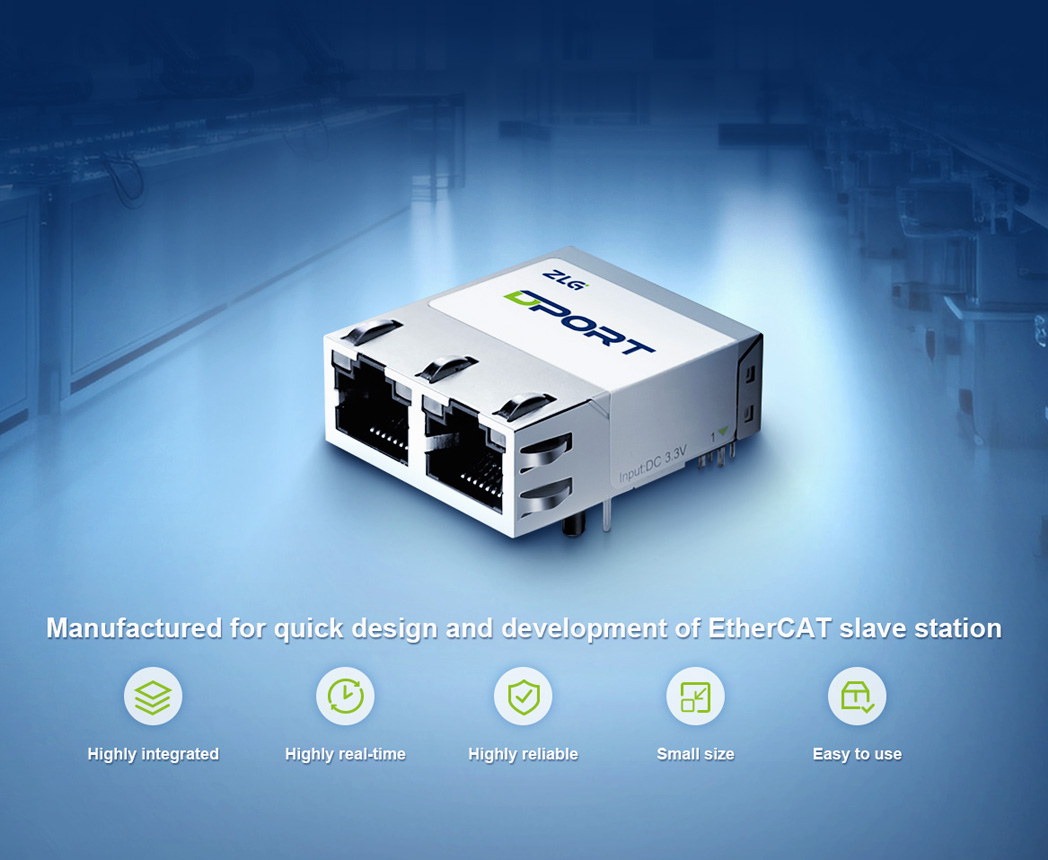

Four-in-one integrated design helps quickly develop EtherCAT slave station

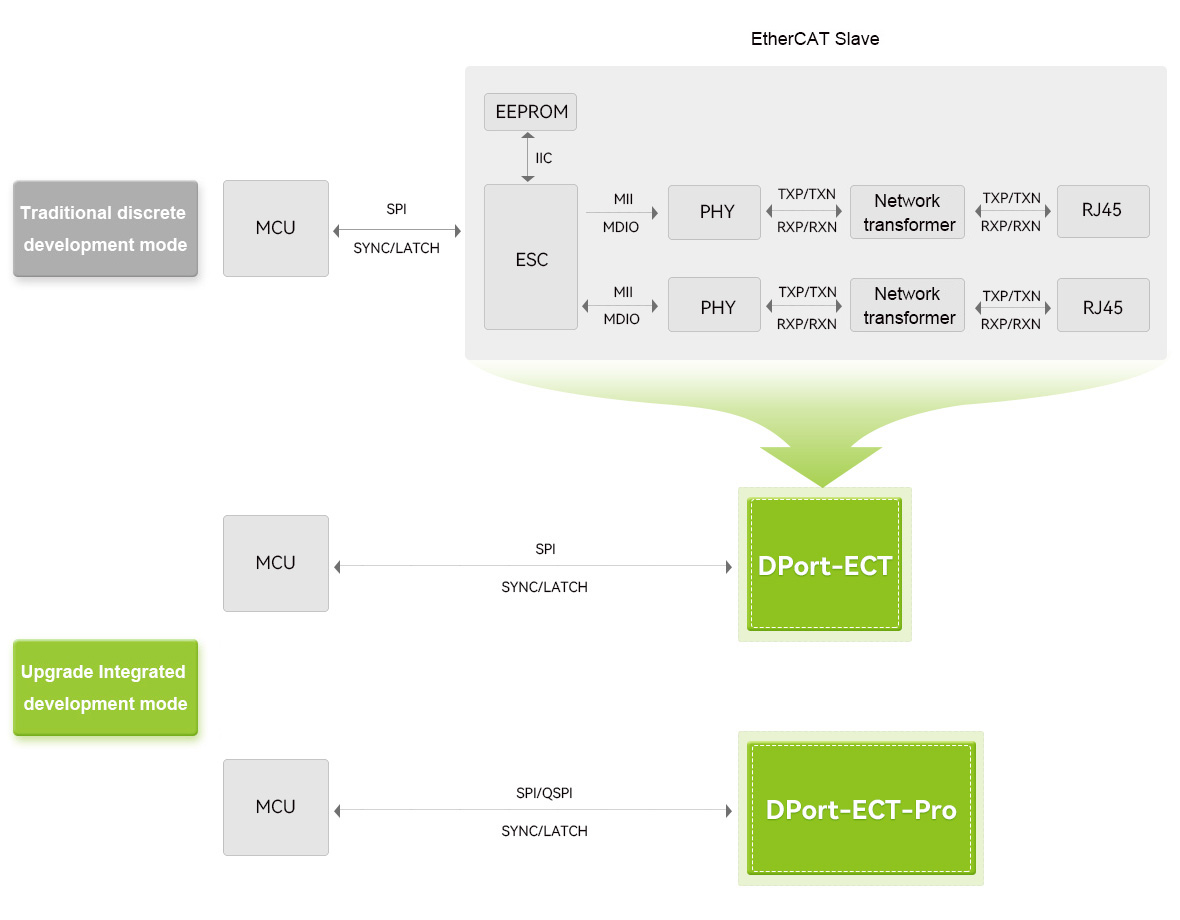

DPort-ECT is a four-in-one integrated EtherCAT slave module, which packages ESC chip, PHY chip, network transformer and RJ45 socket in a high integration density. You can easily implement EtherCAT slave development by simply using an MCU to control the SPI communication interface and the configuration pins of the slave device.
High-speed transmission, low-delay communication
DPort-ECT is designed according to the standard of EtherCAT protocol, featuring quick data transmission, low communication delay, high synchronization accuracy, and excellent real-time performance.
Small size

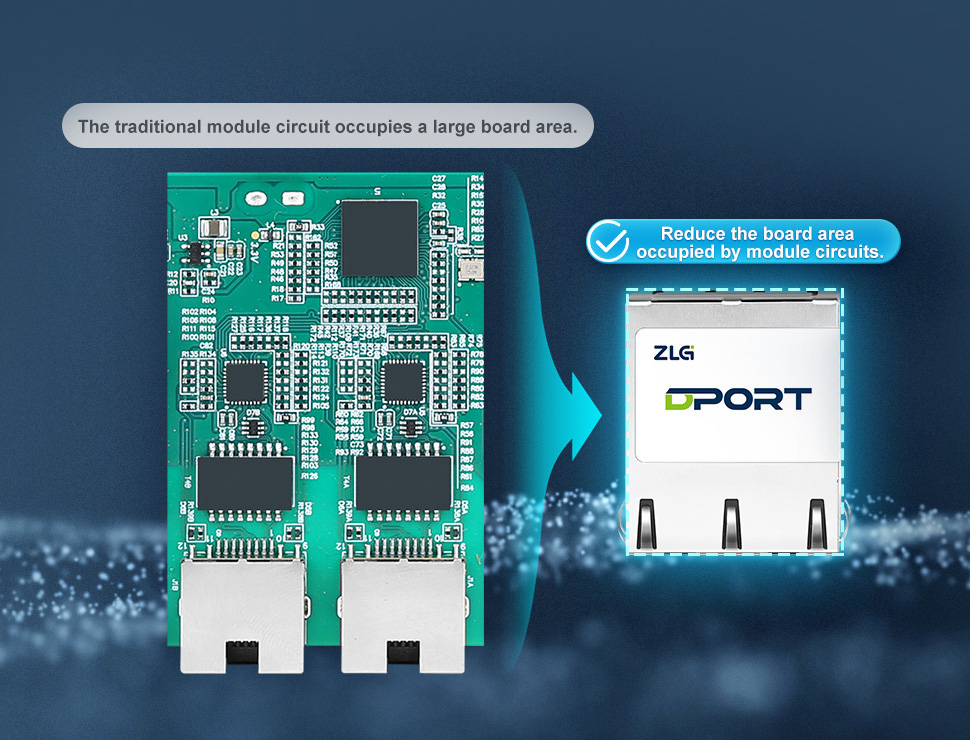

DPort-ECT module is small and highly integrated, which can reduce the board area occupied by module circuits and greatly reduce the complexity and cost of the system.
Design at industrial grade, high reliability

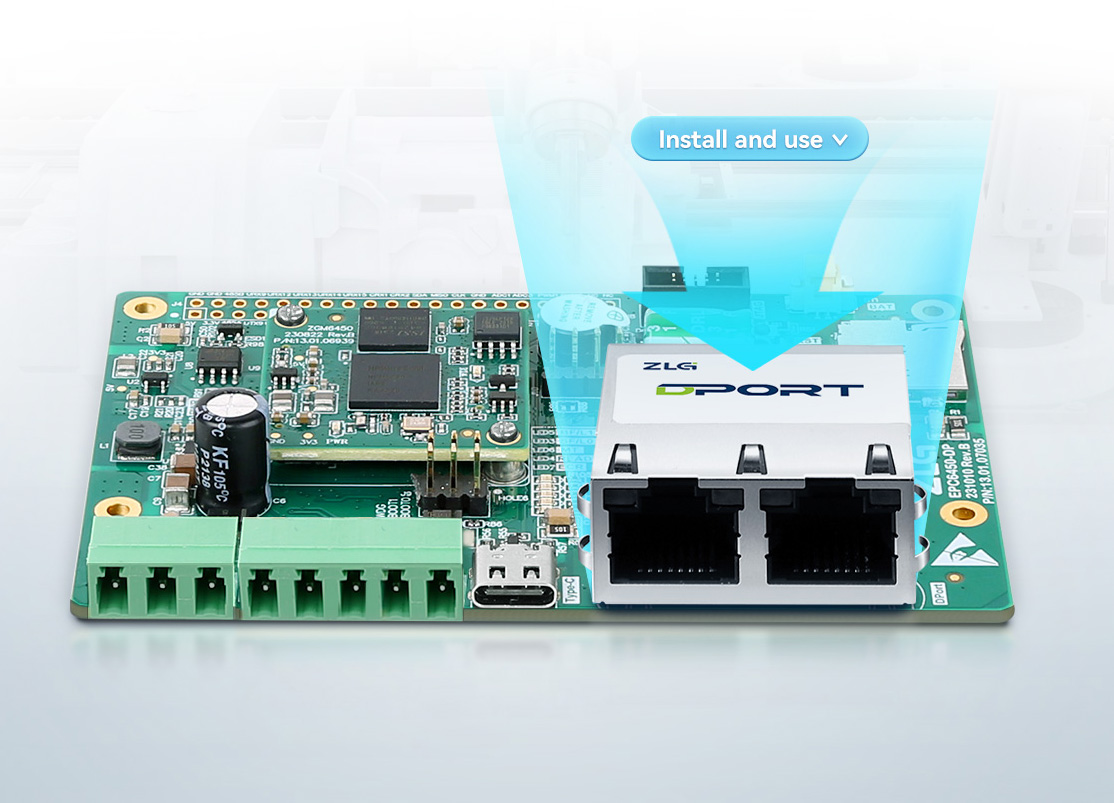

Simple deployment, easy to use
Parameter List
| Product model | DPort-ECT | DPort-ECT-Pro |
|---|---|---|
| Number of Ethernet interfaces | 2 | 2 |
| Master control interface | SPI (the clock frequency supports up to 20MHz) | SPI/QSPI (the clock frequency supports up to 80MHz) |
| Interface level | 3.3V | 3.3V |
| Rate | 10/100Mbps self-adaption | 10/100Mbps self-adaption |
| Supply voltage | 3.3V±3% | 3.3V±3% |
| DC jittering | ≤15ns | ≤15ns |
| Operating temperature | -40℃~+85℃ | -40℃~+85℃ |
| Storage temperature | -40℃~+85℃ | -40℃~+85℃ |
| Relative humidity | 5%~90% (non-condensing) | 5%~90% (non-condensing) |
| Electromagnetic compatibility | ESD immunity test: Level 4 Lightning (surge) immunity test: Level 3 EFT immunity test: Level 3 Test of conducted disturbance induced by RF field: 10V | ESD immunity test: Level 4 Lightning (surge) immunity test: Level 3 EFT immunity test: Level 3 Test of conducted disturbance induced by RF field: 10V |
| Evaluation board | EPC6450-DP (excluding DPort module), EPC103-DP (excluding DPort module) | EPC6450-DP (excluding DPort module, only supports SPI)、 EPC103-DP (excluding DPort module, only supports SPI). |
| Product purchase | Buy | Buy |
