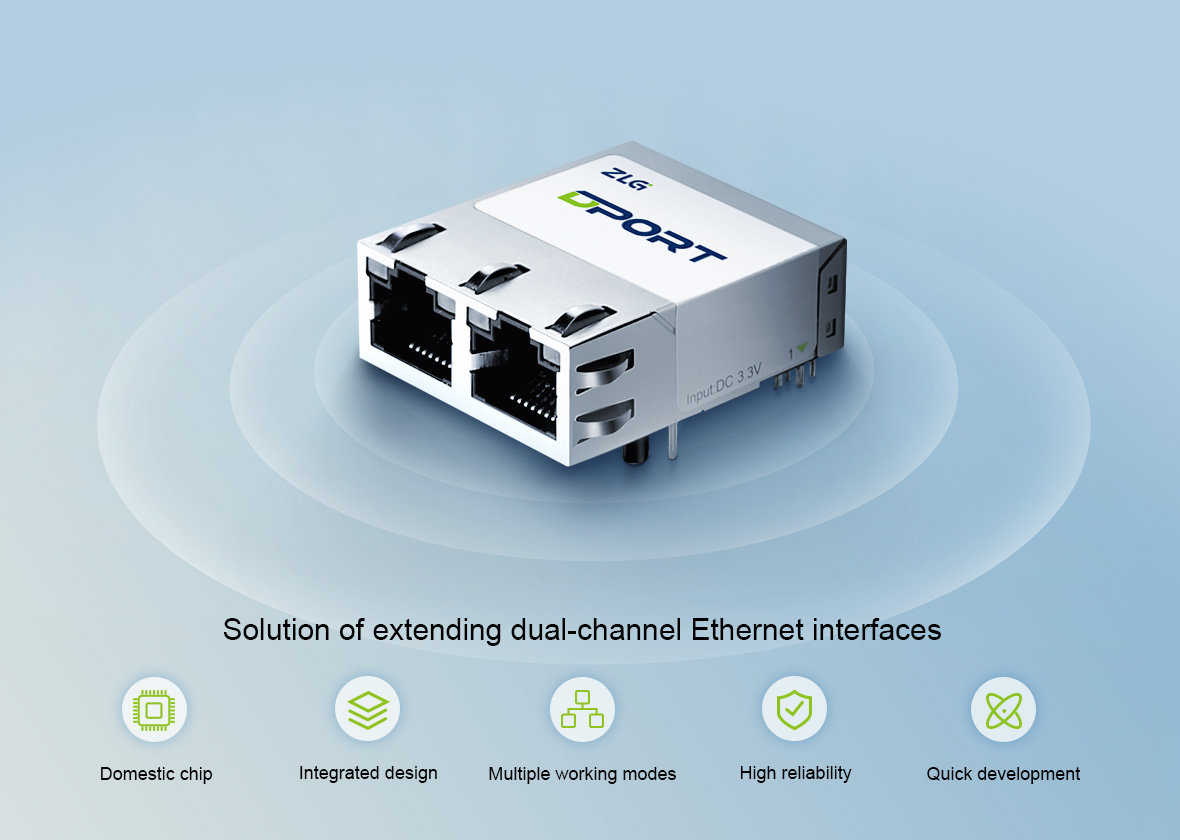

The first integrated dual-channel Ethernet passthrough module in China
DPort-MM
Extend dual-channel Ethernet interfaces

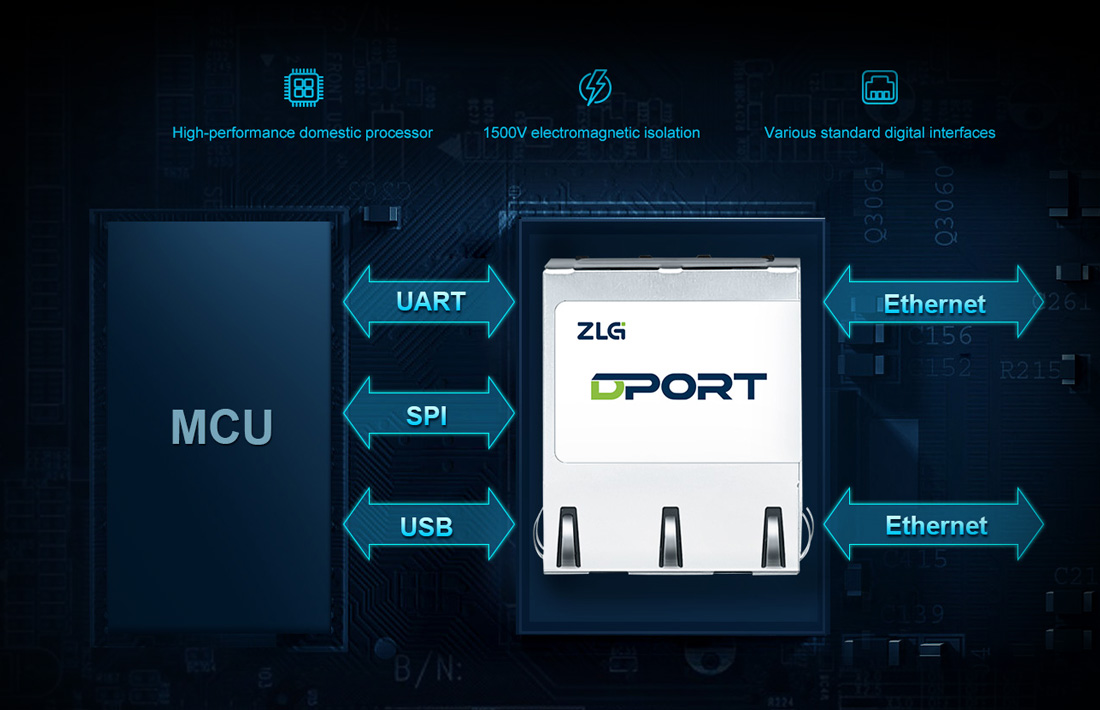

DPort-MM supports UART, SPI and USB to extend dual-channel Ethernet interfaces. UART, SPI and USB are provided for flexible options. Ethernet electromagnetic isolation is more reliable.
Four-in-one integrated design helps shorten the R&D cycle

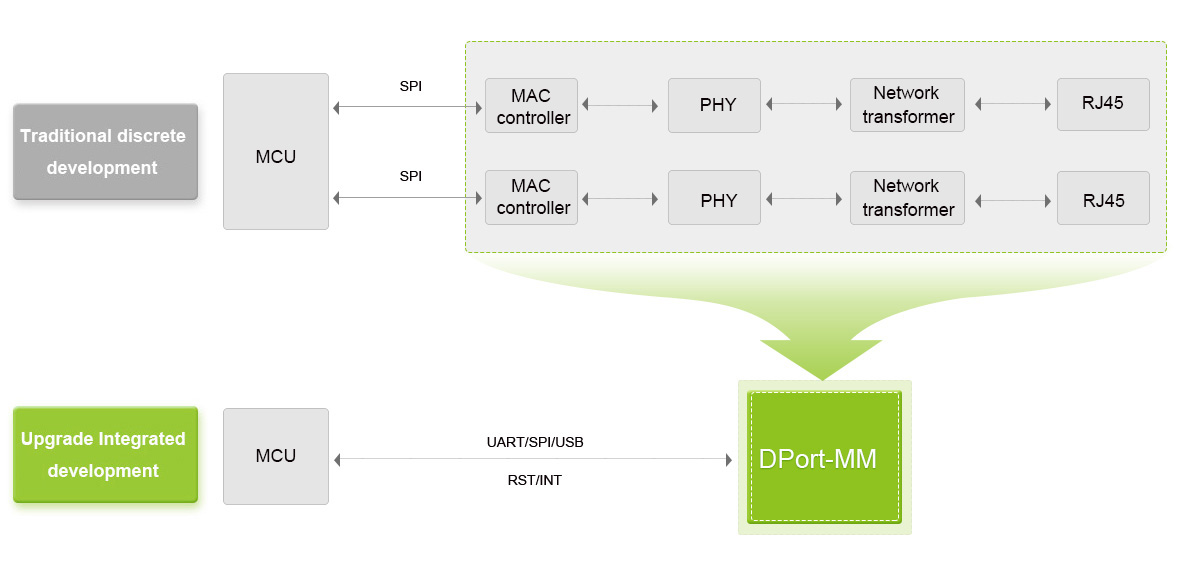

DPort-MM is a four-in-one integrated dual-channel transparent transmission module, which packages MCU, PHY, network transformer and RJ45 socket in a high integration density. You can easily use the embedded Ethernet by simply connecting MCU and DPort-MM.

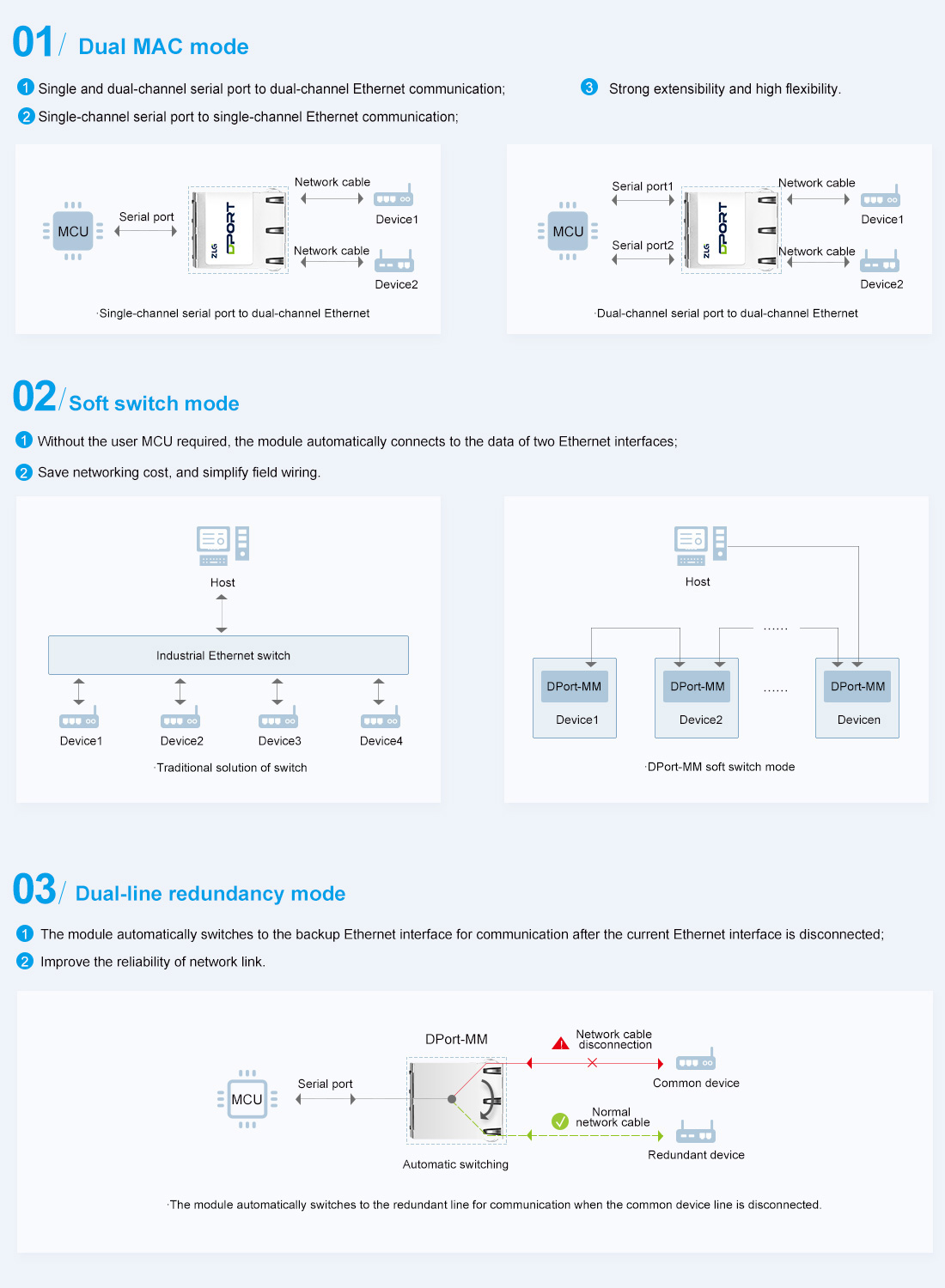

Multiple working modes

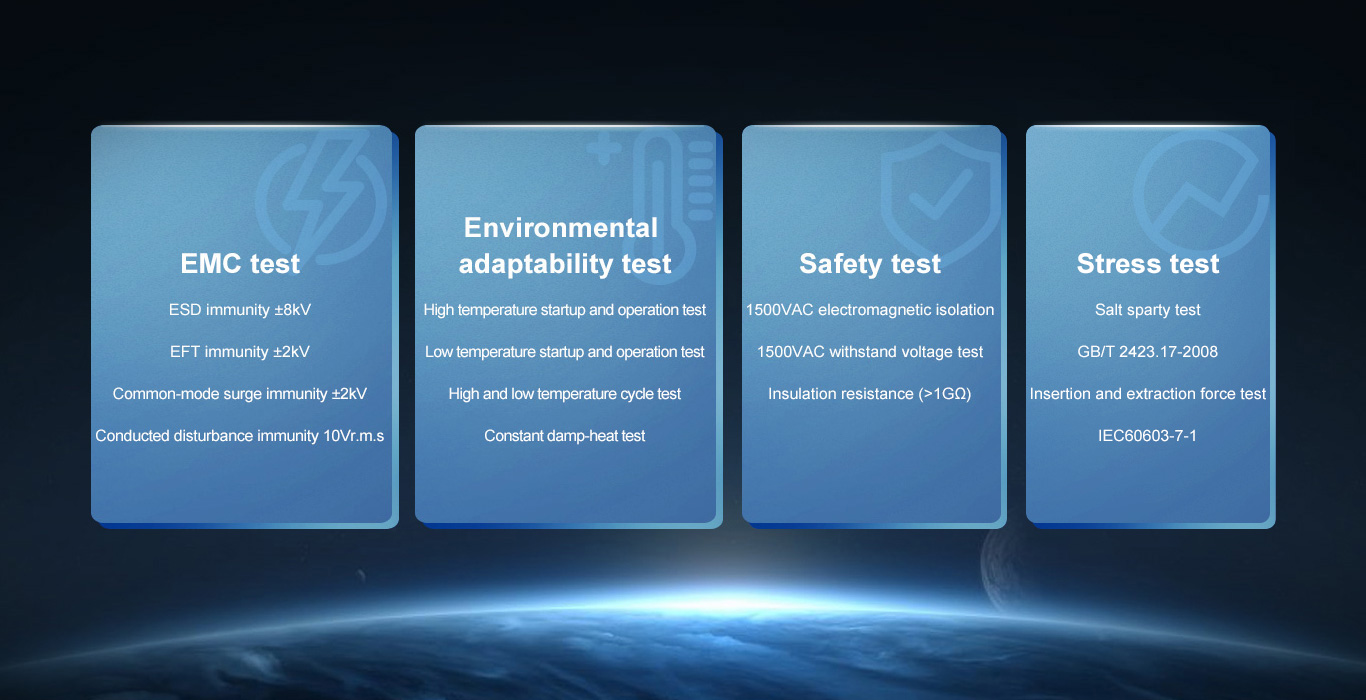

Design at industrial grade, high reliability

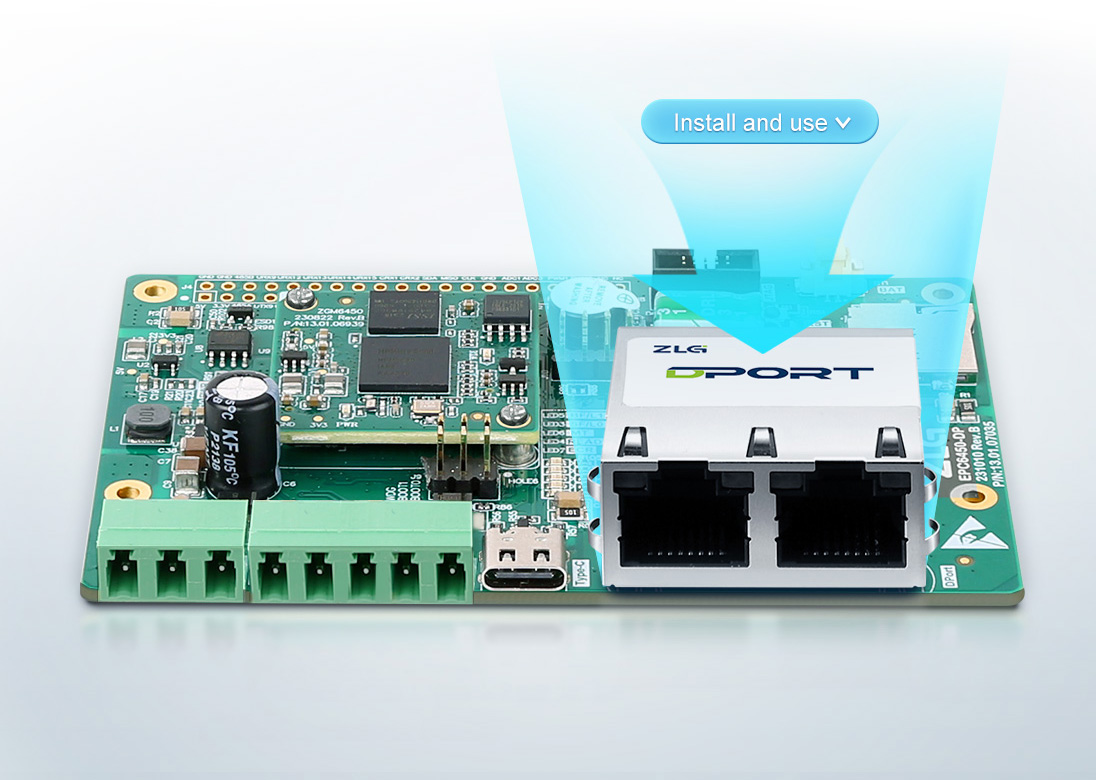

Simple deployment, easy to use
Parameter List
| Product model | DPort-MM |
|---|---|
| Type of Ethernet interface | UART、SPI、USB |
| Number of Ethernet interfaces | 2 |
| Number of serial ports | 3 (including debugging serial port DUART) |
| Baud rate | 300-921600bps |
| Data bit | 5~8bit |
| Check bit | NONE、ODD、EVEN |
| Number of sockets | 14 |
| Working mode | Dual MAC mode, soft switch mode, dual-line redundancy mode |
| Voltage | 3.3V~±3% |
| operating current | 210mA@3.3V |
| Operating temperature | -40℃~85℃ |
| Storage temperature | -40℃~90℃ |
| Relative humidity | 5%~95%(non-condensing) |
| Evaluation board | EPC6450-DP (excluding DPort module) |
| Product purchase | Buy |
