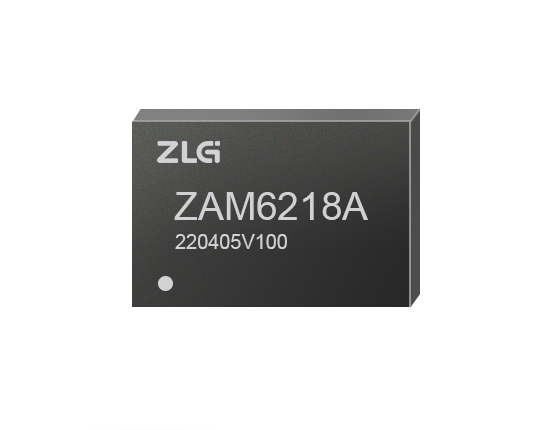

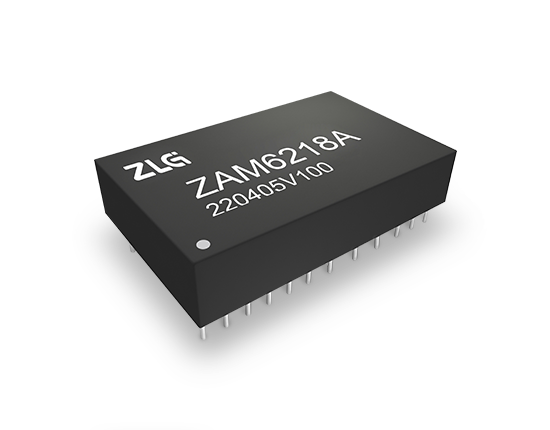

ZAM6218A is a thermocouple (T-type and K-type) temperature measurement module developed by Zhiyuan Electronics for multi-channel industrial field temperature measurement application. It supports 8-channel thermocouple sensors, and its measurement accuracy is up to 0.02%±0.1℃.
The module adopts micro-volume design, which is easier to be integrated into the temperature measurement system and provides reliable temperature measurement solutions for customers.
Product Parameters
| Product model | Sensor type | Electrical isolation | Number of channels | Measuring range (℃) | Rate (SPS) | Accuracy (℃) | Working environment (℃) | Cold end type | Communication interface | Package | Product dimension (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|

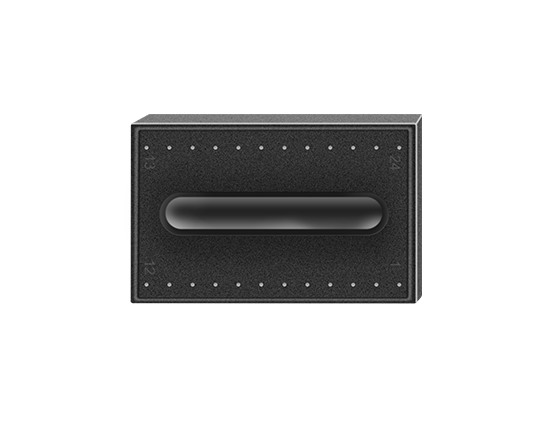

| ZAM6218A | K-type and T-type thermocouples | Non-isolated | 8 | K：-100~+400 T：-100~+350 | 24 | 0.02%±0.1 | -40~+85 | Temperature measurement IC | IIC | DIP24 | 31.80×20.30×6.50 |
Simple and easy to use, digitally output measurement results

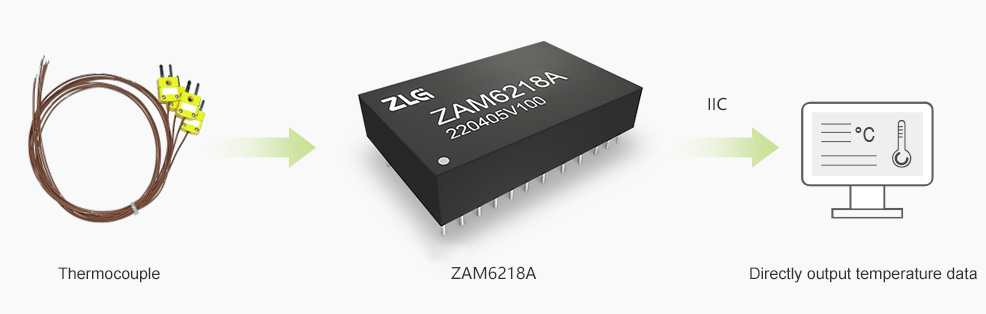

ZAM6218A temperature measurement module integrates MCU and ADC acquisition circuits into a small module, and directly outputs the measurement results in ℃ through IIC interface. This avoids the tedious design of acquisition circuit and shortens the development cycle.
Higher temperature measurement accuracy

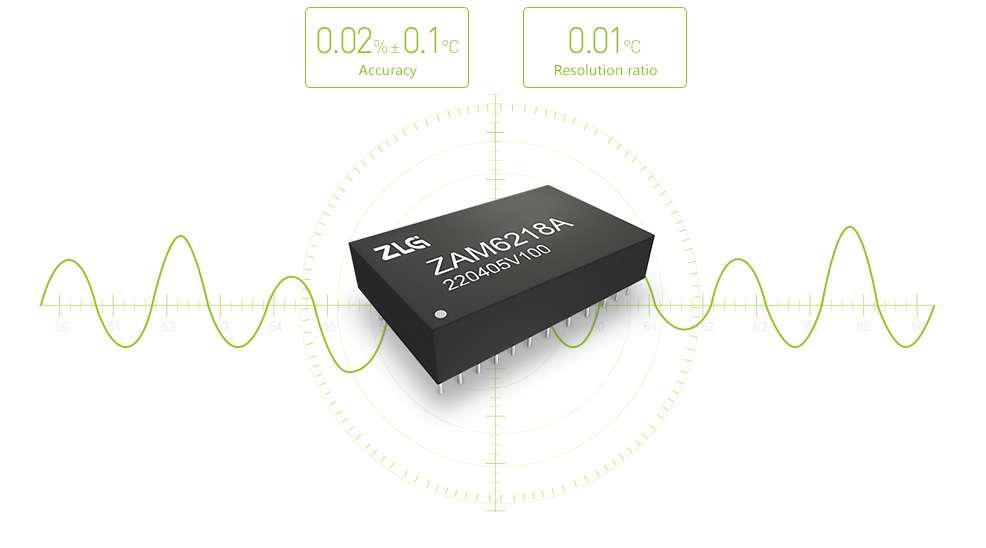

ZAM6218A module has an accuracy of 0.02%±0.1℃ and a resolution ratio of 0.01℃, which can capture subtle temperature changes and meet the requirements of users for high-precision temperature measurement.
Strict industrial-grade quality control

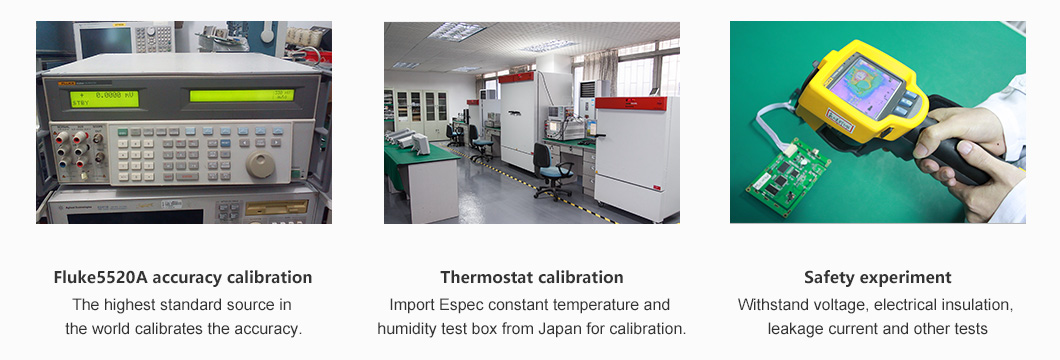

Zhiyuan temperature measuring module series products have undergone strict industrial-grade quality control tests before leaving the factory, and each finished module product will be checked and measured.
Stable and reliable, 8 channels for the first time in the industry,the best choice for multi-channel applications

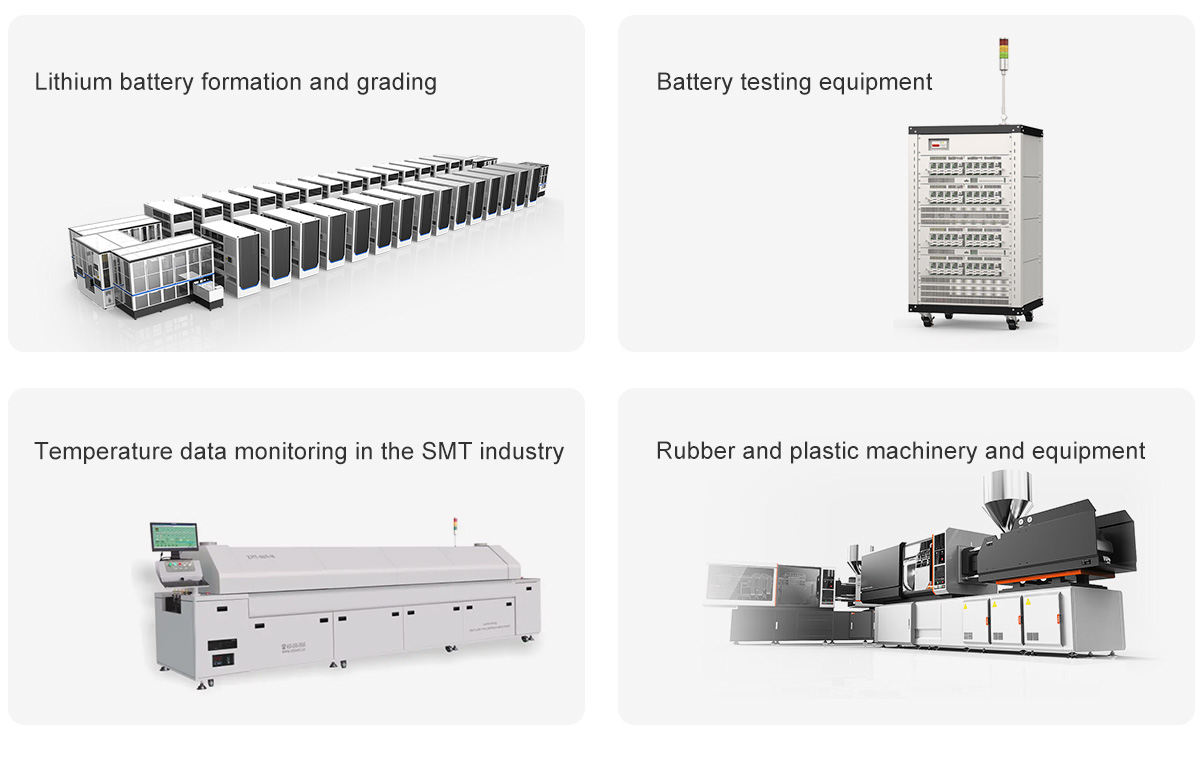

After nearly 20 years of technology accumulation, Zhiyuan Electronics has realized technical innovation and provided users with convenient, reliable and wide-range high-precision temperature measurement solutions. The product is mainly applied in multi-channel temperature measurement demand environments such as lithium battery back-end equipment, battery test system and temperature data monitoring in the SMT industry.

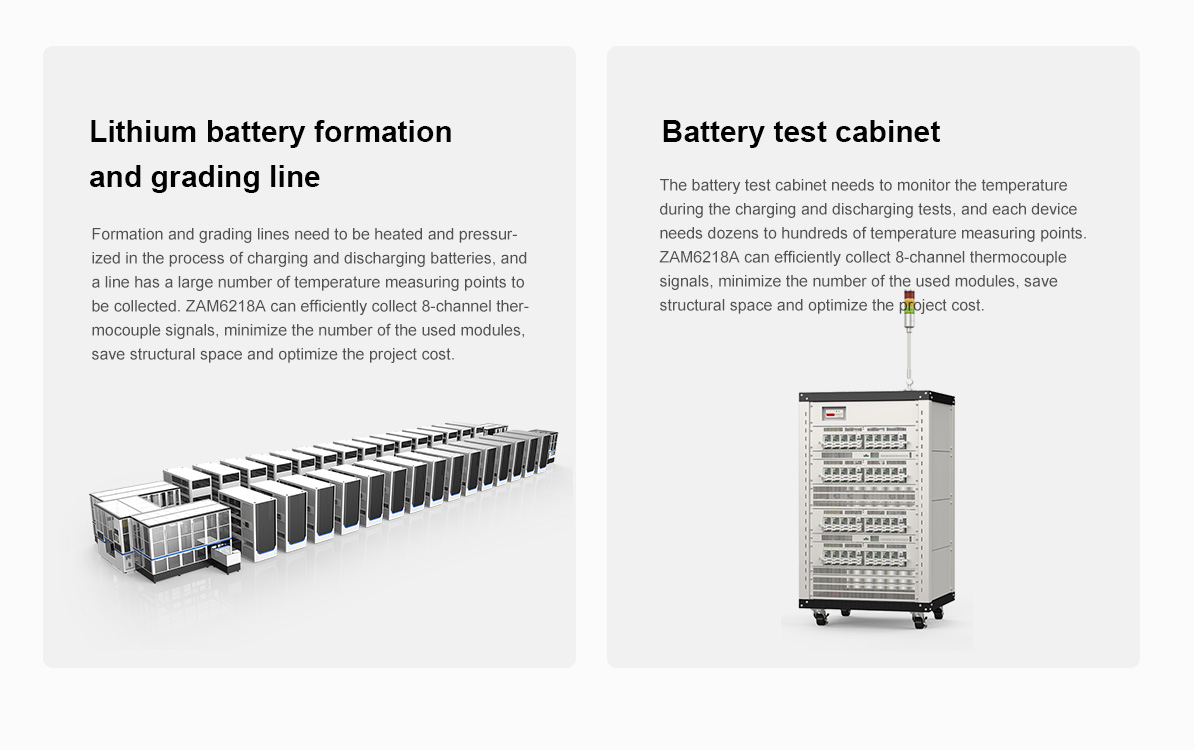

Industry cases
