ZigBee IoT gateway
GZ32M-I-Pro/GZ32M-I
GZ32M series is an industrial ZigBee IoT gateway, which is the core device of ZigBee ecosystem of ZLG Zhiyuan Electronics. It can realize various wired and wireless protocol transmissions, has built-in rich network management functions, and supports cloud access of MQTT protocol. It is suitable for industrial control, lighting, intelligent buildings, data acquisition and other application scenarios.
Selection Table
| Product model | Processor platform | Ethernet | 4G | Wi-Fi | GNSS （GPS） | RS-485 | Operating temperature | Humidity range | Cloud platform | Product dimension |
|---|---|---|---|---|---|---|---|---|---|---|
| GZ32M-I-Pro | Cortex®-A7 | 2-channel Ethernet | Supported | Supported | Supported | Supported | -40℃～+85℃ | 95%RH/+55℃ | MQTT | 165×116.2× 47.76 mm |
| GZ32M-I | Cortex®-A7 | 2-channel Ethernet | Not supported | Not supported | Not supported | Supported | -40℃～+85℃ | 95%RH/+55℃ | MQTT | 165×116.2× 47.76 mm |
*If secondary development is needed, please contact our sales department.

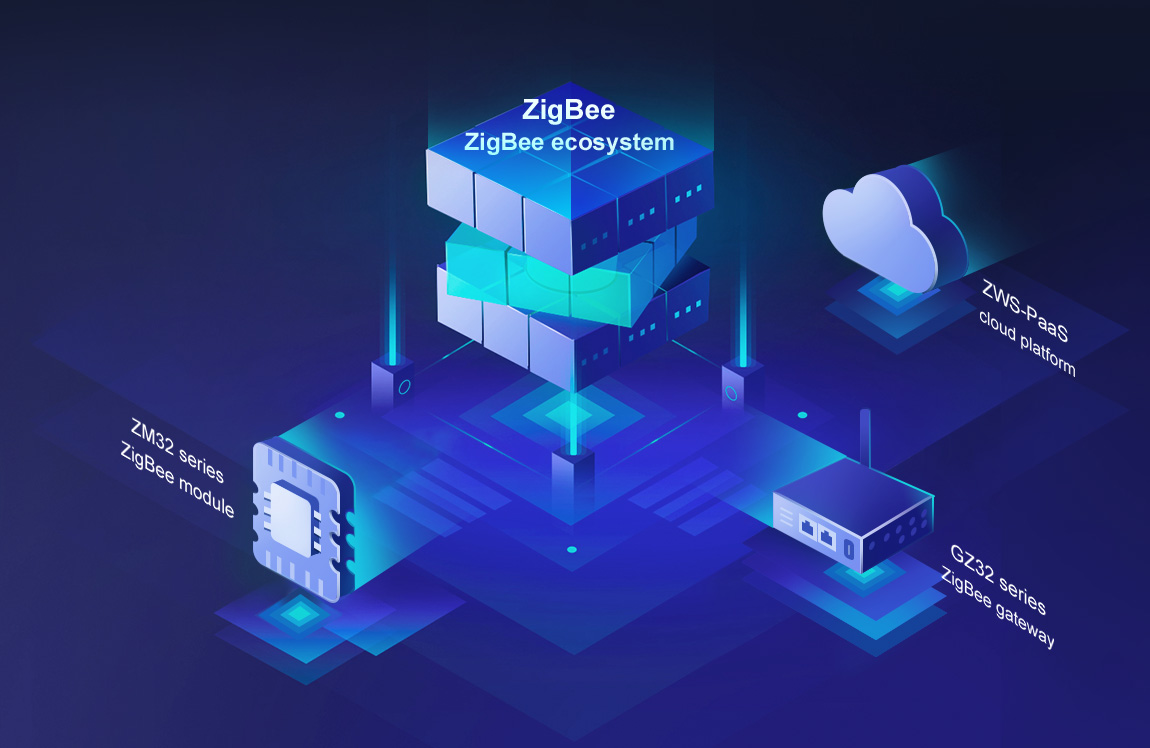

ZigBee ecosystem

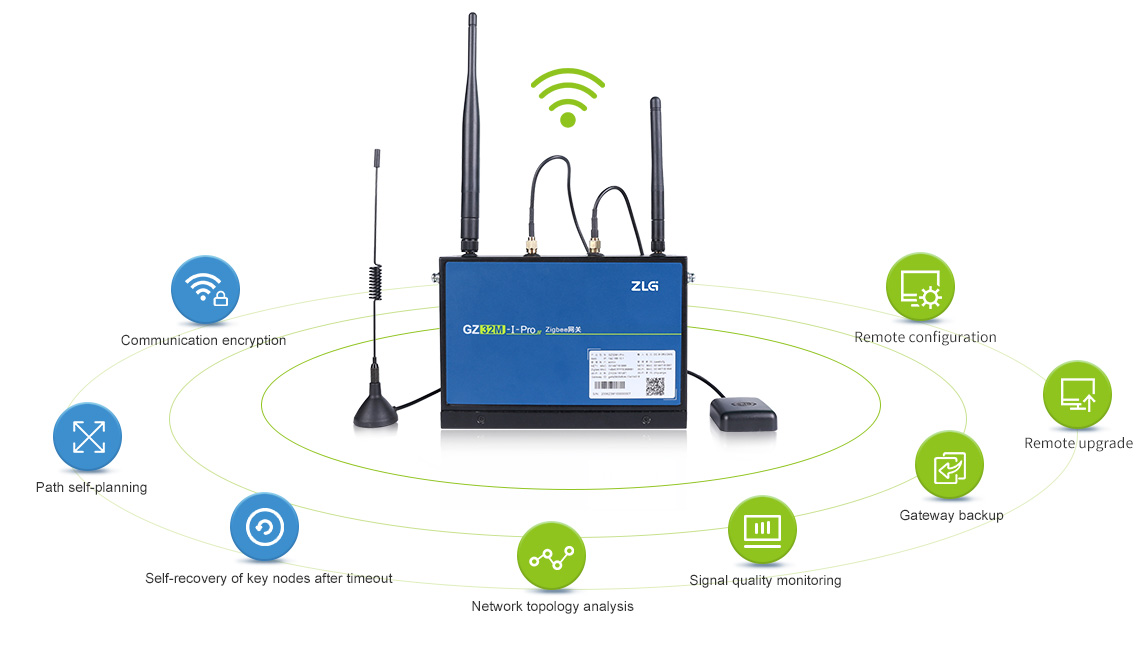

Rich network management functions
In the process of communication, in addition to the conventional unicast, broadcast and polling communication, ZigBee gateway features communication encryption, path self-planning, and self-recovery of key nodes after timeout.；
In the later maintenance, ZigBee gateway supports remote configuration, remote upgrade, signal quality monitoring, network topology analysis, gateway backup and other functions.
Quickly build a data transparent transmission network
GZ32 ZigBee gateway supports remote management. After the device is arranged on site, engineers can remotely connect the ZigBee network through the cloud platform, perform operations such as network access, configuration and network logout, and quickly open the wireless data channel.
Powerful wireless communication performance

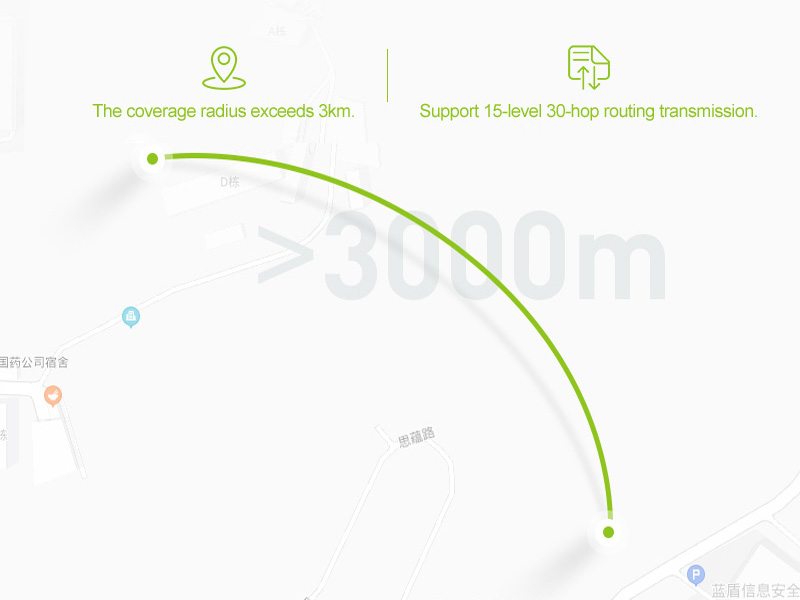

The downlink channel of GZ32 ZigBee gateway is used as a coordinator to connect the ZigBee network. The coverage radius of a single gateway exceeds 3km in an open environment. It supports 15-level 30-hop routing transmission at most, effectively increasing the communication distance.
The uplink channel of the gateway supports Ethernet, *4G, *Wi-Fi, *GNSS and other interfaces, and it can automatically switch the upload channel according to the network situation. (Only -Pro version supports 4G.)
* The identified interface is only supported by the -Pro version.
Cloud platform docking

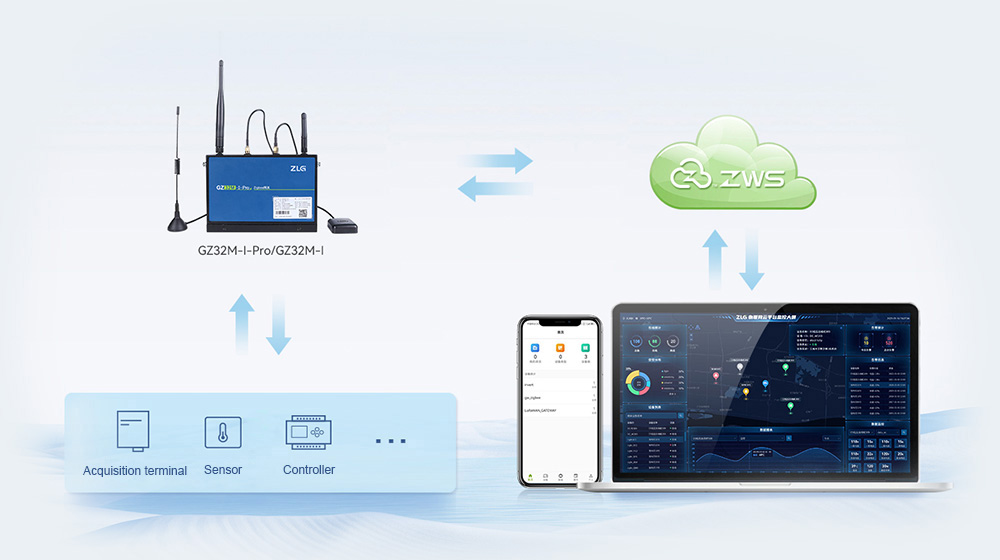

GZ32 ZigBee gateway has built-in cloud platform service, which can be connected to the ZWS IoT-PaaS cloud platform management network after opening the box. It can also be connected to other cloud servers through MQTT protocol.
Match with the ZWS IoT cloud platform to make equipment management and maintenance more efficient
Based on the ZWS IoT cloud platform independently developed by Zhiyuan Electronics, it supports the remote maintenance of the gateway, helping you build an exclusive IoT industry system, and making your equipment management and maintenance more efficient!
Quality at industrial grade
GZ32 ZigBee gateway has passed a series of industrial certification tests such as 8kV contact discharge and 2kV burst pulse immunity, ensuring the reliability and stability of industrial field application.
