ZM5825 industrial Wi-Fi+BLE module

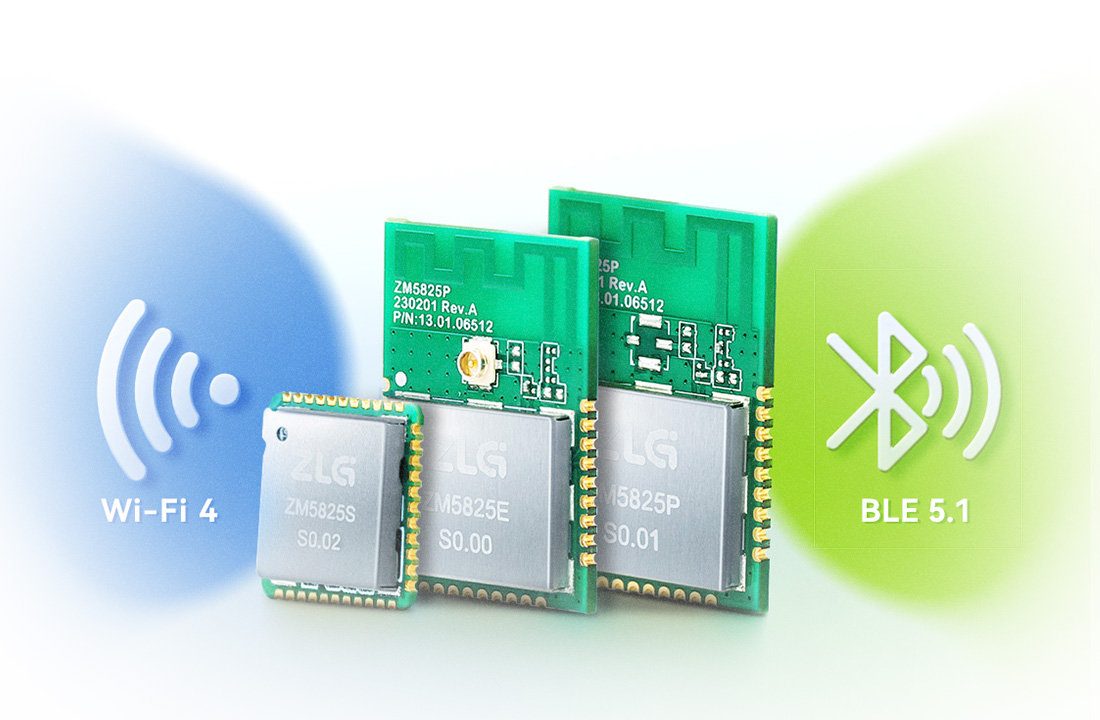

ZM5825 series Wi-Fi module supports the coexistence of Wi-Fi 4 and BLE 5.1 with 40MHz bandwidth, and it has a powerful wireless function. The product supports three Wi-Fi communication protocols of IEEE802.11 b/g/n, two working modes of wireless hotspot and wireless client, and adopts 20MHz/40MHz operation bandwidth. It can support a physical layer rate of up to 150Mbit/s.
Selection Table
| Product model | Product category | Wireless protocol | Wi-Fi working mode | Communication interface | RF output | Package dimension (mm) |
|---|---|---|---|---|---|---|
| ZM5825P | Transceiver Wi-Fi | IEEE802.11b/g/n&BLE 5.1 | AP/STA | SDIO @WiFi UART @BLE | PCB antenna | 18.0×25.0×2.7 |
| ZM5825E | IPEX connector | |||||
| ZM5825S | Stamp hole | 12.0×12.0×2.1 |
High-speed and stable communication, worry-free data transmission

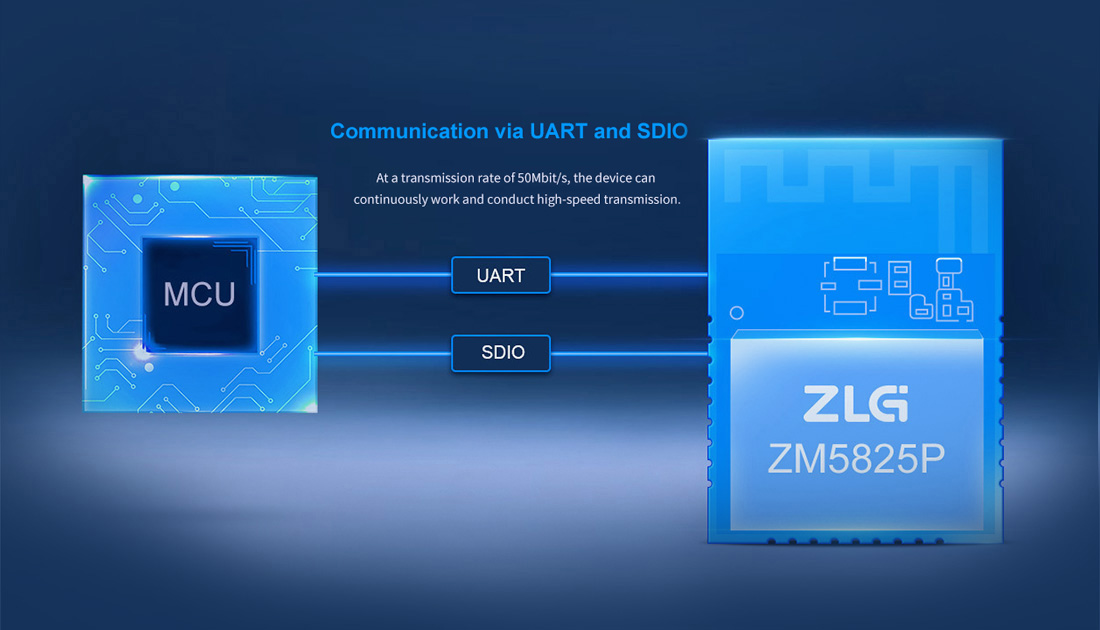

ZM5825 series Wi-Fi module communicates with the master control device via UART and SDIO, and the communication rate is high and stable. It can work continuously at a transmission rate of 50Mbit/s, helping customers develop their products at a high speed and go online stably.
Highly integrated and compact design

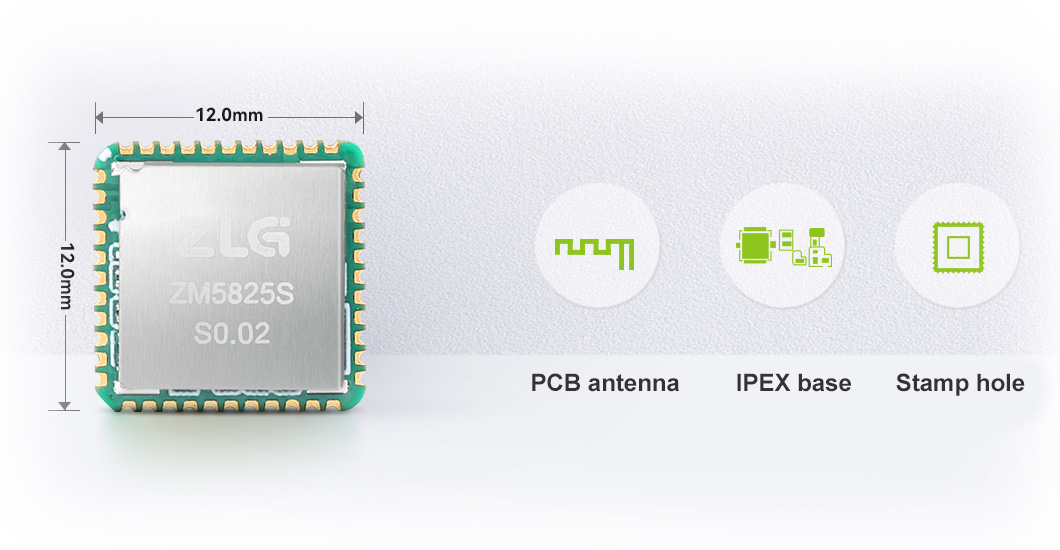

ZM5825 series Wi-Fi module integrates a complete RF transceiver circuit into a module, featuring high integration and small size. It has a variety of RF output forms such as PCB antenna, IPEX base and stamp hole. It is very flexible in use and convenient for customers to choose according to their actual use requirements.
Quality at industrial grade

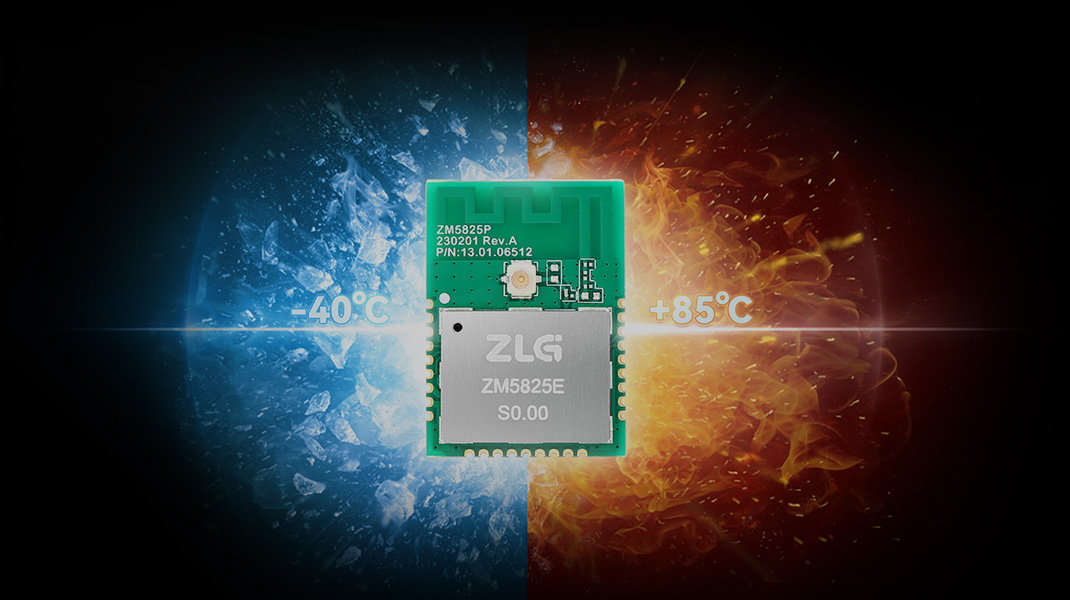

The quality at industrial grade promotes stable operation in a complex and harsh environment.
Strong driver compatibility

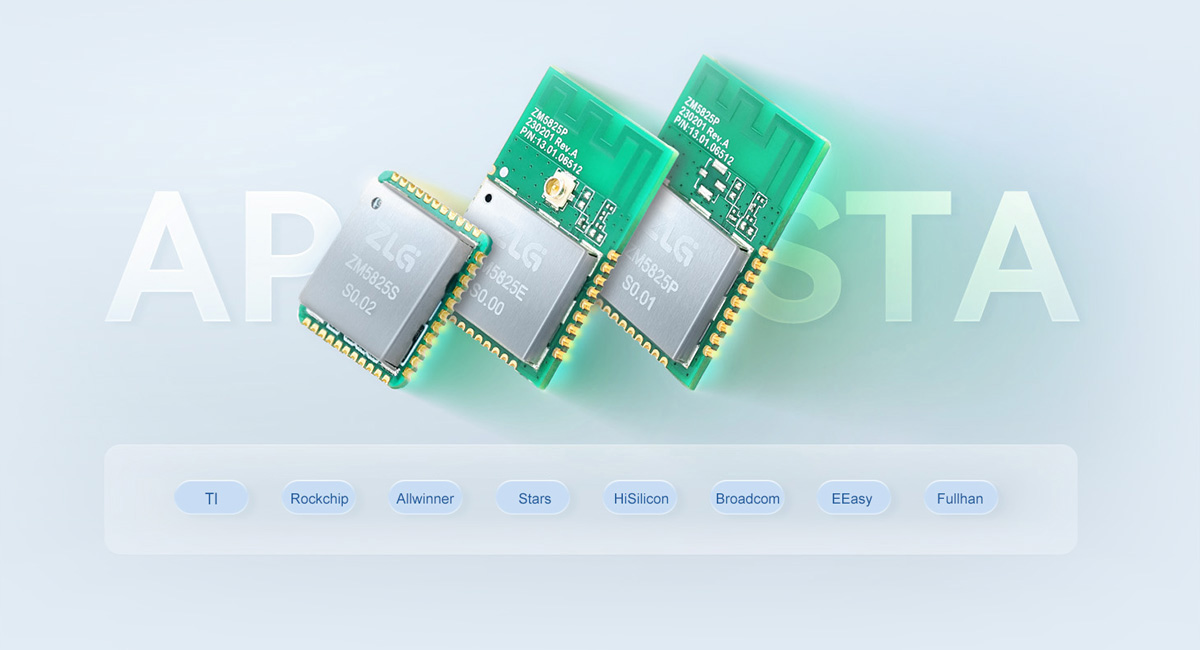

The product supports the coexistence of AP and STA. 8 STAs can be connected in the AP mode. With strong driver compatibility, it has been adapted to the platforms such as TI, Rockchip, Allwinner, Stars, HiSilicon, Broadcom, EEasy and Fullhan.

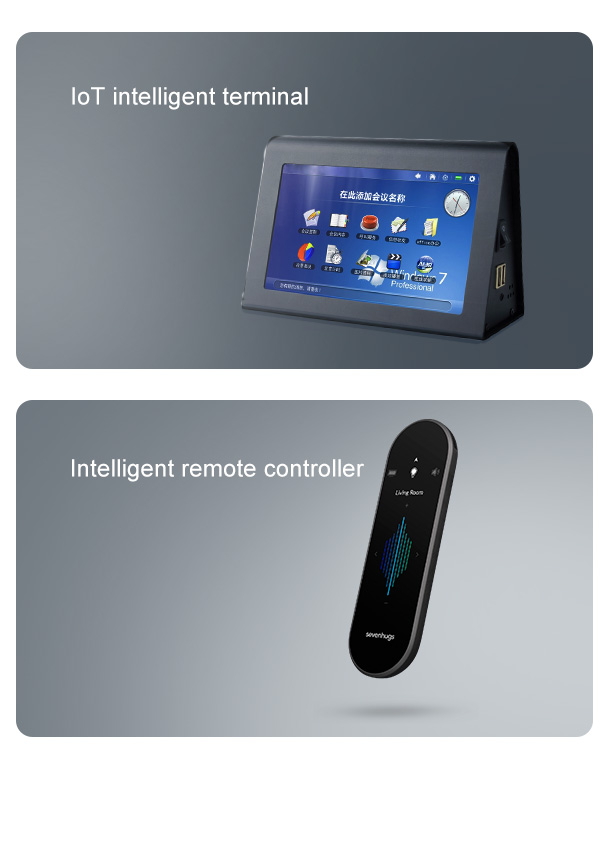

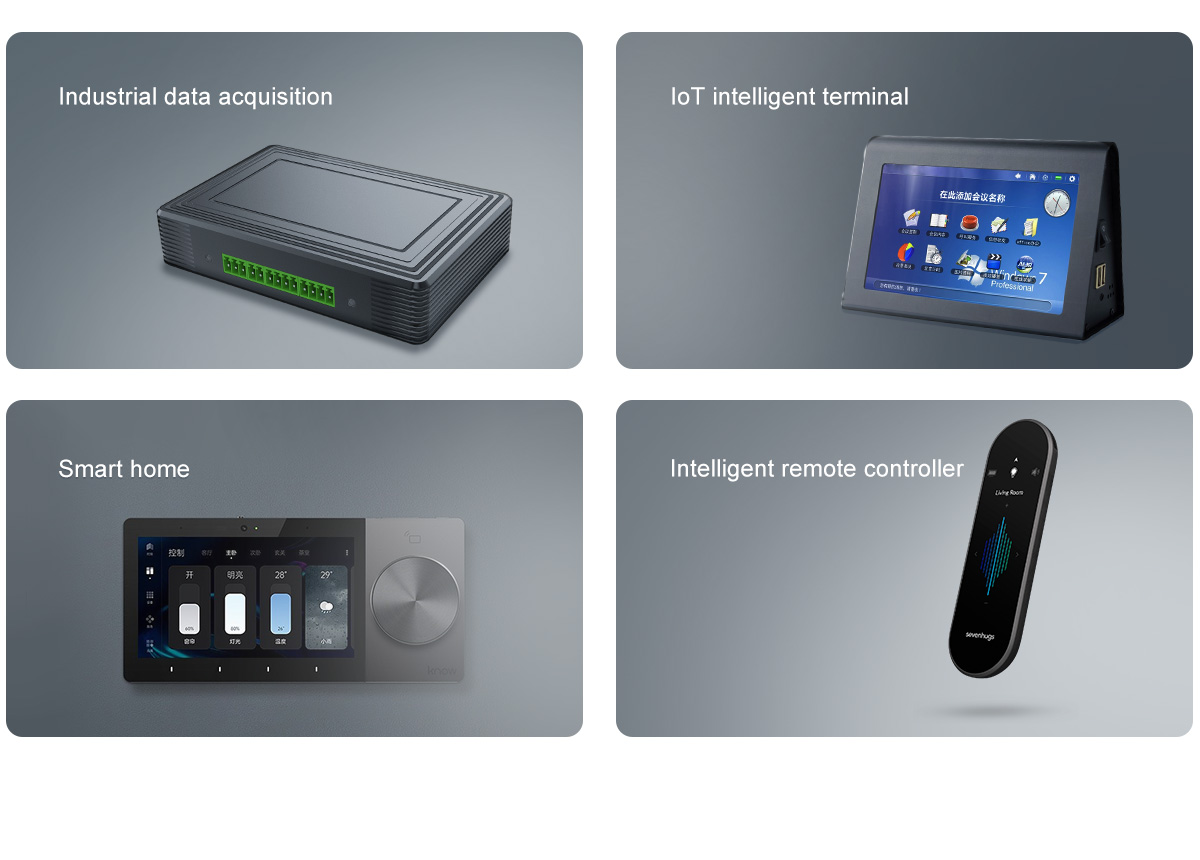

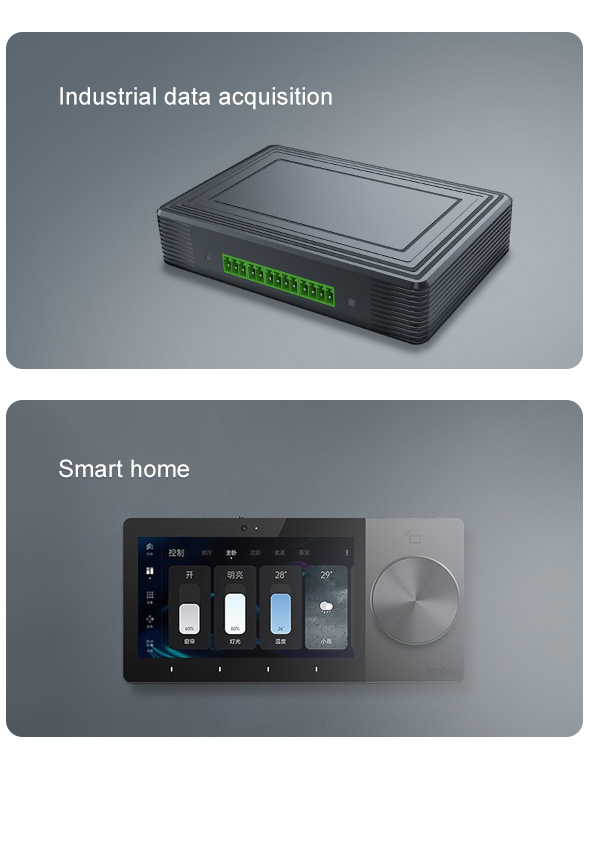

Typical application scenarios
