ZM5955 series industrial Wi-Fi+BLE module

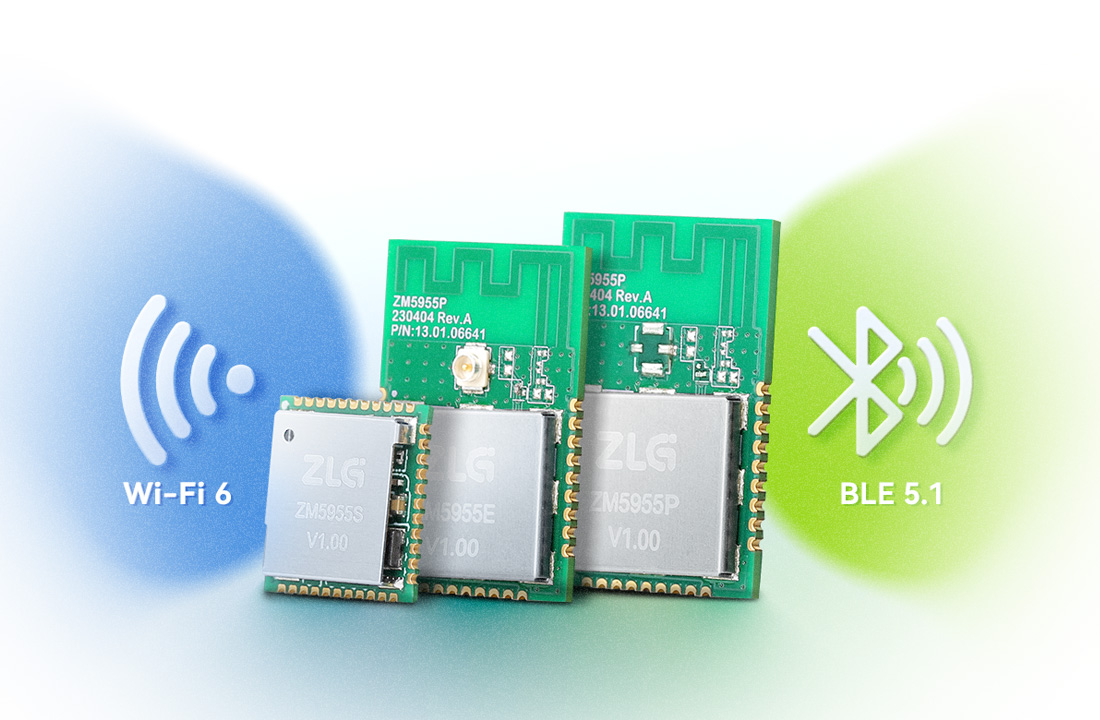

ZM5955 series transceiver Wi-Fi module is a high-performance and domestic Wi-Fi product developed by Zhiyuan Electronics. The product supports 2.4G Wi-Fi6 (802.11b/g/n/ax) of 1T1R and BLE 5.1 communication protocols, and simultaneous connection of two wireless protocols. The main function of the module is to transmit data transparently. It can support a physical layer rate of up to 195Mbit/s.
Selection Table
| Model | Product category | Wireless protocol | Working mode | Operating temperature | Package dimension/mm | RF output | Communication interface |
|---|---|---|---|---|---|---|---|
| ZM5955P | Transceiver Wi-Fi | WiFi 6 + BLE 5.1 | AP/STA | -40~+85℃ | 18.0x25.0x2.7 | PCB antenna | SDIO @Wi-Fi UART@BLE |
| ZM5955E | IPEX connector | ||||||
| ZM5955S | 12.0x12.0x2.1 | Stamp hole |
Usage block diagram
High-speed and stable communication, worry-free data transmission

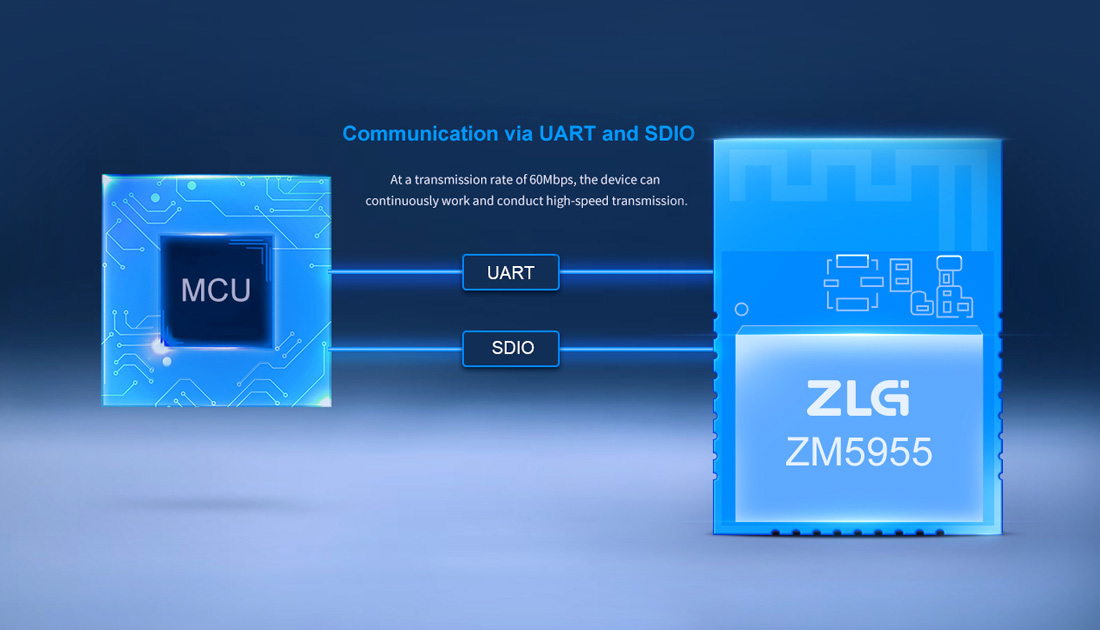

ZM5955 series Wi-Fi module communicates with the master control device via UART and SDIO, and the communication rate is high and stable. It can work continuously at a transmission rate of 60Mbps, helping customers develop their products at a high speed and go online stably.
Highly integrated and compact design

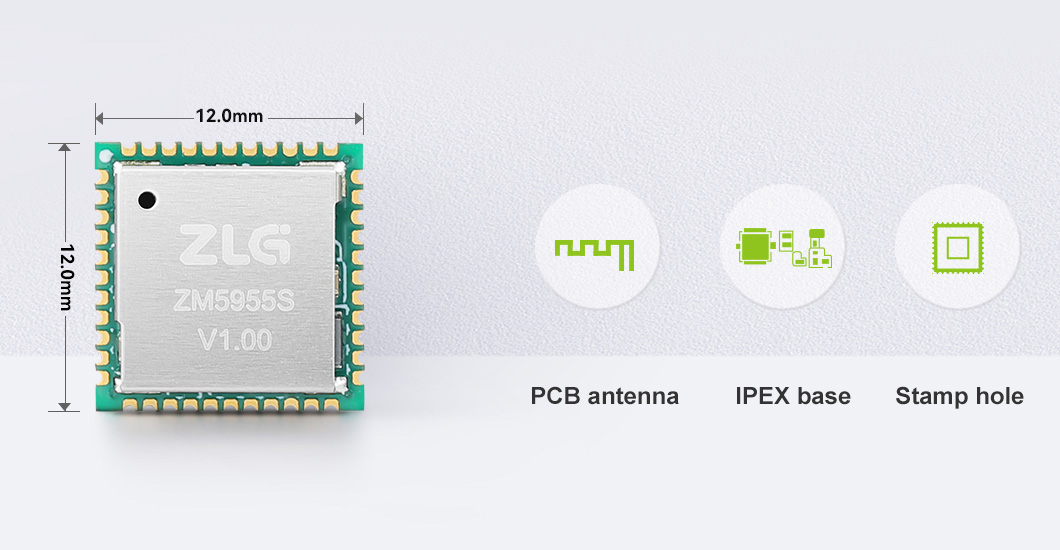

ZM5955 series Wi-Fi module integrates a complete RF transceiver circuit into a module, featuring high integration and small size. It has a variety of RF output forms such as PCB antenna, IPEX seat and stamp hole. The minimum size is only 12mm*12mm, which is very flexible in use and convenient for customers to choose according to their actual use requirements.
Quality at industrial grade

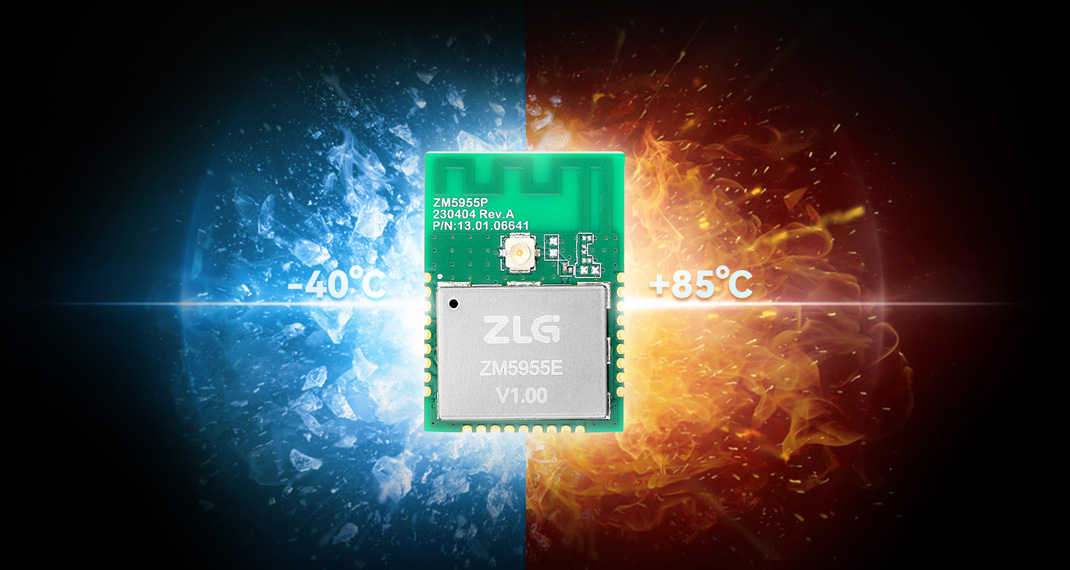

The quality at industrial grade promotes stable operation in a complex and harsh environment.
Strong driver compatibility

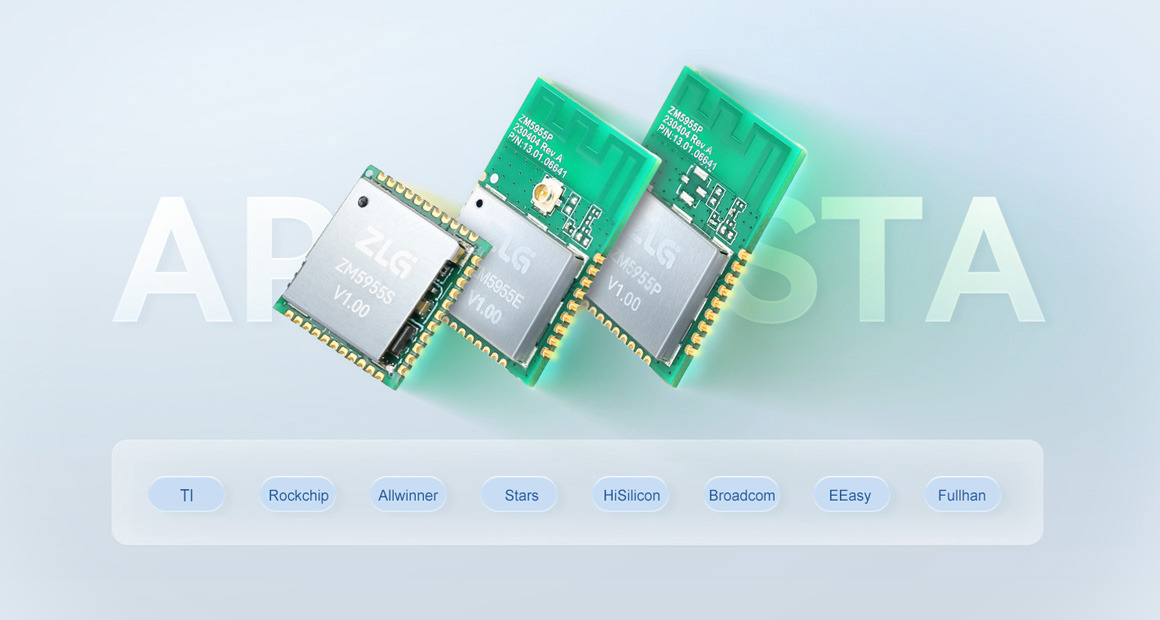

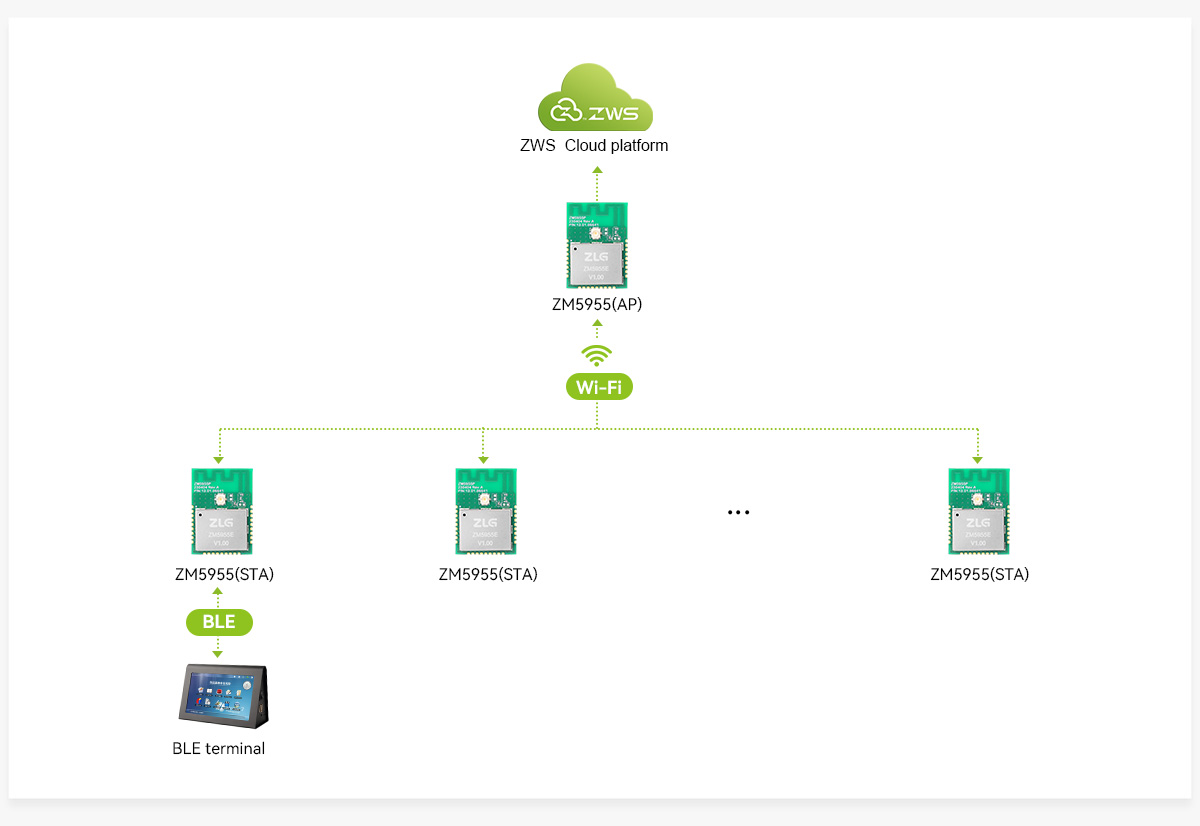

The product supports two working modes, namely AP and STA. 16 STAs can be connected in the AP mode. With strong driver compatibility, it has been adapted to the platforms such as TI, Rockchip, Allwinner, Stars, HiSilicon, Broadcom, EEasy and Fullhan.
Typical application scenarios
