1000M vehicle Ethernet converter
The development of automotive electronics has pushed the continuous increase of ECU in the vehicle and the increasing demand for bandwidth. Vehicle Ethernet will gradually become the backbone network of automobile bus.

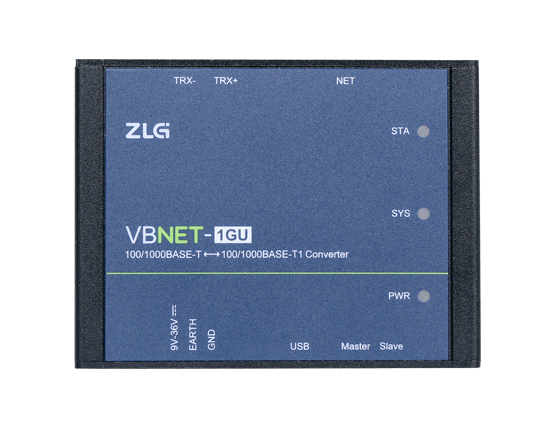

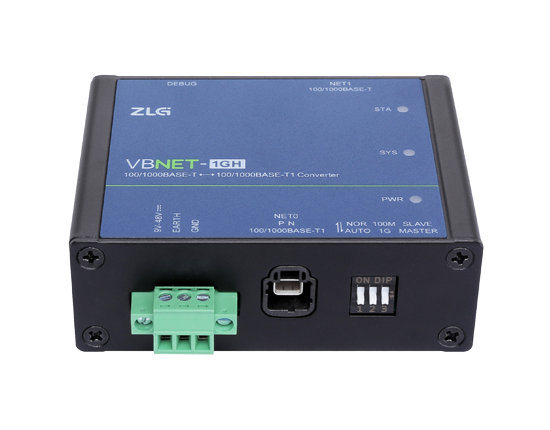

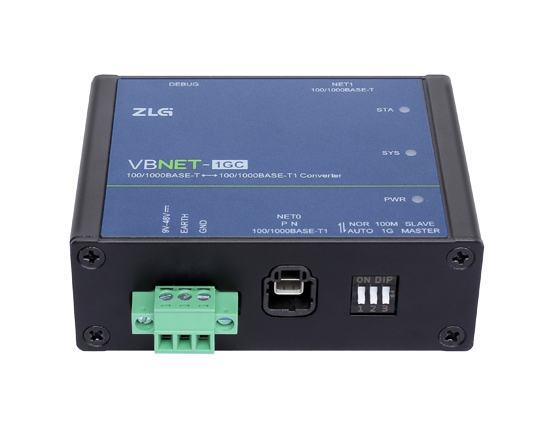

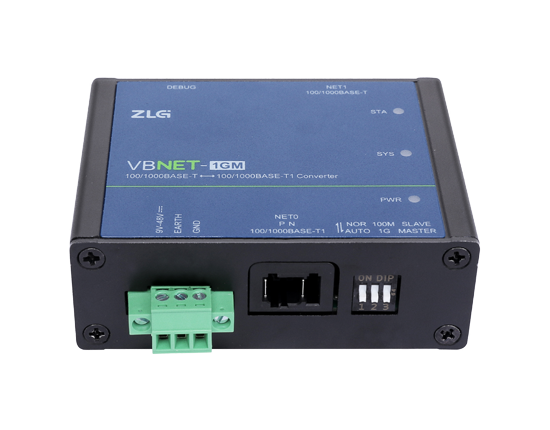

VBNET-1GU/M/C/H is an industrial-grade high-performance vehicle Ethernet converter developed by Guangzhou Zhiyuan Electronics Co., Ltd. It internally integrates a common 100M Ethernet interface and a 100/1000M vehicle dual-wire Ethernet interface that meets the OPEN Alliance BroadR-Reach specification. The device has an adaptive rate negotiation function and can operate within a temperature range of-40℃ to 85℃, supporting full-duplex physical layer conversion between ordinary Ethernet and vehicle Ethernet.
Selection Table
Please drag the table left or right for viewing.
| Model (compatible) | Electric Connector ECT -- Electric Connector ECT | Rosenberger h-MTD- Rosenberger H-MTD | TE MATEnet-- Rosenberger H-MTD | TE MATEnet - TE MATEnet | TE MATEnet-- Electric Connector ECT | |
|---|---|---|---|---|---|---|
| Picture |  |  |  |  |  | |
| Corresponding material number | 26.06.00379 | 26.06.00412 | 26.06.00413 | 26.06.00414 | 26.06.00415 | |
| Interface style | Female | |||||
| Length | 2m | |||||
| Operating temperature | -40~105°C | |||||
| Electric performance | Contact resistance (center pin) | 25mΩ Max | ||||
| Frequency | DC TO 1GHZ | |||||
| Impedance | 100+/-5Ω e500ps | |||||
| Return loss | ≤-23dB,DC TO 600MHz；≤-20dB,600MHz-1GHz | |||||
| Insulation resistance | ≥100MΩ | |||||
| Test voltage | 500V rms | |||||
| Operating voltage | 100V rms | |||||
| Electric current | ≤1.5A DC | |||||
| Mechanical performance | Durability | ≥25 times | ||||
| Insertion force | ≤75N | |||||
| Withdrawal force | ≥2N | |||||
| Shell retention force | ≥110N | |||||
One-stop vehicle Ethernet test and analysis solutions

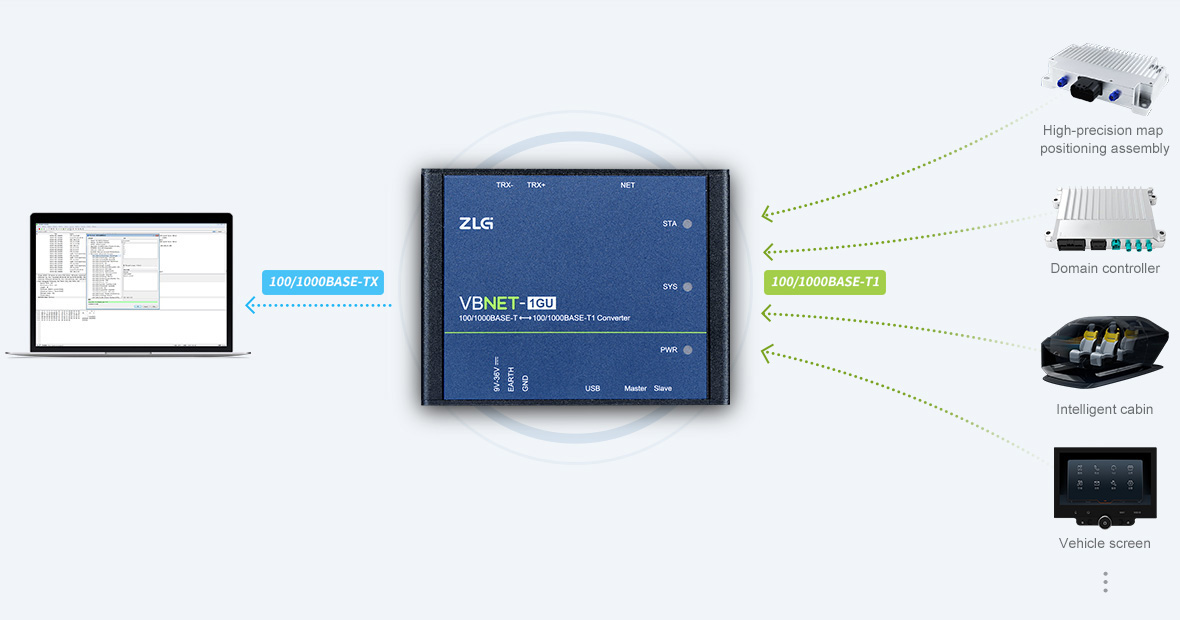

The single-channel hundred-megabit and gigabit vehicle Ethernet converter launched by ZLG Zhiyuan Electronics can realize the full-duplex physical layer conversion between 100/1000BASE-T1 and 100/1000BASE-TX.
Various types of vehicle interface forms, as per the requirements for selection

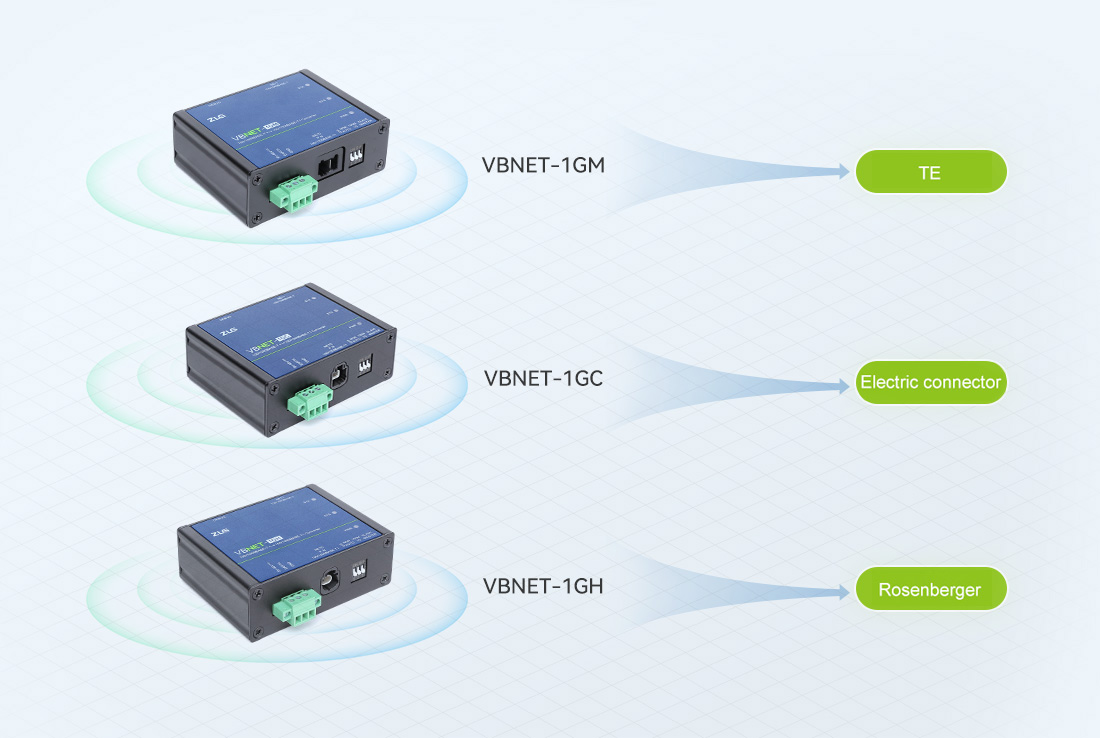

To meet market demands, the VBNET-1GX model, which is compatible with the interfaces of Tyco, Elintec and Rohsenberg, has been launched.

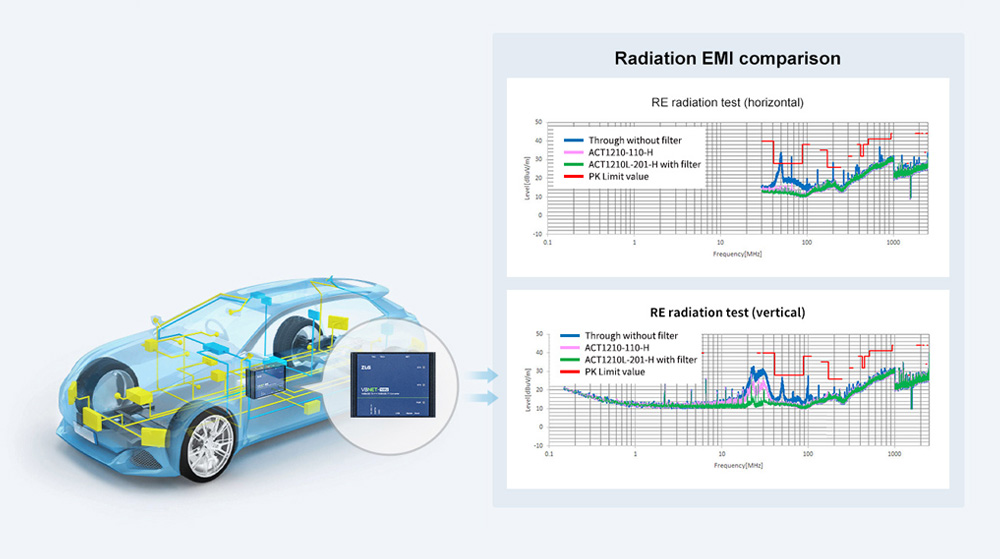

Built-in anti-interference filter adapts to any vehicle environment
The vehicle Ethernet interface has a built-in 100/1000BASE-T1 filter that meets the OPEN Alliances standard to ensure the stable and reliable operation of the in-vehicle network system.

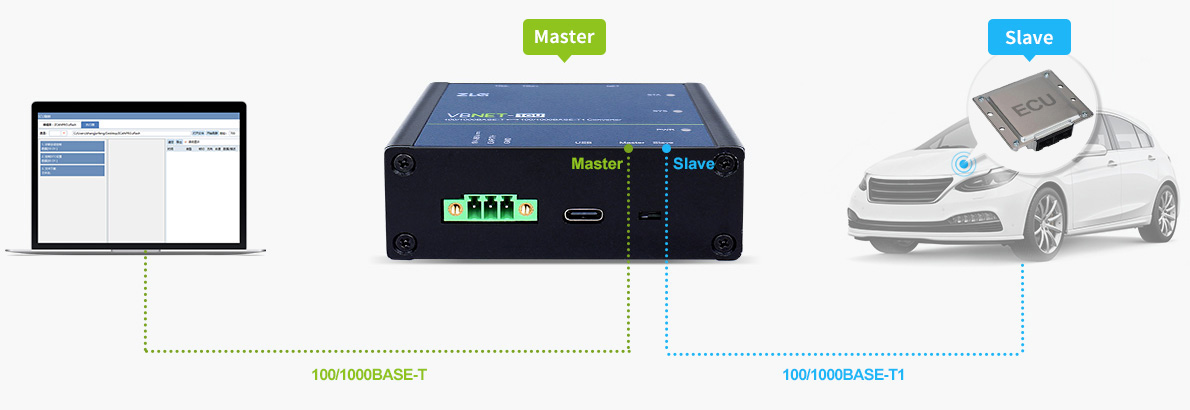

Support for adaptive/dial code switch configuration of Master/Slave mode

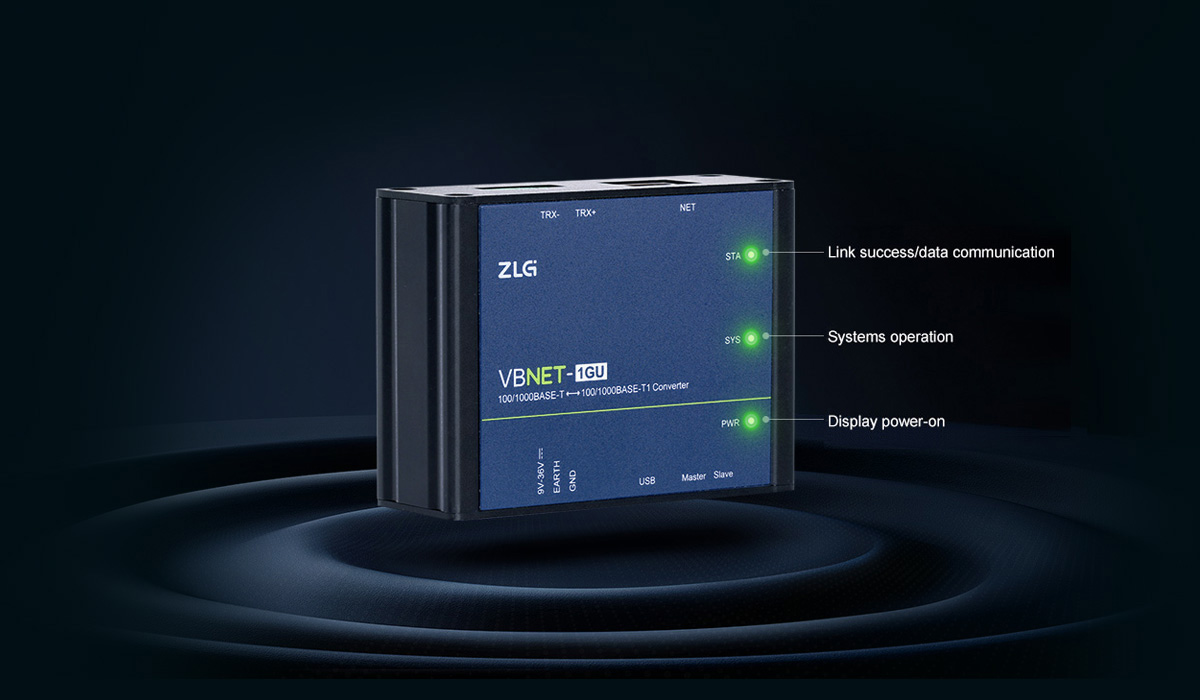

The single-channel vehicle Ethernet converter supports adaptive or DIP switch configuration of master-slave mode. Dialing to the silkscreen "Master" or "Slave" is the corresponding mode selection. The DIP switch configuration is software real-time configuration, and the DIP switch takes effect immediately in any running state when the device is powered on.
Small size and easy integration
The single-channel vehicle Ethernet converter product is small in size and easy to apply. Users can quickly connect the computer to the vehicle Ethernet network, and realize system-level ECU flushing.

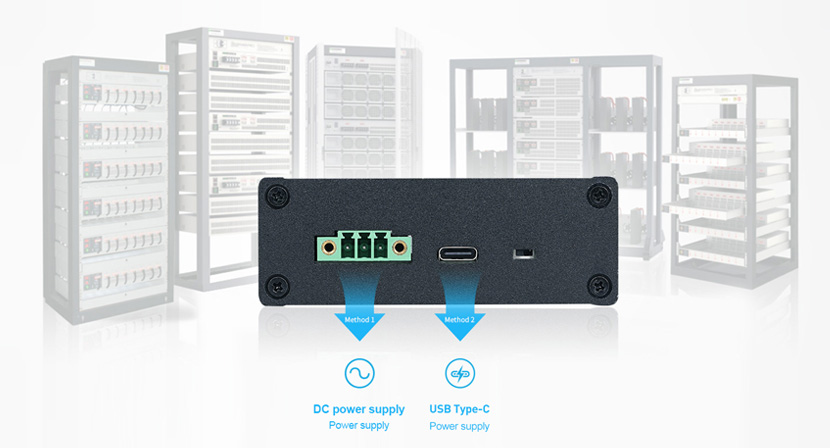

Type-C/wide-voltage DC power supply, flexible application of debugging integration
The device supports two power supply methods. One is through USB Type-C power supply, and the other is through DC power supply. Using one power supply method can make it work, or you can connect both the DC power supply and the USB cable simultaneously.
LED indicator lamp indicating the communication status of vehicle Ethernet
All products support LED light status indication, allowing you to easily grasp the Link and communication status of vehicle Ethernet.
Full scene application of vehicle Ethernet

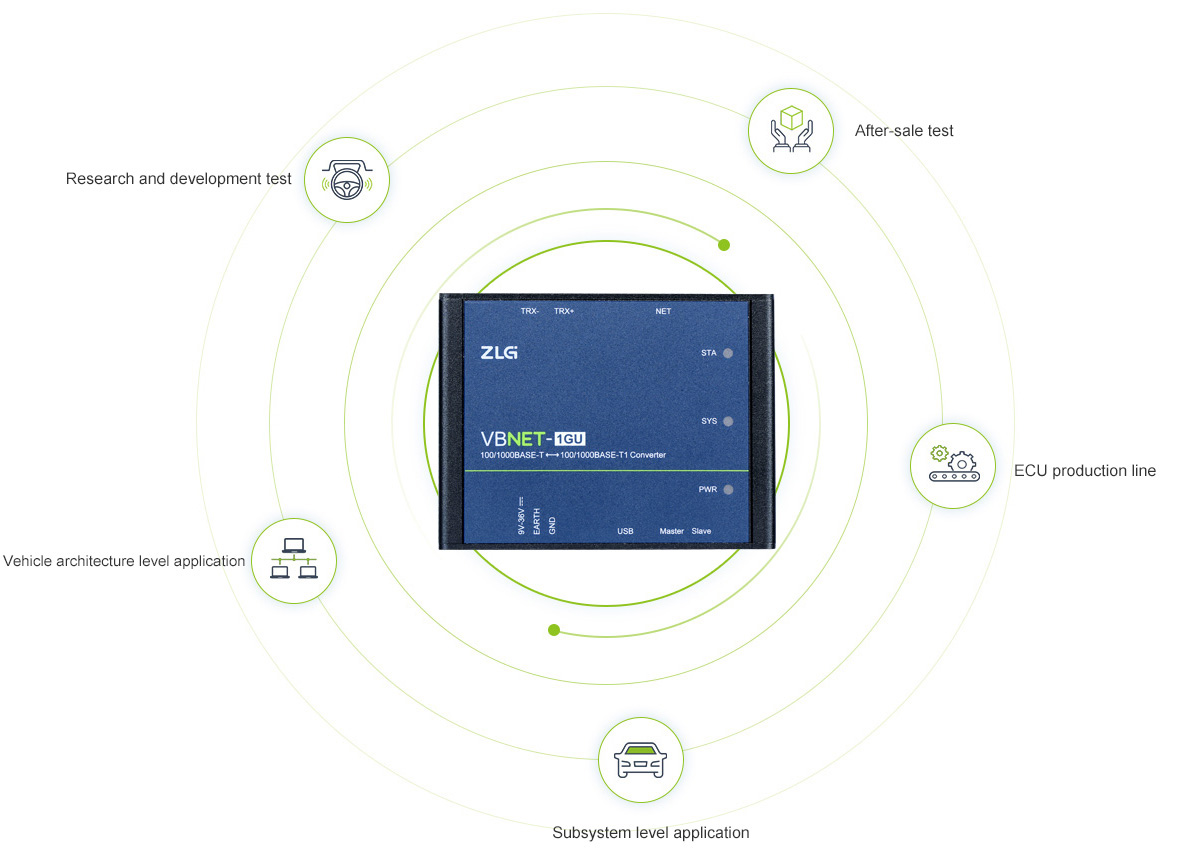

VBNET series products are suitable for R&D test, after-sales test, ECU production line, subsystem level application and vehicle architecture level application.
