Features

Single-channel VBNET series

• Support 9-48V wide voltage power supply, and meet the requirements of 12/24V system;
• Support Type-C interface (5V) power supply;
• Support 1-port vehicle Ethernet 100/1000BASE-T1, OPEN2/electric connector/TE/Rosenberger interface;
• Support 1-port standard Ethernet 100BASE-TX or 1000BASE-T, RJ45 interface;
• Support adaptive rate negotiation;
• Support DIP switch configuration and Master/Slave mode;
• Power consumption of the whole machine < 2W;
• Small size, convenient and portable: 84*63*30mm;
• Vehicle Ethernet network diagnosis, automobile electronic application, and big data communication.

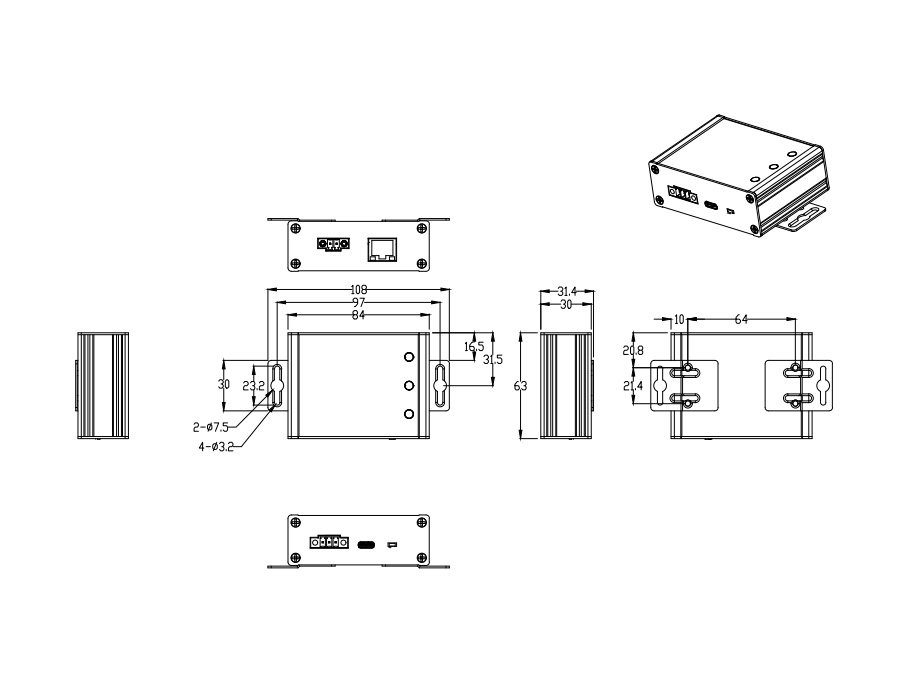

Dimensional drawing

Accessories list

The accessories list is for reference only. Please refer to the material object.
